Locus A.7J79.009
General Information
Locus Type:
Architecture
Supervisor:
D. Berge, J. Eggler
Designation:
N-S Wall in NE corner
Reason:
Possible wall line; establish connection to 7K70
Top Separation:
Very Clear
Bottom Separation:
Very Clear
Start Date:
15 Jul, 1996
End Date:
03 Jul, 2000
Interpretation
Function:
Poss E wall for LIR1 "storage area"
Stratigraphy remarks:
Contemp with storage jars in 1996
Balk:
E
Phase:
Stratum :
Architecture Description
Material
chert Qualifier 1:
None
chert Qualifier 2:
chert Qualifier 3:
chert Percent:
5
Limestone Qualifier 1:
Hard
Limestone Qualifier 2:
Limesotne Qualifier 3:
Limestone Percent:
95
basalt Qualifier 1:
basalt Qualifier 2:
basalt Qualifier 3:
basalt Percent:
0
nari Qualifier 1:
nari Qualifier 2:
nari Qualifier 3:
nari Percent:
0
mudbrick Qualifier 1:
mudbrick Qualifier 2:
mudbrick Qualifier 3:
mudbrick Percent:
Arch Frags:
0
Fragment Type:
Quarry:
Wall Stones
Cobble (6-25 cm) %:
5
Small Boulder (25-50cm) %:
Medium Boulder (50-75cm) %:
45
Large Boulder (75-100cm) %:
10
Very Large Boulder (>1 m) %:
0
Chinkstones
Pebble (.2-6 cm) %:
25
Cobble (6-25 cm) %:
75
Fillstones: (in Rubble-filled Construction)
Cobble (6-25 cm) %:
0
Small Boulder (25-50cm) %:
0
Medium Boulder (50-75cm) %:
0
Large Boulder (75-100cm) %:
0
Very Large Boulder (>1 m) %:
0
Brick
Length (upper):
0.0
Length (lower):
0.0
Width (upper):
0.0
Width (lower):
0.0
Depth (upper):
0.0
Depth (lower):
0.0
Dressing: (Stone Only)
Unhewn %:
90
Semi-hewn %:
Dressed %:
0
Ashlar %:
0
Bossed %:
0
Tooling (Stone Only)
Upper Width:
0.0
Lower Width:
0.0
Upper Length:
0.0
Lower Length:
0.0
Sketch:
false
Photo:
false
Mortar
Dry-laid %:
100
Clay %:
0
Mud %:
0
Cement %:
0
Plaster %:
0
Average Thickness:
0.0
Facing
Facing:
Unfaced
Color:
Construction
Style:
Boulder & Chink
Support:
Free-standing
Tendencies:
Courses
Highest Count:
5
Lowest Count:
1
Random:
false
Rows
Highest Count:
0
Lowest Count:
2
Two with Rubble:
Random:
false
Measurements
Greatest Length in meters:
5.8
Greatest width in meters:
0.88
Smallest width in meters:
0.8
Greatest Height in meters:
0
Lowest Height in meters:
23
Orientation (degrees):
29
Dip (degrees):
0
Preservation
Preservation:
Partial Superstructure: Little
Lean Direction (degrees):
0
Lean Degrees:
0
Top Foundation Level:
Remarks
Remarks:
Only 2 stones left in U2000
Levels
| Location | Top Level | Bottom Level |
|---|---|---|
| 5 | 914.09 | 0 |
| 11 | 913.14 | 912.88 |
| 17 | 0 | 913.01 |
| 22 | 913.29 | 0 |
| 22 | 0 | 913.05 |
| 30 | 0 | 913.04 |
| 30 | 0 | 912.89 |
| 34 | 913.69 | 0 |
Stratigraphy
| Over | Earth layer | A7J79:016 |
| Equals | Wall | A7J79:023 |
| FT | FT | A7J79:020 |
| Sealed agnst by | Earth layer | A7J79:019 |
| Over | Wall | A7J79:025 |
| Over | Earth layer | A7J79:029 |
| Under | Earth layer | A7J79:005 |
| Under | Earth layer | A7J79:008 |
| Abutted by | Wall | A7J79:010 |
| Sealed agnst by | Earth layer | A7J79:005 |
| Sealed agnst by | Earth layer | A7J79:008 |
| Under | Earth layer | A7J79:011 |
| Cut by | Pit | A7J79:004 |
Pails
| Number | Date | Baskets | Total | Diagnostic | Published |
|---|
Photos
| Date | Photo Number | Subject | Photo |
|---|---|---|---|

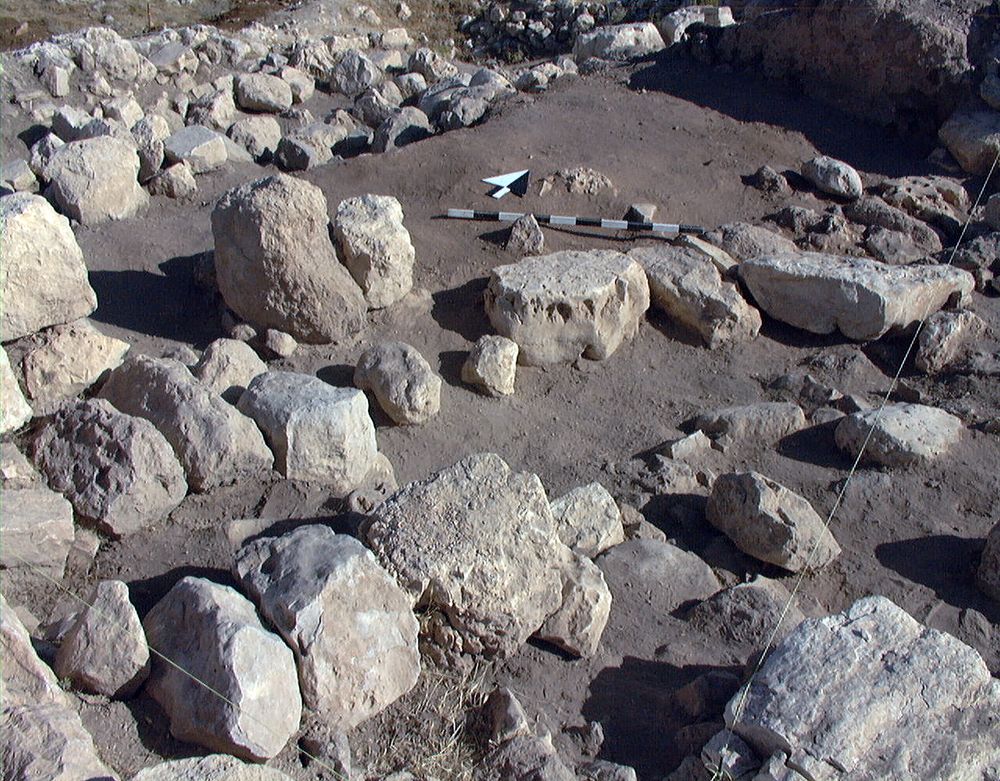

| 27 Jun, 2000 | 98A79022 | Progress |
|
| 06 Jul, 1998 | 98A79101 | FT for Wall 9 |
|
| 06 Jul, 1998 | 98A79089 | Progress |
|
| 02 Jul, 1998 | 98A79069 | Progress |
|

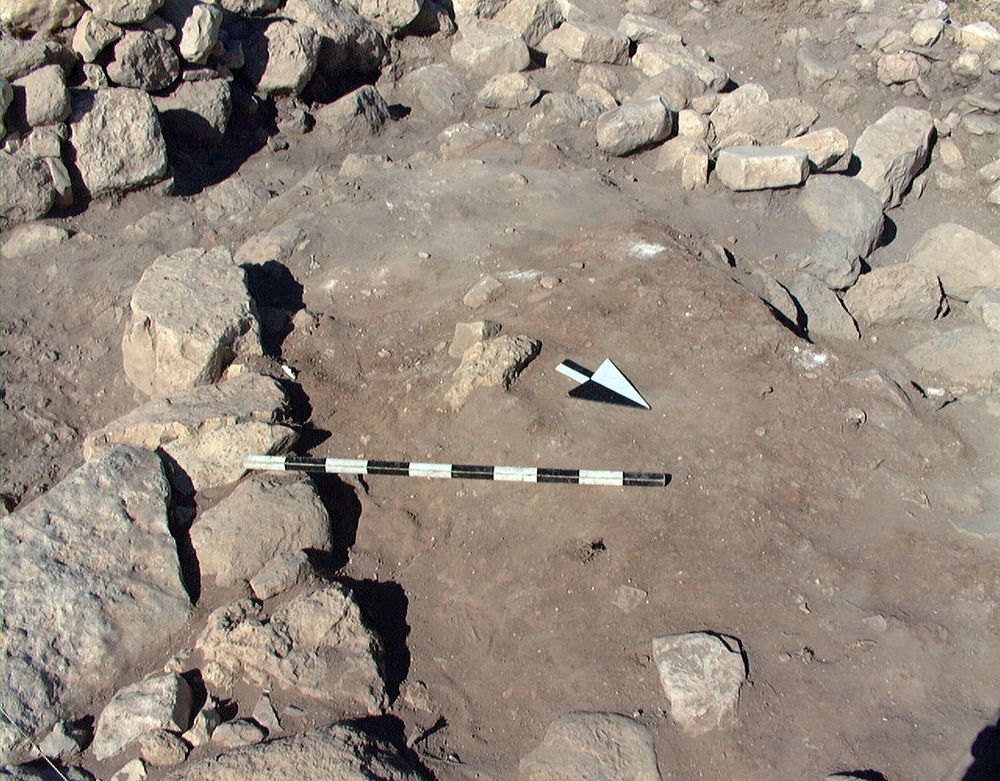

| 01 Jul, 1998 | 98A79054 | Progress |
|
| 30 Jun, 1998 | 98A79029 | Progress |
|

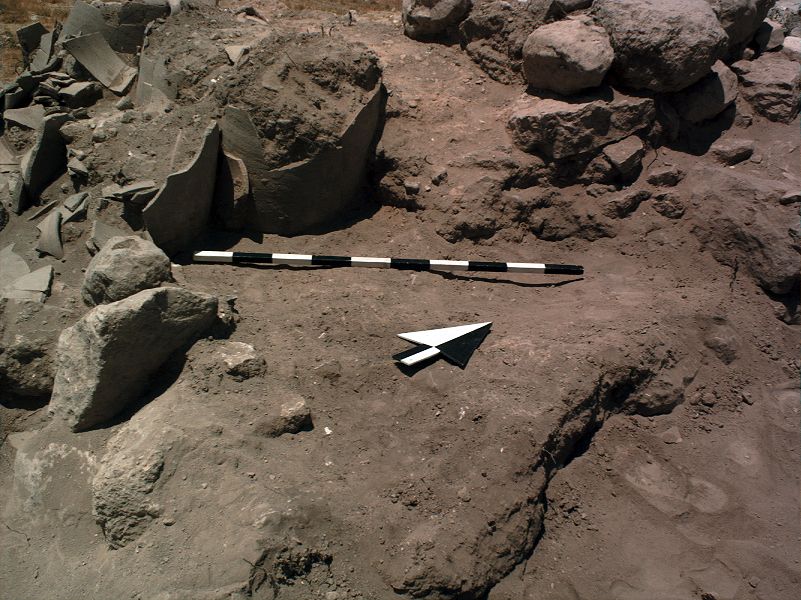

| 15 Jul, 1996 | 96A79113 | Progress |
|

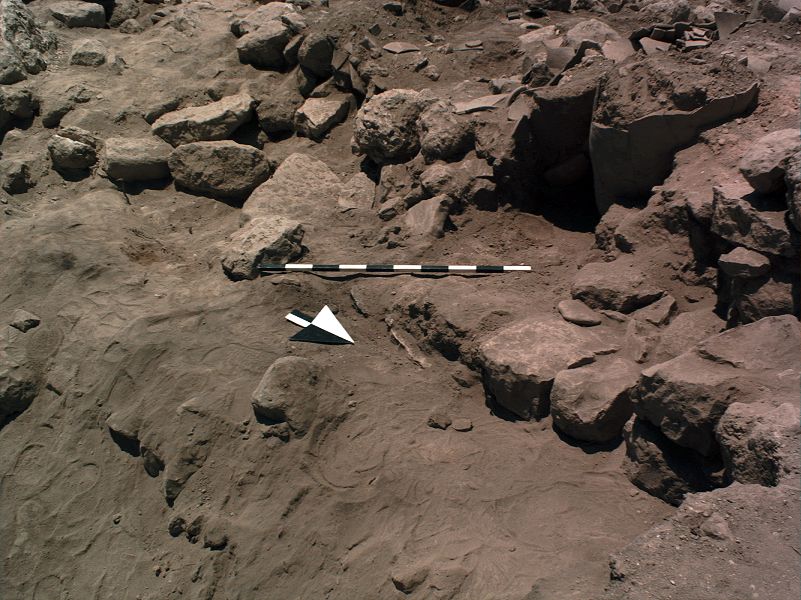

| 16 Jul, 1996 | 96A79114 | Progress |
|

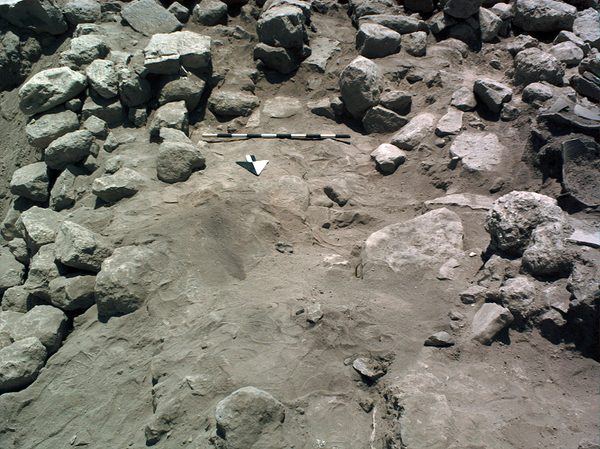

| 18 Jul, 1996 | 96A79116 | Progress |
|

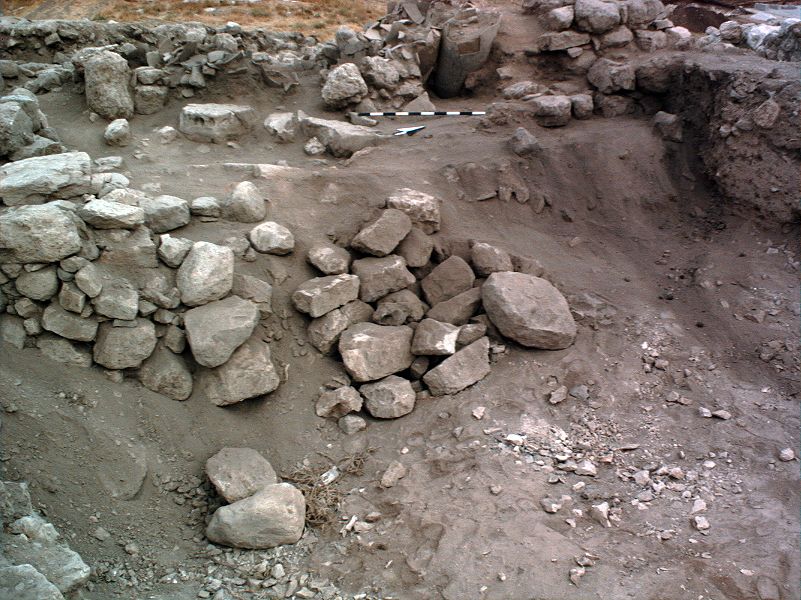

| 23 Jul, 1996 | 96A79119 | EIR2 storejars in situ |
|

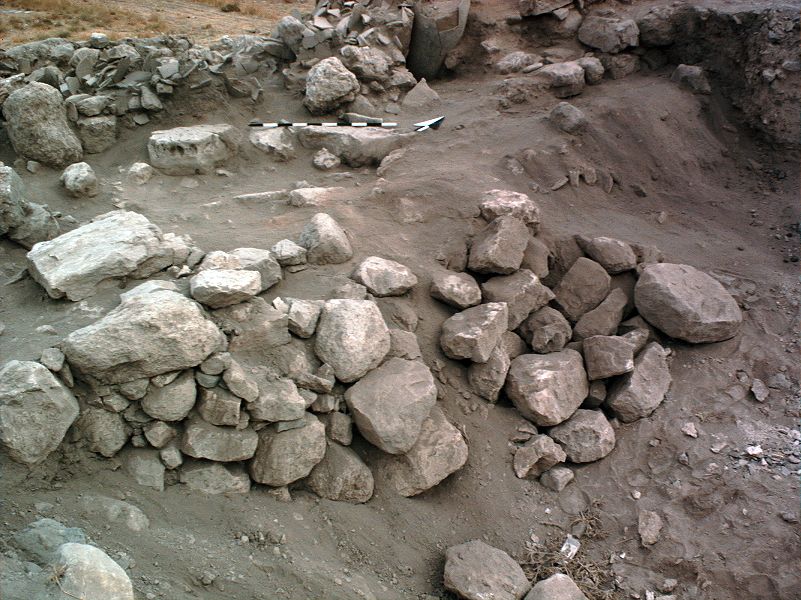

| 23 Jul, 1996 | 96A79120 | EIR2 storejars in situ |
|
| 30 Jul, 1996 | 96A69062 | Final |
|

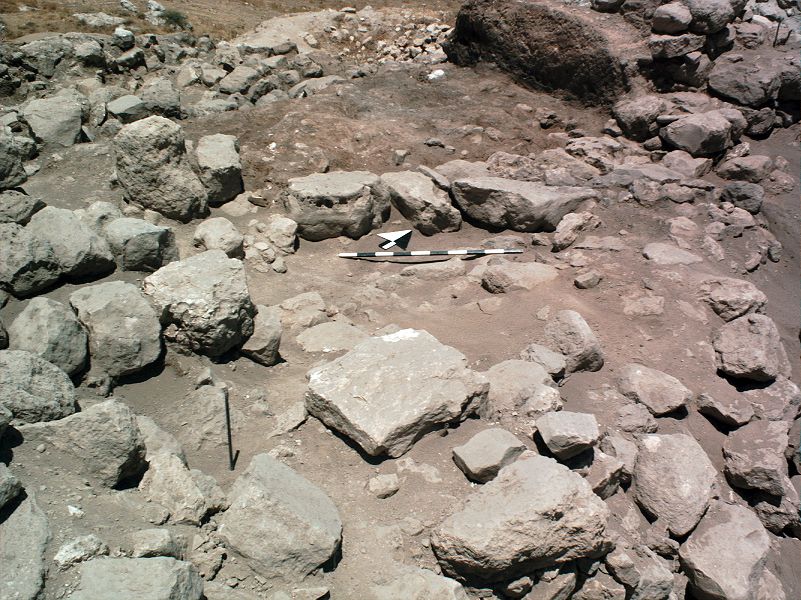

| 29 Jul, 1996 | 96A79128 | Final |
|
