Locus L.6K97.002

Architecture · E-W wall

General Information

Locus Type Architecture
Supervisor M. Rose
Designation E-W wall
Reason Stones in a line
Top Separation
Bottom Separation
Start Date 14 July, 2008
End Date 29 July, 2008

Interpretation

Function Stone wall, perhaps an agriculture wall in its latest use
Stratigraphy remarks Latest architecture in the square
Balk
Phase
Stratum

Architecture Description

Material

chert Qualifier 1:

chert Qualifier 2:

chert Qualifier 3:

chert Percent:

0

Limestone Qualifier 1:

Soft

Limestone Qualifier 2:

Limesotne Qualifier 3:

Limestone Percent:

100

basalt Qualifier 1:

basalt Qualifier 2:

basalt Qualifier 3:

basalt Percent:

0

nari Qualifier 1:

nari Qualifier 2:

nari Qualifier 3:

nari Percent:

0

mudbrick Qualifier 1:

mudbrick Qualifier 2:

mudbrick Qualifier 3:

mudbrick Percent:

Arch Frags:

0

Fragment Type:

Quarry:

Wall Stones

Cobble (6-25 cm) %:

0

Small Boulder (25-50cm) %:

Medium Boulder (50-75cm) %:

50

Large Boulder (75-100cm) %:

50

Very Large Boulder (>1 m) %:

0

Chinkstones

Pebble (.2-6 cm) %:

0

Cobble (6-25 cm) %:

50

Fillstones: (in Rubble-filled Construction)

Cobble (6-25 cm) %:

0

Small Boulder (25-50cm) %:

0

Medium Boulder (50-75cm) %:

0

Large Boulder (75-100cm) %:

0

Very Large Boulder (>1 m) %:

0

Brick

Length (upper):

0.0

Length (lower):

0.0

Width (upper):

0.0

Width (lower):

0.0

Depth (upper):

0.0

Depth (lower):

0.0

Dressing: (Stone Only)

Unhewn %:

0

Semi-hewn %:

Dressed %:

0

Ashlar %:

0

Bossed %:

0

Tooling (Stone Only)

Upper Width:

0.0

Lower Width:

0.0

Upper Length:

0.0

Lower Length:

0.0

Sketch:

false

Photo:

false

Mortar

Dry-laid %:

100

Clay %:

0

Mud %:

0

Cement %:

0

Plaster %:

0

Average Thickness:

0.0

Facing

Facing:

Unfaced

Color:

Construction

Style:

Boulder & Chink

Support:

Free-standing

Tendencies:

Courses

Highest Count:

0

Lowest Count:

2

Random:

false

Rows

Highest Count:

0

Lowest Count:

1

Two with Rubble:

Random:

false

Measurements

Greatest Length in meters:

3

Greatest width in meters:

1.22

Smallest width in meters:

1.15

Greatest Height in meters:

1.12

Lowest Height in meters:

0.37

Orientation (degrees):

116

Dip (degrees):

0

Preservation

Preservation:

Partial Superstructure: Little

Lean Direction (degrees):

0

Lean Degrees:

0

Top Foundation Level:

0.0

Remarks

Remarks:

Began above topsoil level; may be in two phases; the top phase had large unhewn boulders, the bottom had small semi-hewn boulders

Levels

Location Top Level Bottom Level
21 911.41 911.33

Stratigraphy

Relationship Related to Related locus
Sealed agnst by Earth layer L6K97:001
Sealed agnst by Earth layer L6K97:003
Sealed agnst by Earth layer L6K97:004
Sealed agnst by Surface L6K97:007

Pails

Number Date Baskets Total Diagnostic Published

Photos

Date Photo Number Subject Photo

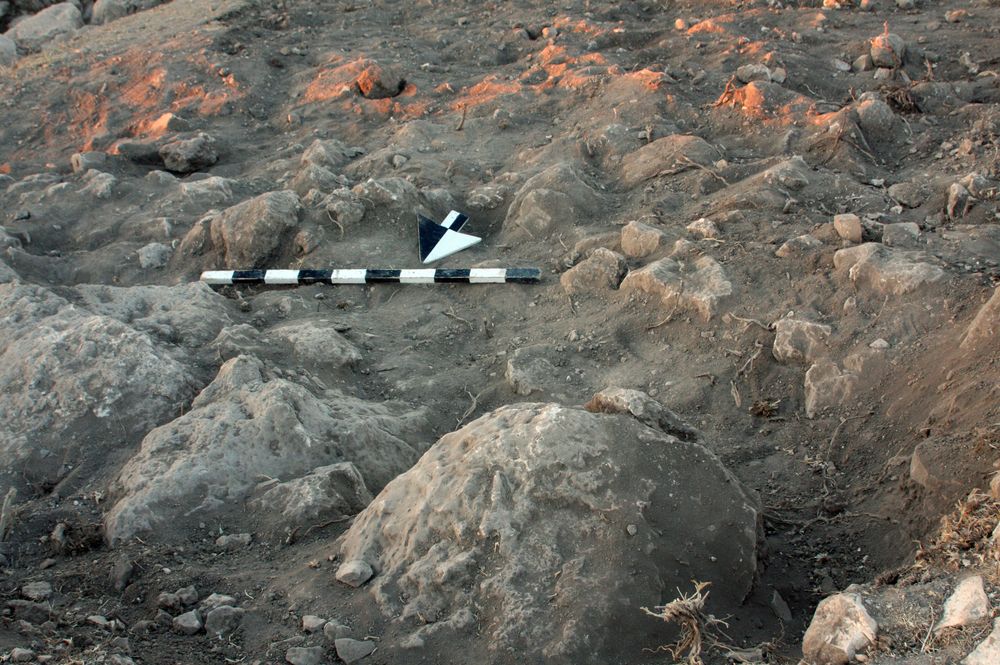

11 July, 2008 08L97252 Progress

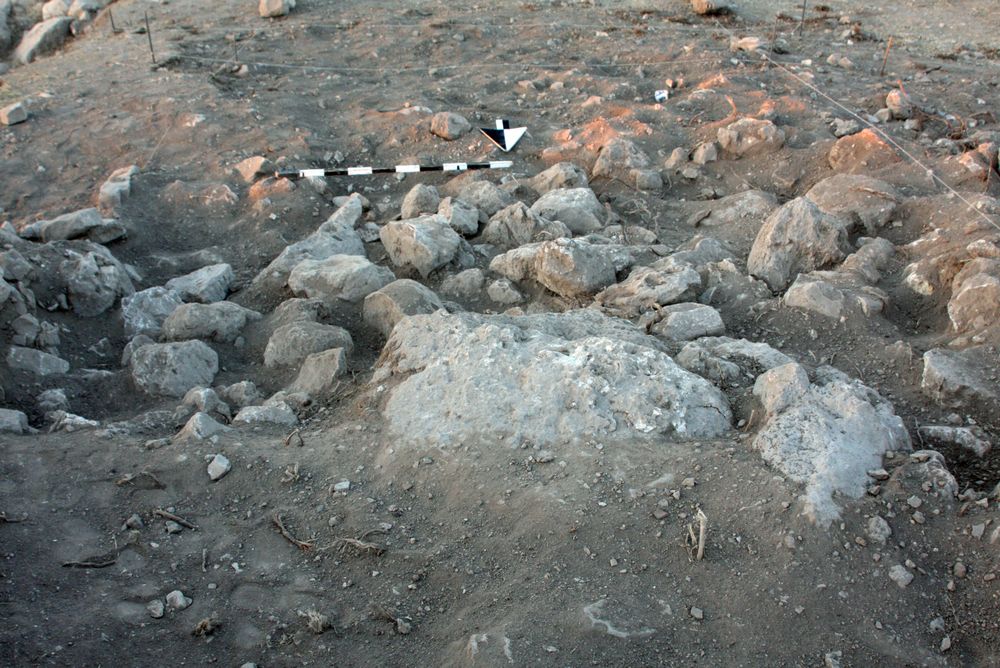

14 July, 2008 08L97277 Progress

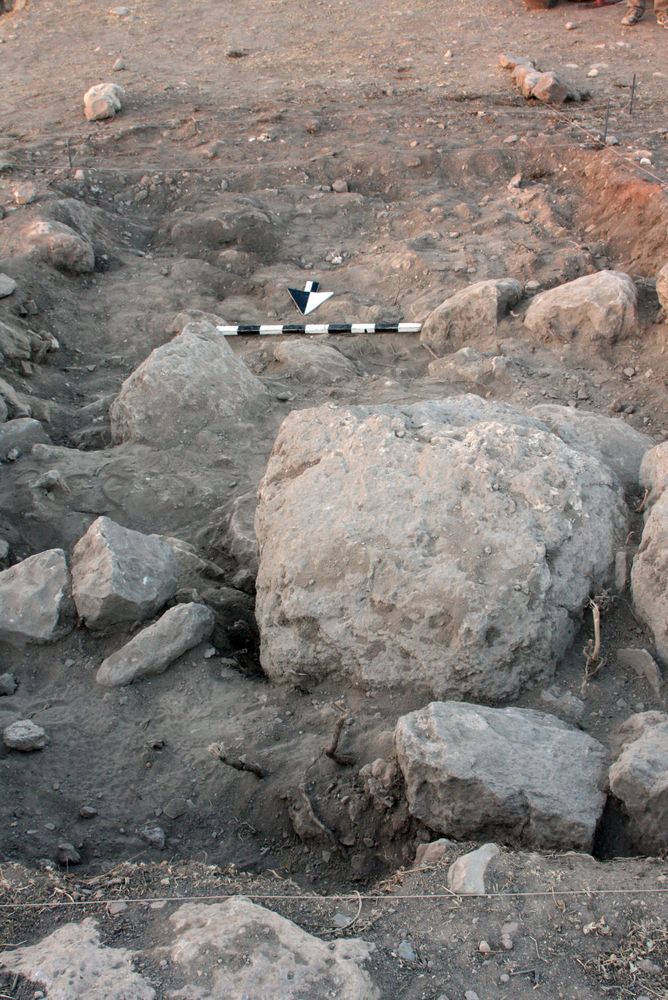

15 July, 2008 08L97303 Progress
16 July, 2008 08L97332 Progress

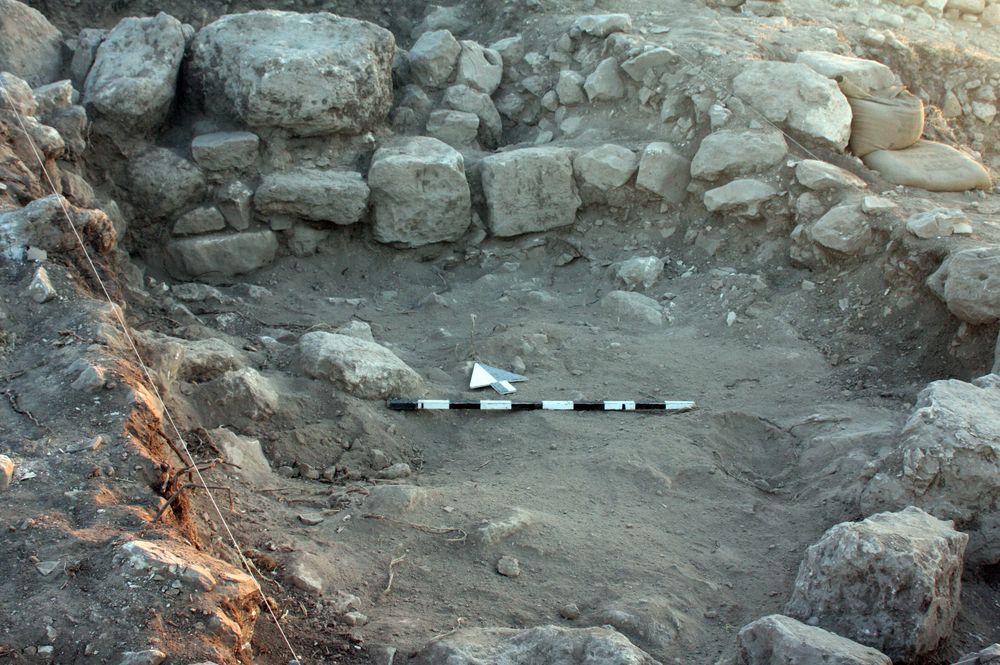

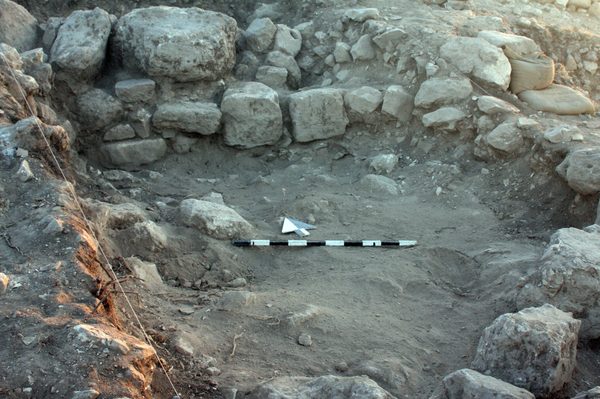

17 July, 2008 08L97355 Progress

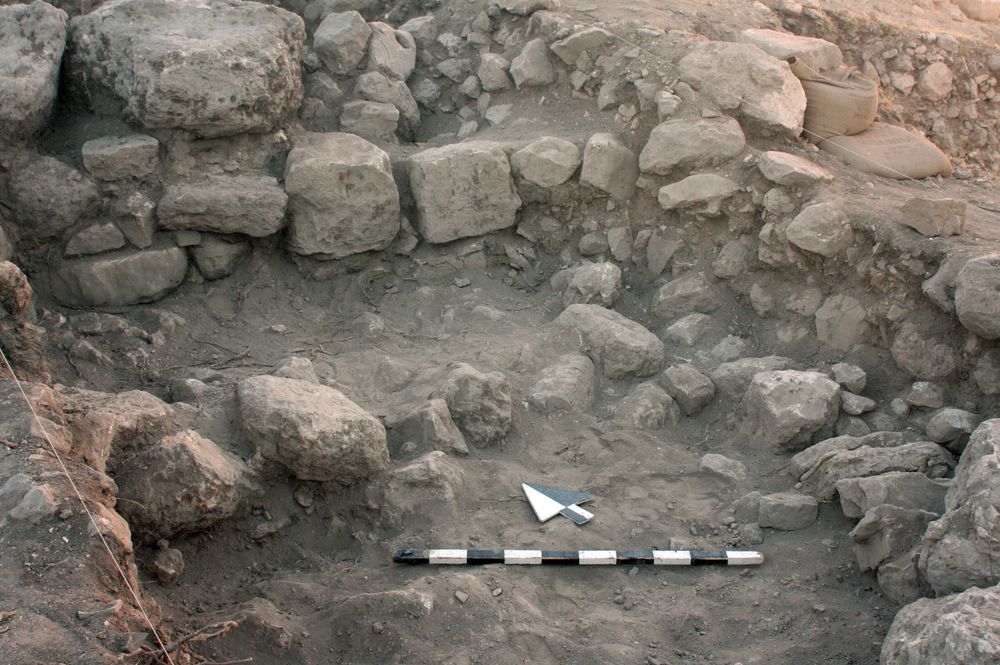

18 July, 2008 08L97380 Progress

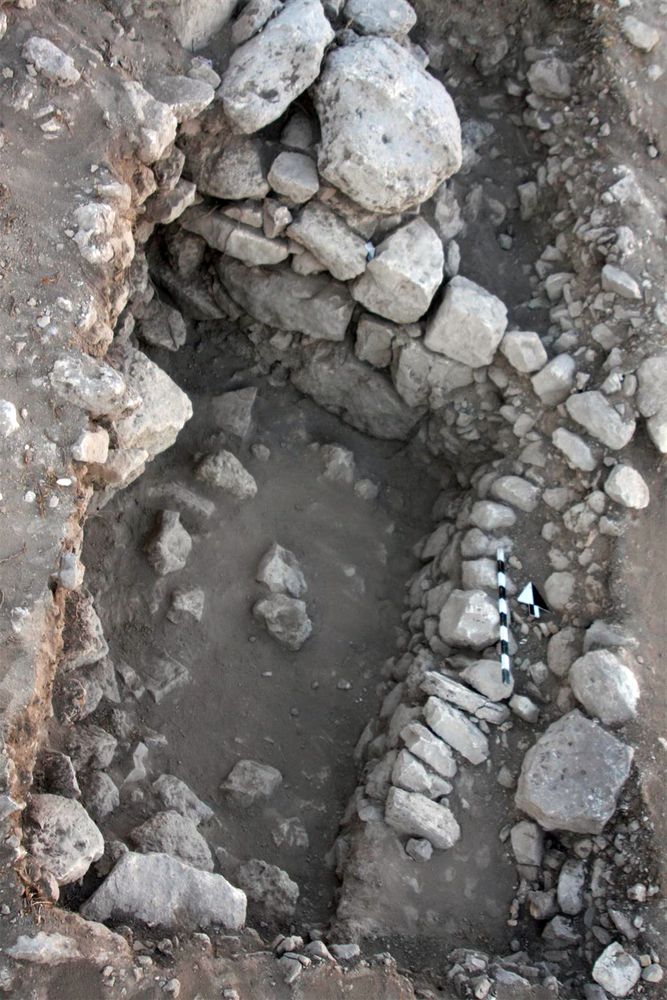

30 July, 2008 08L97648 Final

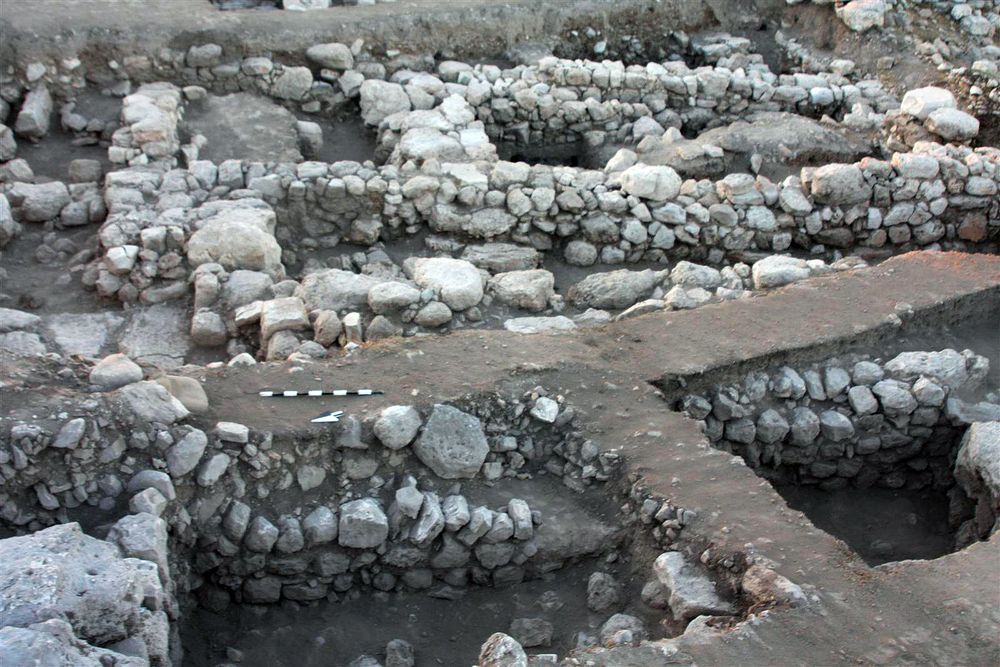

30 July, 2008 08L97649 Final: Field L
