Locus L.6K89.021
General Information
Locus Type:
Architecture
Supervisor:
F. Zollman
Designation:
N-S Wall going into N balk
Reason:
3 large rocks stacked on top of each other
Top Separation:
Bottom Separation:
Start Date:
23 Jul, 2002
End Date:
30 Jul, 2004
Interpretation
Function:
Poss door jamb in N-S wall just coming into the square from the N balk
Stratigraphy remarks:
Earlier than L 12,14,20
Balk:
Phase:
Stratum :
Architecture Description
Material
chert Qualifier 1:
chert Qualifier 2:
chert Qualifier 3:
chert Percent:
0
Limestone Qualifier 1:
Hard
Limestone Qualifier 2:
Limesotne Qualifier 3:
Limestone Percent:
100
basalt Qualifier 1:
basalt Qualifier 2:
basalt Qualifier 3:
basalt Percent:
0
nari Qualifier 1:
nari Qualifier 2:
nari Qualifier 3:
nari Percent:
0
mudbrick Qualifier 1:
mudbrick Qualifier 2:
mudbrick Qualifier 3:
mudbrick Percent:
Arch Frags:
0
Fragment Type:
Quarry:
Wall Stones
Cobble (6-25 cm) %:
0
Small Boulder (25-50cm) %:
Medium Boulder (50-75cm) %:
0
Large Boulder (75-100cm) %:
100
Very Large Boulder (>1 m) %:
0
Chinkstones
Pebble (.2-6 cm) %:
0
Cobble (6-25 cm) %:
100
Fillstones: (in Rubble-filled Construction)
Cobble (6-25 cm) %:
0
Small Boulder (25-50cm) %:
0
Medium Boulder (50-75cm) %:
0
Large Boulder (75-100cm) %:
0
Very Large Boulder (>1 m) %:
0
Brick
Length (upper):
0.0
Length (lower):
0.0
Width (upper):
0.0
Width (lower):
0.0
Depth (upper):
0.0
Depth (lower):
0.0
Dressing: (Stone Only)
Unhewn %:
50
Semi-hewn %:
Dressed %:
0
Ashlar %:
0
Bossed %:
0
Tooling (Stone Only)
Upper Width:
0.0
Lower Width:
0.0
Upper Length:
0.0
Lower Length:
0.0
Sketch:
false
Photo:
false
Mortar
Dry-laid %:
100
Clay %:
0
Mud %:
0
Cement %:
0
Plaster %:
0
Average Thickness:
0.0
Facing
Facing:
Unfaced
Color:
Construction
Style:
Boulder & Chink
Support:
Free-standing
Tendencies:
Courses
Highest Count:
0
Lowest Count:
3
Random:
false
Rows
Highest Count:
0
Lowest Count:
1
Two with Rubble:
Random:
false
Measurements
Greatest Length in meters:
0.75
Greatest width in meters:
0
Smallest width in meters:
0.5
Greatest Height in meters:
20
Lowest Height in meters:
0.85
Orientation (degrees):
0
Dip (degrees):
0
Preservation
Preservation:
Partial Superstructure: Little
Lean Direction (degrees):
0
Lean Degrees:
0
Top Foundation Level:
0.0
Remarks
Remarks:
Bottom not reached in U02
Levels
| Location | Top Level | Bottom Level |
|---|---|---|
| 9 | 910.59 | 909.74 |
Stratigraphy
| Under | Earth layer | L6K89:012 |
| Sealed agnst by | Earth layer | L6K89:012 |
| Sealed agnst by | Earth layer | L6K89:014 |
| Sealed agnst by | Earth layer | L6K89:020 |
| Under | Earth layer | L6K89:006 |
| Abutted by | Other | L6K89:046 |
| Sealed agnst by | Earth layer | L6K89:048 |
| Sealed agnst by | Earth layer | L6K89:49 |
| Abutted by | Wall | L6K89:050 |
| Sealed agnst by | Earth layer | L6K89:056 |
Pails
| Number | Date | Baskets | Total | Diagnostic | Published |
|---|
Photos
| Date | Photo Number | Subject | Photo |
|---|---|---|---|
| 17 Jul, 2002 | 02L89208 | Progress |
|
| 18 Jul, 2002 | 02L89219 | Progress |
|

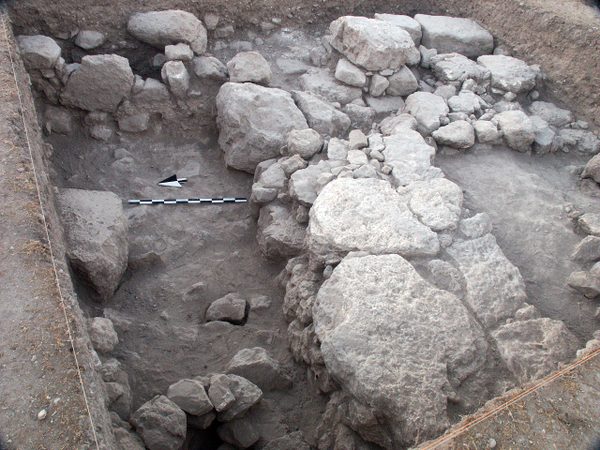

| 22 Jul, 2002 | 02L89254 | Progress |
|
| 19 Jul, 2002 | 02L89230 | Progress |
|
| 22 Jul, 2002 | 02L89243 | Progress |
|

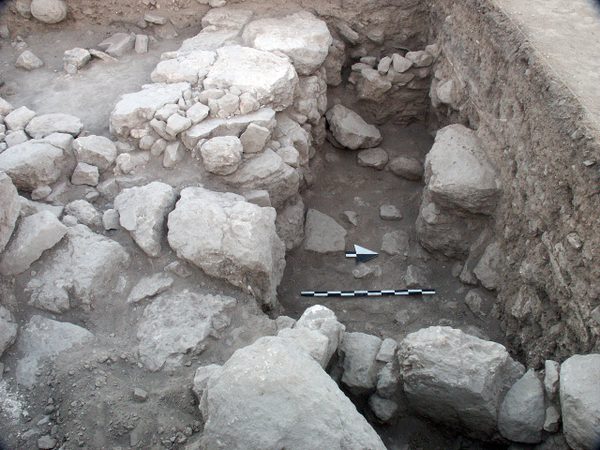

| 24 Jul, 2002 | 02L89267 | Progress |
|

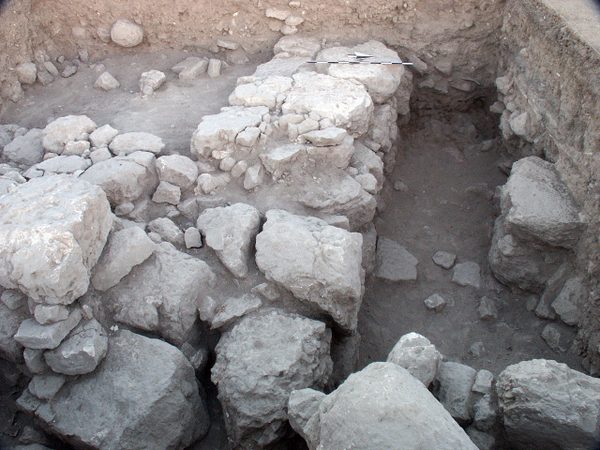

| 26 Jul, 2002 | 02L89294 | Progress |
|

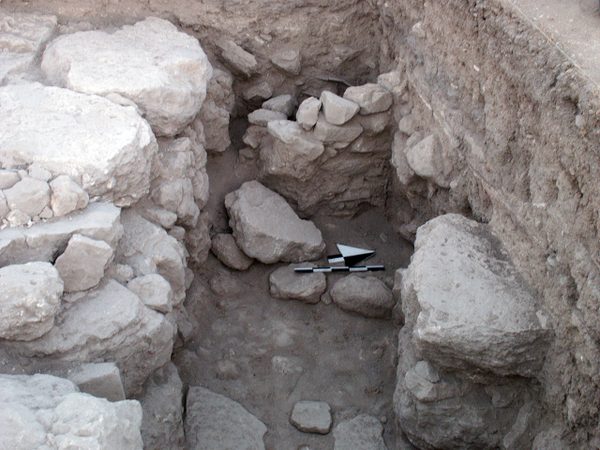

| 25 Jul, 2002 | 02L89280 | Progress |
|

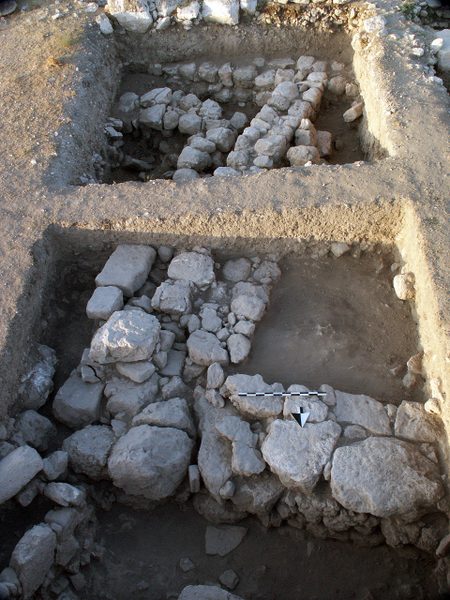

| 29 Jul, 2002 | 02L89310 | Final from N |
|

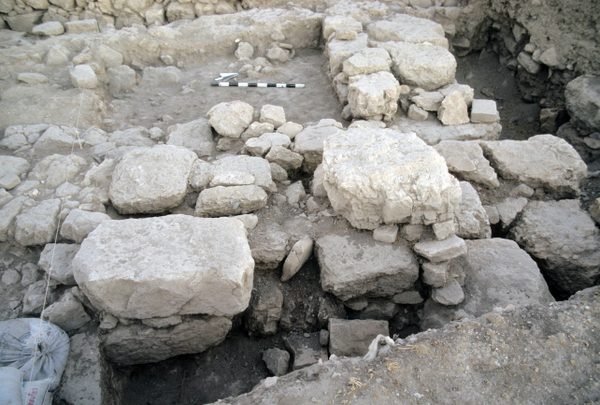

| 12 Jul, 2004 | 04L89145 | Progress |
|

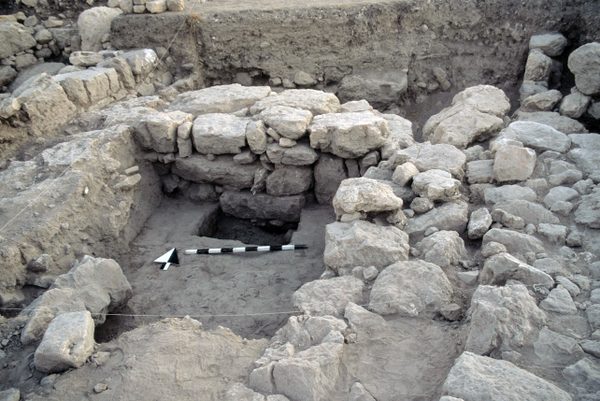

| 20 Jul, 2004 | 04L89219 | Progress |
|
| 30 Jul, 2004 | 04L89364 | Final from E |
|

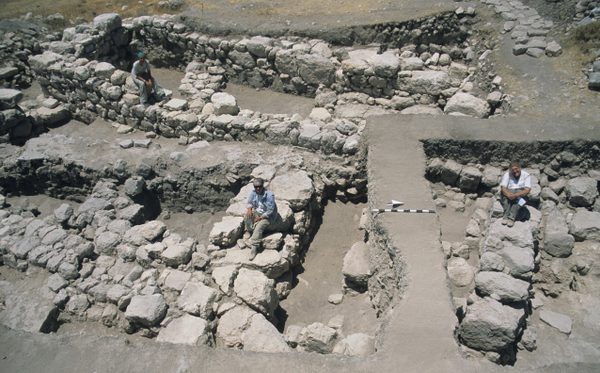

| 30 Jul, 2004 | 04L89365 | Final from E |
|
| 15 Jul, 2004 | 04L89183 | Progress |
|

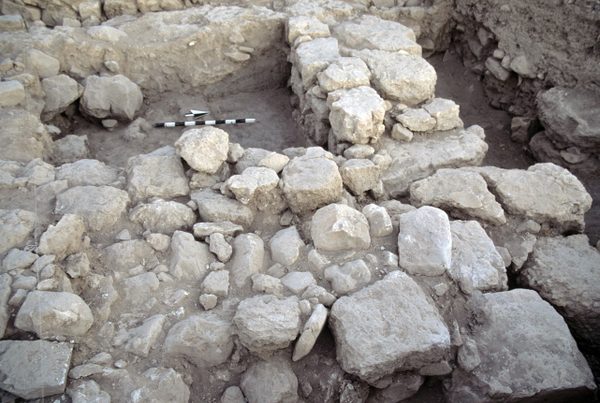

| 19 Jul, 2004 | 04L89206 | Progress |
|
| 15 Jul, 2012 | 12L89025 | PROGRESS |
|
| 12 Jul, 2012 | 12L89038 | PROGRESS |
|
| 13 Jul, 2012 | 12L89071 | PROGRESS |
|
| 13 Jul, 2012 | 12L98051 | PROGRESS |
|

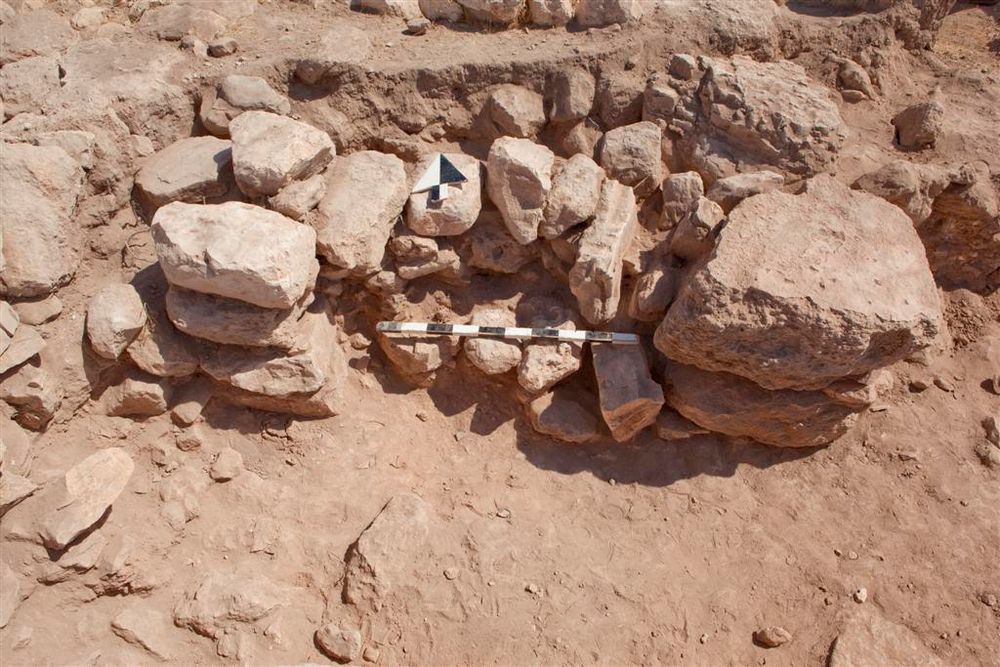

| 13 Jul, 2012 | 12L89061 | RUBBLE WALL 46 |
|

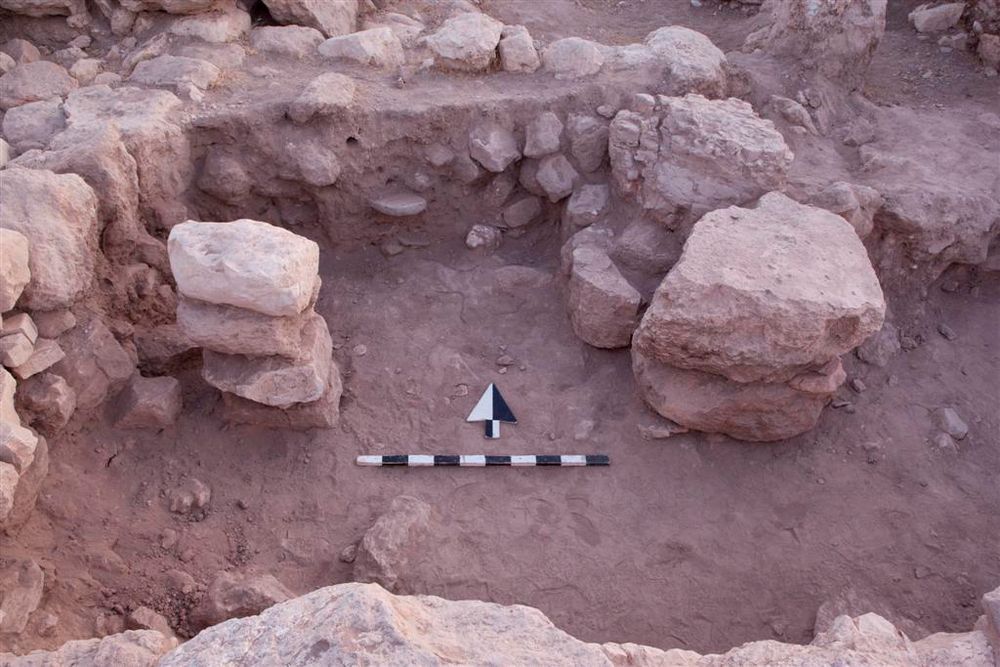

| 17 Jul, 2012 | 12L89075 | PROGRESS |
|

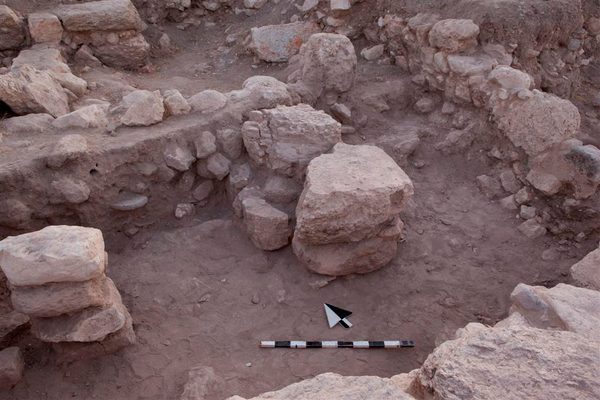

| 18 Jul, 2012 | 12L89095 | PROGRESS |
|
| 23 Jul, 2012 | 12L89095 | PROGRESS |
|
| 23 Jul, 2012 | 12L6K89124 | PROGRESS |
|
| 23 Jul, 2012 | 12L6K89135 | PROGRESS |
|
| 24 Jul, 2012 | 12L89152 | PROGRESS |
|

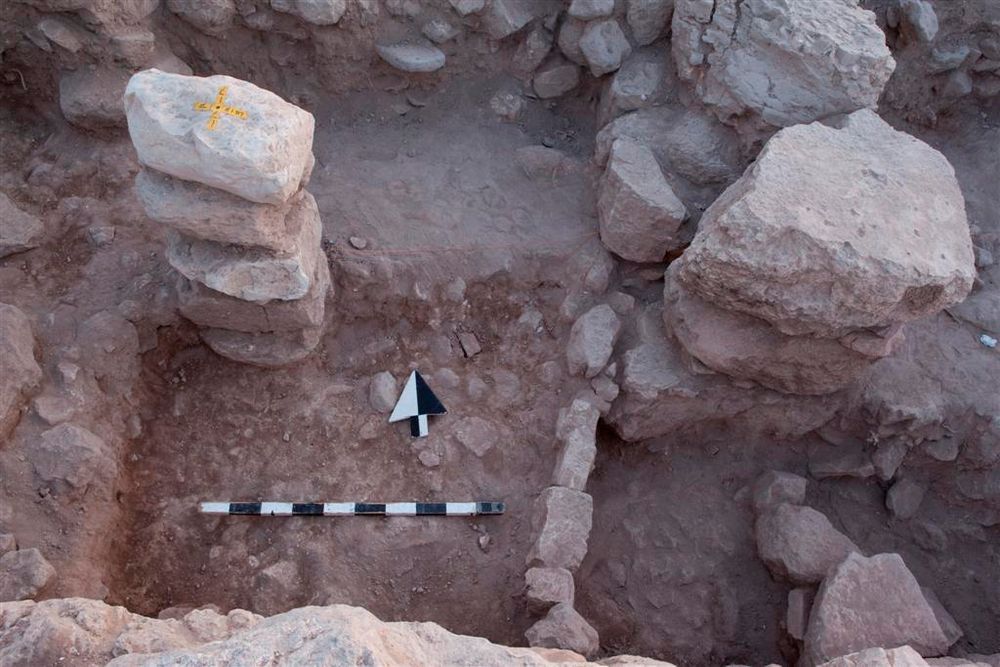

| 25 Jul, 2012 | 12L89167 | PROGRESS |
|

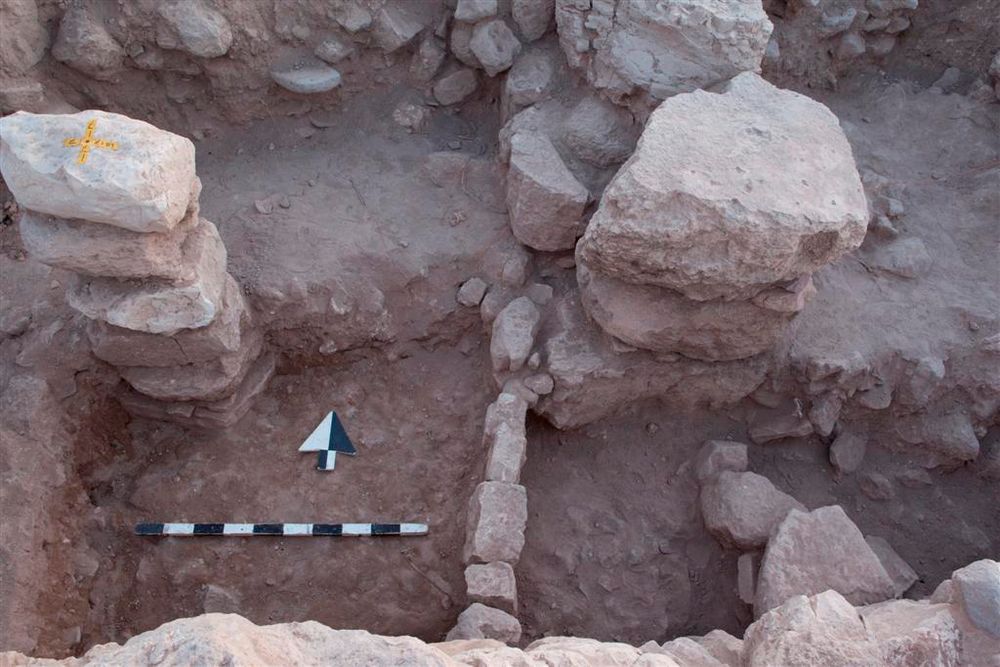

| 26 Jul, 2012 | 12L89182 | PROGRESS |
|
| 27 Jul, 2012 | 12L98201 | SURFACE 55 |
|
| 30 Jul, 2012 | 12L98206 | PROGRESS |
|

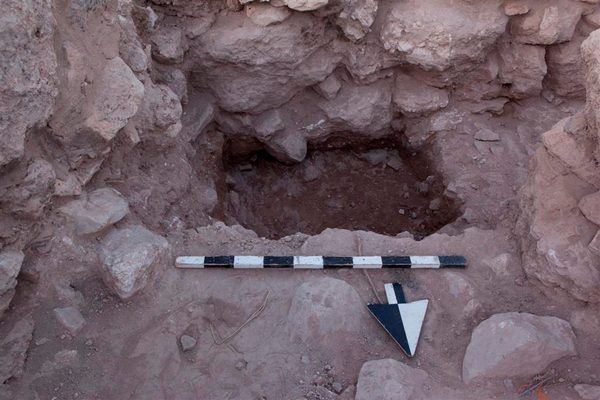

| 31 Jul, 2012 | 12L89217 | PROGRESS |
|

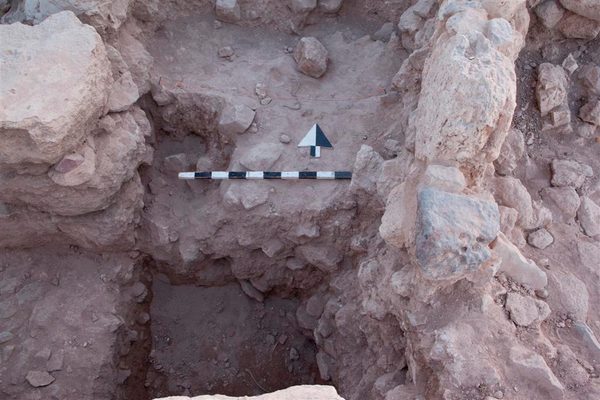

| 02 Aug, 2012 | 12L89259 | PROGRESS |
|
