Locus H.7K11.045
General Information
Locus Type:
Architecture
Supervisor:
R. Saley
Designation:
E-W wall under L 42
Reason:
Stones in a line
Top Separation:
Very Clear
Bottom Separation:
Clear
Start Date:
29 Jul, 2004
End Date:
24 Jul, 2008
Interpretation
Function:
Widening of Wall 18
Stratigraphy remarks:
Later than Wall 18
Balk:
Phase:
Stratum :
Architecture Description
Material
chert Qualifier 1:
chert Qualifier 2:
chert Qualifier 3:
chert Percent:
0
Limestone Qualifier 1:
None
Limestone Qualifier 2:
Limesotne Qualifier 3:
Limestone Percent:
100
basalt Qualifier 1:
basalt Qualifier 2:
basalt Qualifier 3:
basalt Percent:
0
nari Qualifier 1:
nari Qualifier 2:
nari Qualifier 3:
nari Percent:
0
mudbrick Qualifier 1:
mudbrick Qualifier 2:
mudbrick Qualifier 3:
mudbrick Percent:
Arch Frags:
0
Fragment Type:
Quarry:
Wall Stones
Cobble (6-25 cm) %:
5
Small Boulder (25-50cm) %:
Medium Boulder (50-75cm) %:
25
Large Boulder (75-100cm) %:
0
Very Large Boulder (>1 m) %:
0
Chinkstones
Pebble (.2-6 cm) %:
10
Cobble (6-25 cm) %:
90
Fillstones: (in Rubble-filled Construction)
Cobble (6-25 cm) %:
90
Small Boulder (25-50cm) %:
10
Medium Boulder (50-75cm) %:
0
Large Boulder (75-100cm) %:
0
Very Large Boulder (>1 m) %:
0
Brick
Length (upper):
0.0
Length (lower):
0.0
Width (upper):
0.0
Width (lower):
0.0
Depth (upper):
0.0
Depth (lower):
0.0
Dressing: (Stone Only)
Unhewn %:
100
Semi-hewn %:
Dressed %:
0
Ashlar %:
0
Bossed %:
0
Tooling (Stone Only)
Upper Width:
0.0
Lower Width:
0.0
Upper Length:
0.0
Lower Length:
0.0
Sketch:
false
Photo:
false
Mortar
Dry-laid %:
100
Clay %:
0
Mud %:
0
Cement %:
0
Plaster %:
0
Average Thickness:
0.0
Facing
Facing:
Unfaced
Color:
Construction
Style:
Boulder & Chink
Support:
Free-standing
Tendencies:
Courses
Highest Count:
4
Lowest Count:
3
Random:
false
Rows
Highest Count:
0
Lowest Count:
2
Two with Rubble:
Random:
false
Measurements
Greatest Length in meters:
2.3
Greatest width in meters:
0.85
Smallest width in meters:
0.75
Greatest Height in meters:
0.85
Lowest Height in meters:
0.62
Orientation (degrees):
200
Dip (degrees):
0
Preservation
Preservation:
Lean Direction (degrees):
0
Lean Degrees:
0
Top Foundation Level:
0.0
Remarks
Remarks:
Wall 18 hides part of it; seems to be an addition to Wall 18; bottom not reached in U06; removed in U08 (Jul 24)
Levels
| Location | Top Level | Bottom Level |
|---|---|---|
| 3 | 912.6 | 0 |
| 4 | 912.23 | 911.54 |
| 9 | 912.61 | 0 |
| 9 | 912.43 | 0 |
| 16 | 912.56 | 0 |
Stratigraphy
| Under | Earth layer | H7K11:042 |
| Abuts | Wall | H7K11:004 |
| Abuts | Wall | H7K21:042 |
| Abuts | Wall | H7K11:018 |
| Over | Earth layer | H7K11:066 |
| Equals | Wall | H7K21:051 |
| Sealed agnst by | Surface | H7K11:044 |
| Sealed agnst by | Surface | H7K11:051 |
| Sealed agnst by | Earth layer | H7K11:055 |
| Sealed agnst by | Earth layer | H7K11:069 |
| Sealed agnst by | Earth layer | H7K11:071 |
| Sealed agnst by | Earth layer | H7K11:072 |
Pails
| Number | Date | Baskets | Total | Diagnostic | Published | ||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 171 | 24 Jul, 2008 | 35 | 50 | 3 | 0 | ||||||||||||||||||||||||||||||
Pottery Readings
|
|||||||||||||||||||||||||||||||||||
Photos
| Date | Photo Number | Subject | Photo |
|---|---|---|---|

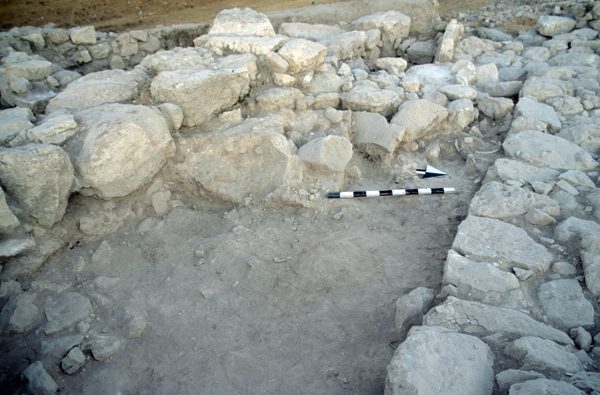

| 28 Jul, 2004 | 04H11331 | Progress |
|

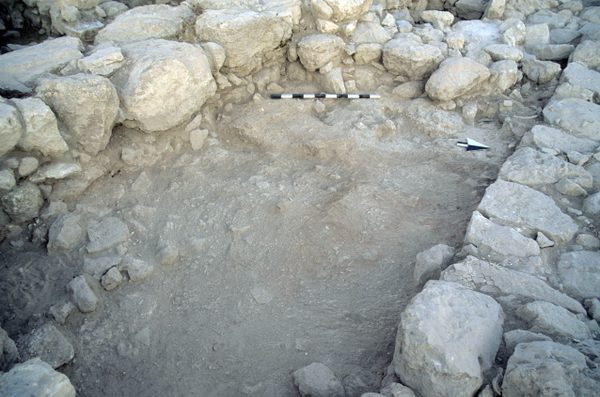

| 29 Jul, 2004 | 04H11347 | Progress |
|

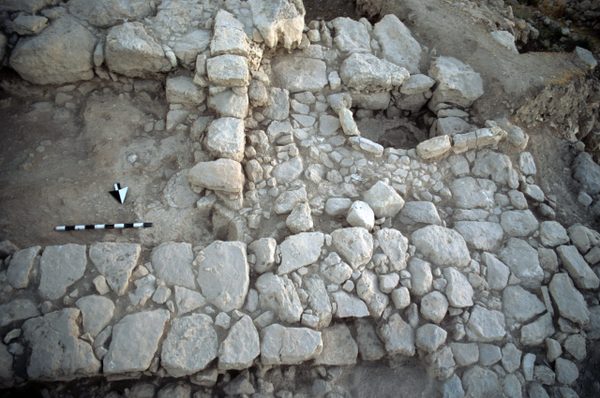

| 30 Jul, 2004 | 04H11372 | Final from N |
|
| 07 Jul, 2006 | 06H11111 | Progress |
|

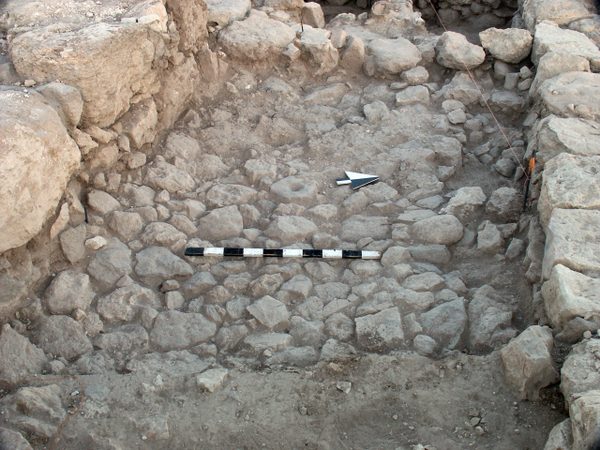

| 10 Jul, 2006 | 06H11129 | Progress |
|
| 13 Jul, 2006 | 06H11188 | Progress |
|
| 14 Jul, 2006 | 06H11205 | Progress |
|
| 17 Jul, 2006 | 06H11223 | Progress |
|
| 07 Jul, 2006 | 06H11110 | Progress |
|
| 10 Jul, 2006 | 06H11130 | Progress |
|
| 11 Jul, 2006 | 06H11150 | Progress |
|
| 12 Jul, 2006 | 06H11167 | Progress |
|
| 30 Jun, 2008 | 08H11009 | Progress |
|

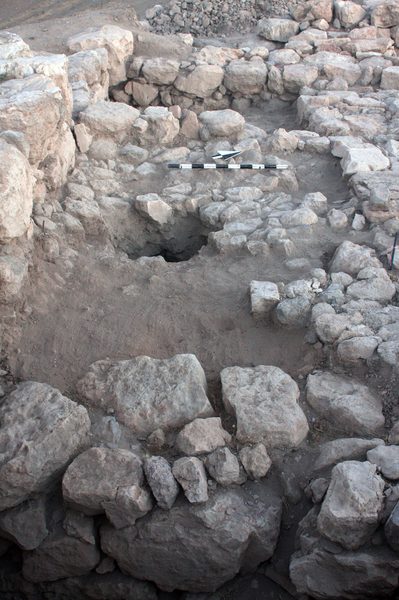

| 01 Jul, 2008 | 08H11037 | Progress |
|

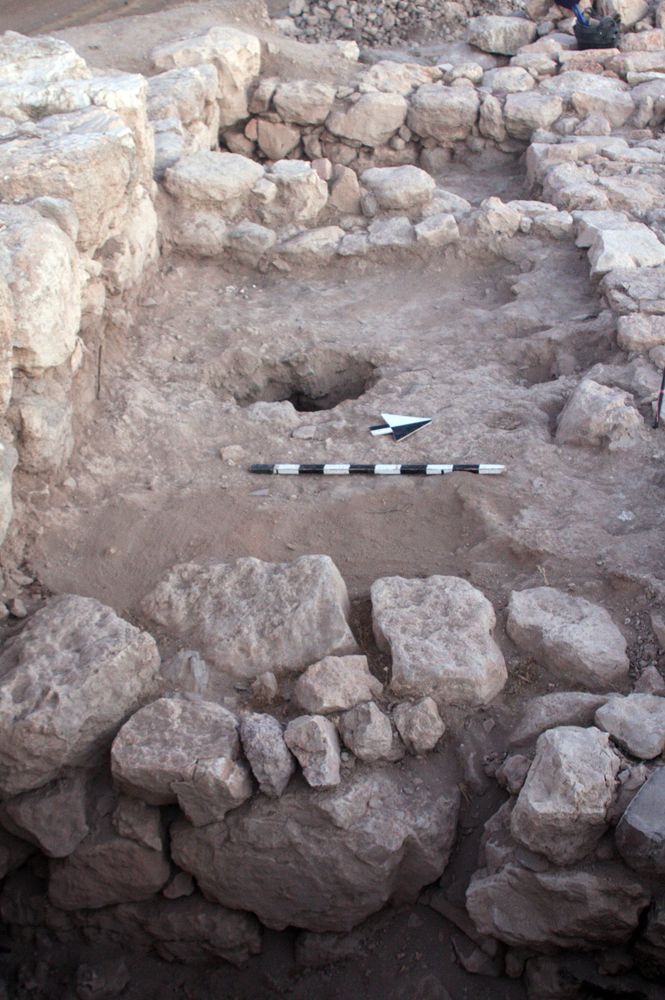

| 02 Jul, 2008 | 08H11060 | Progress |
|

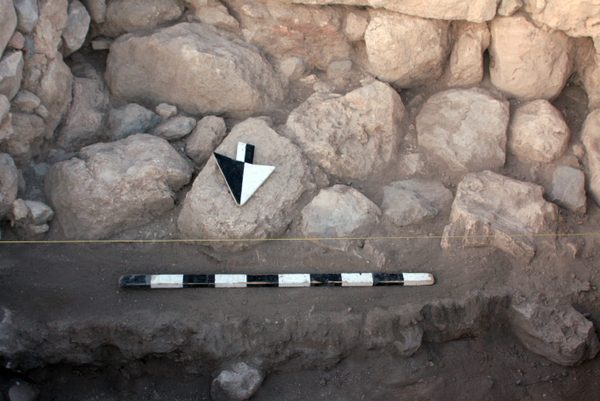

| 15 Jul, 2008 | 08H11288 | Progress |
|

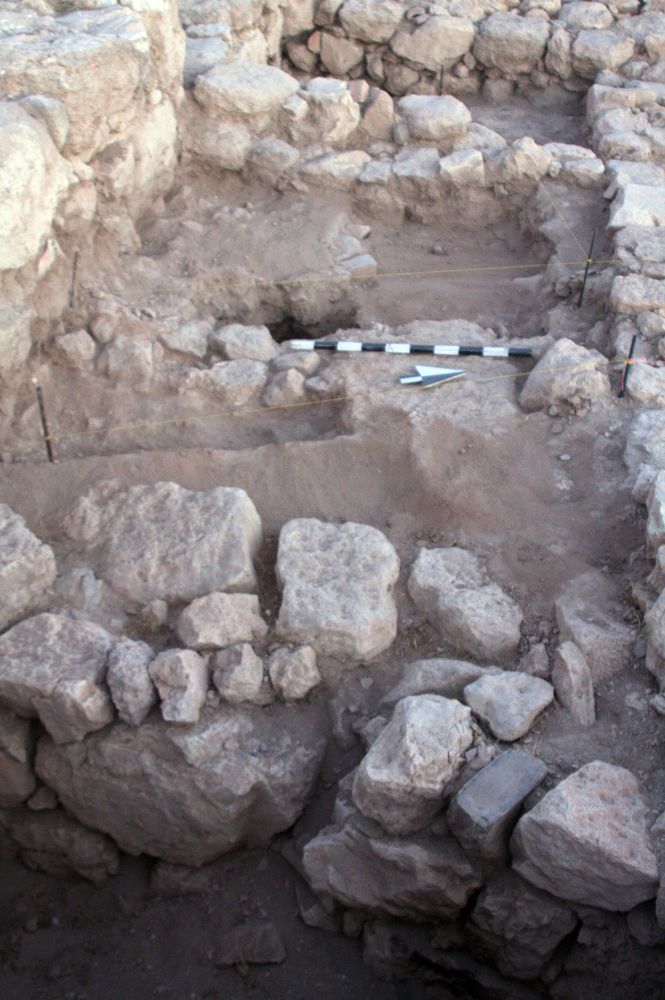

| 03 Jul, 2008 | 08H11083 | Progress |
|
| 09 Jul, 2008 | 08H11189 | Progress |
|
