Locus H.7K10.017
General Information
Locus Type:
Architecture
Supervisor:
D. Mook: R.Gray
Designation:
E-W wall in NE quadrant; earlier, part of Wall 4
Reason:
Major wall stones
Top Separation:
Bottom Separation:
Start Date:
25 Jul, 2000
End Date:
20 Jul, 2012
Interpretation
Function:
Major wall
Stratigraphy remarks:
Prior to Wall 4
Balk:
Phase:
Stratum :
Architecture Description
Material
chert Qualifier 1:
chert Qualifier 2:
chert Qualifier 3:
chert Percent:
0
Limestone Qualifier 1:
Hard
Limestone Qualifier 2:
Decayed
Limesotne Qualifier 3:
Reused
Limestone Percent:
100
basalt Qualifier 1:
basalt Qualifier 2:
basalt Qualifier 3:
basalt Percent:
0
nari Qualifier 1:
nari Qualifier 2:
nari Qualifier 3:
nari Percent:
0
mudbrick Qualifier 1:
mudbrick Qualifier 2:
mudbrick Qualifier 3:
mudbrick Percent:
Arch Frags:
0
Fragment Type:
Quarry:
Wall Stones
Cobble (6-25 cm) %:
25
Small Boulder (25-50cm) %:
Medium Boulder (50-75cm) %:
65
Large Boulder (75-100cm) %:
10
Very Large Boulder (>1 m) %:
0
Chinkstones
Pebble (.2-6 cm) %:
0
Cobble (6-25 cm) %:
0
Fillstones: (in Rubble-filled Construction)
Cobble (6-25 cm) %:
0
Small Boulder (25-50cm) %:
0
Medium Boulder (50-75cm) %:
0
Large Boulder (75-100cm) %:
0
Very Large Boulder (>1 m) %:
0
Brick
Length (upper):
0.0
Length (lower):
0.0
Width (upper):
0.0
Width (lower):
0.0
Depth (upper):
0.0
Depth (lower):
0.0
Dressing: (Stone Only)
Unhewn %:
0
Semi-hewn %:
Dressed %:
0
Ashlar %:
0
Bossed %:
0
Tooling (Stone Only)
Upper Width:
0.0
Lower Width:
0.0
Upper Length:
0.0
Lower Length:
0.0
Sketch:
false
Photo:
false
Mortar
Dry-laid %:
100
Clay %:
0
Mud %:
0
Cement %:
0
Plaster %:
0
Average Thickness:
0.0
Facing
Facing:
Unfaced
Color:
Construction
Style:
Boulder & Chink
Support:
Free-standing
Tendencies:
Courses
Highest Count:
0
Lowest Count:
3
Random:
false
Rows
Highest Count:
3
Lowest Count:
2
Two with Rubble:
Random:
false
Measurements
Greatest Length in meters:
2.1
Greatest width in meters:
0
Smallest width in meters:
0
Greatest Height in meters:
0
Lowest Height in meters:
0
Orientation (degrees):
100
Dip (degrees):
0
Preservation
Preservation:
Partial Superstructure: Most
Lean Direction (degrees):
0
Lean Degrees:
0
Top Foundation Level:
0.0
Remarks
Remarks:
foundation level not reached in U00. Clearly separate from wall 4
Levels
| Location | Top Level | Bottom Level |
|---|---|---|
| 16 | 911.12 | 910.53 |
Stratigraphy
| Under | Wall | H7K10:004 |
| Sealed agnst by | Surface | H7K10:009 |
| Sealed agnst by | Earth layer | H7K10:010 |
| Sealed agnst by | Earth layer | H7K10:014 |
| Sealed agnst by | Earth layer | H7K10:012 |
| Sealed agnst by | Surface | H7K10:011 |
| Sealed agnst by | Earth layer | H7K10:016 |
| Sealed agnst by | Earth layer | h7k10:023 |
| Bonded to | Wall | h7k10:029 |
| Sealed agnst by | Earth layer | h7k10:024 |
| Sealed agnst by | Surface | h7k10:027 |
Pails
| Number | Date | Baskets | Total | Diagnostic | Published | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 81 | 20 Jul, 2012 | 9 | |||||||||||||||||||||
Pottery Readings
|
|||||||||||||||||||||||
Photos
| Date | Photo Number | Subject | Photo |
|---|---|---|---|
| 24 Jul, 2000 | 00H10443 | Progress |
|
| 26 Jul, 2000 | 00H10480 | Progress |
|

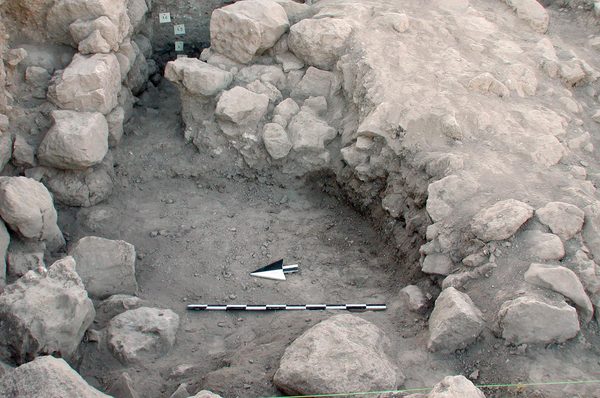

| 25 Jul, 2000 | 00H10462 | Progress |
|
| 27 Jul, 2000 | 00H10503 | Progress |
|
| 27 Jul, 2000 | 00H10520 | Progress |
|

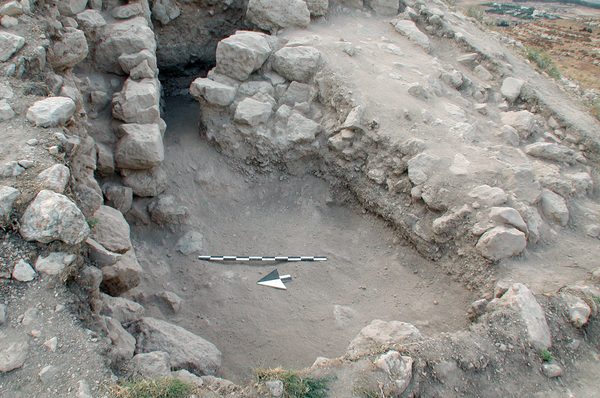

| 01 Aug, 2000 | 00H10537 | Final |
|

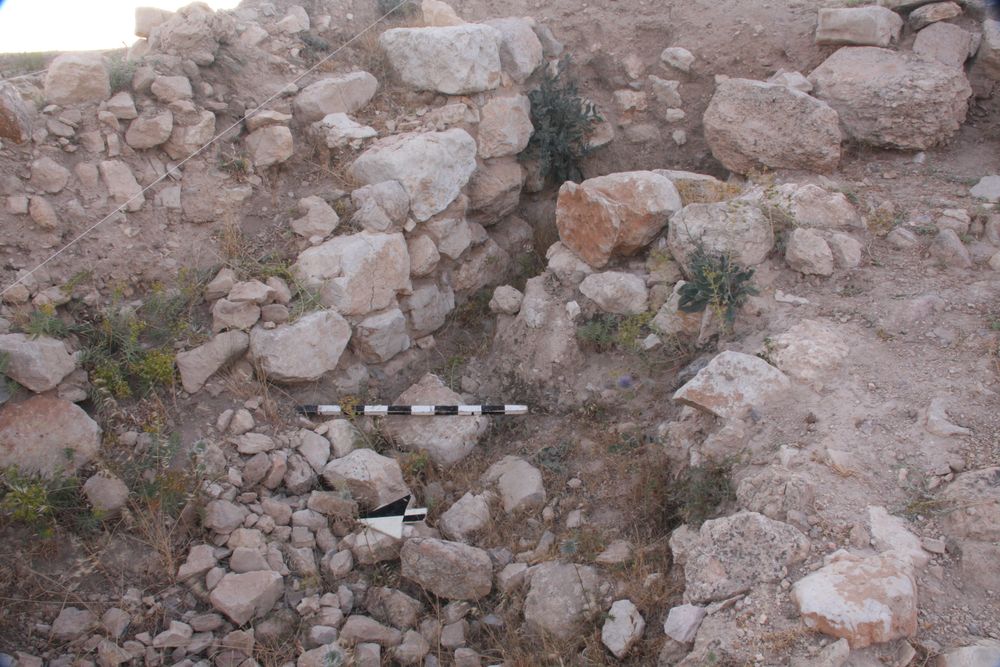

| 06 Jul, 2011 | 11H10002 | Pre-excavation |
|

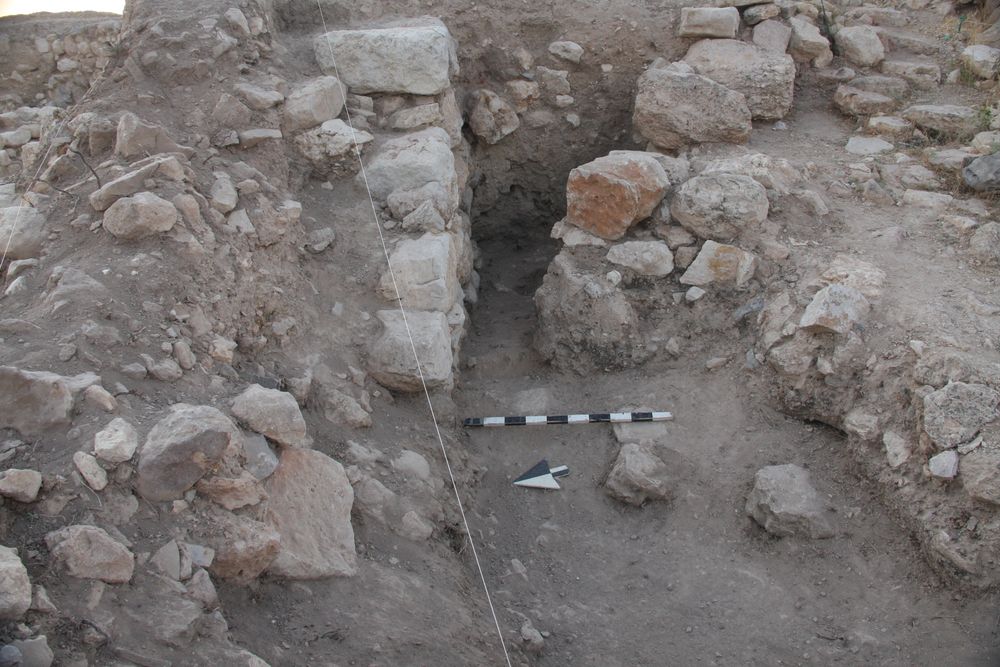

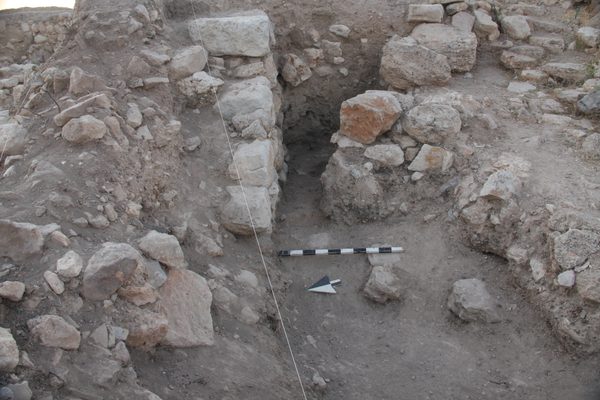

| 07 Jul, 2011 | 11H10007 | Progress |
|
| 08 Jul, 2011 | 11H10011 | Progress |
|
| 11 Jul, 2011 | 11H10015 | Progress |
|
| 11 Jul, 2011 | 11H10014 | Progress |
|
| 12 Jul, 2011 | 11H10020 | Progress |
|
| 18 Jul, 2011 | 11H10040 | Progress |
|

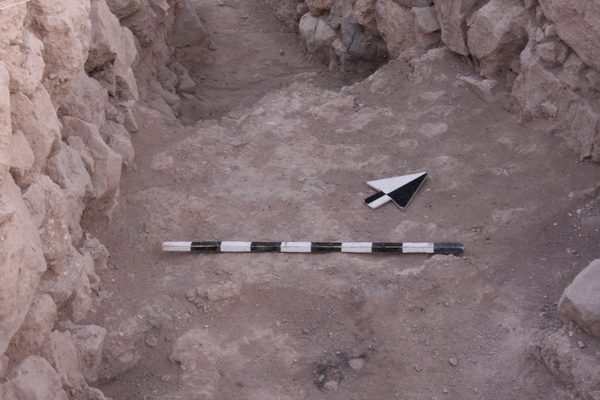

| 19 Jul, 2011 | 11H10044 | Progress |
|
| 22 Jul, 2011 | 11H10061 | Progress |
|
| 22 Jul, 2011 | 11H10062 | Progress |
|

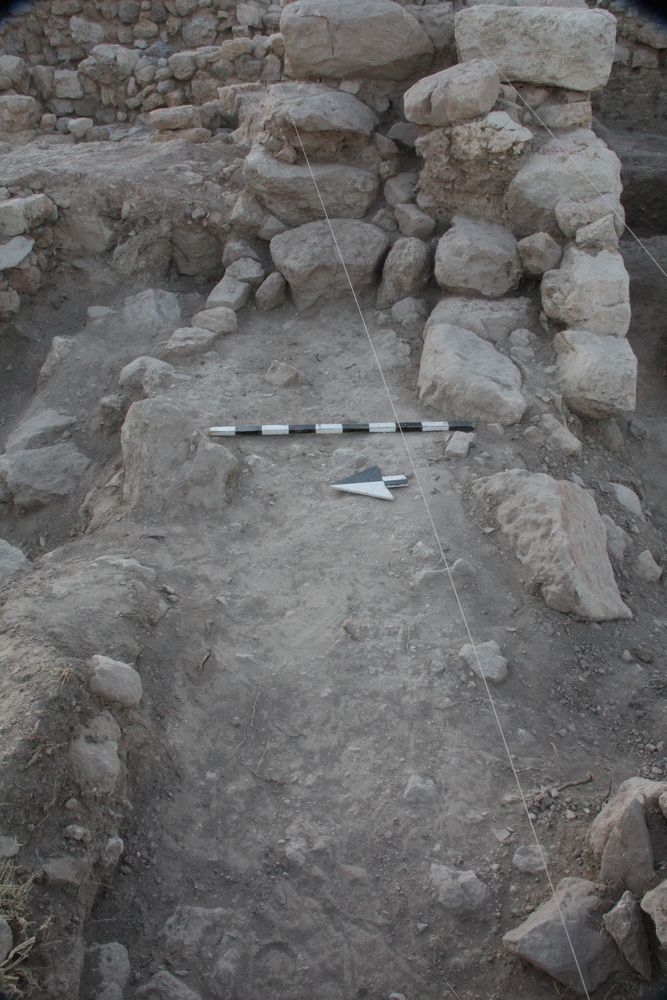

| 22 Jul, 2011 | 11H10063 | Progress |
|
| 21 Jul, 2011 | 11H10055 | Progress |
|
| 20 Jul, 2011 | 11H10049 | Progress |
|
| 19 Jul, 2011 | 11H10044 | Progress |
|

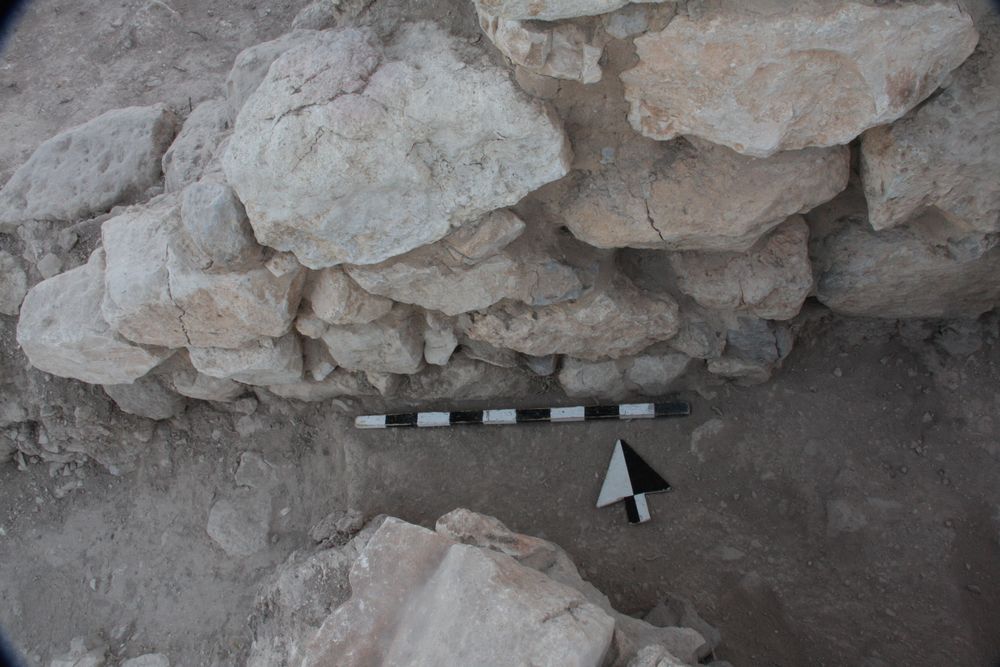

| 28 Jul, 2011 | 11H10092 | Final Wall 4 & 17 |
|

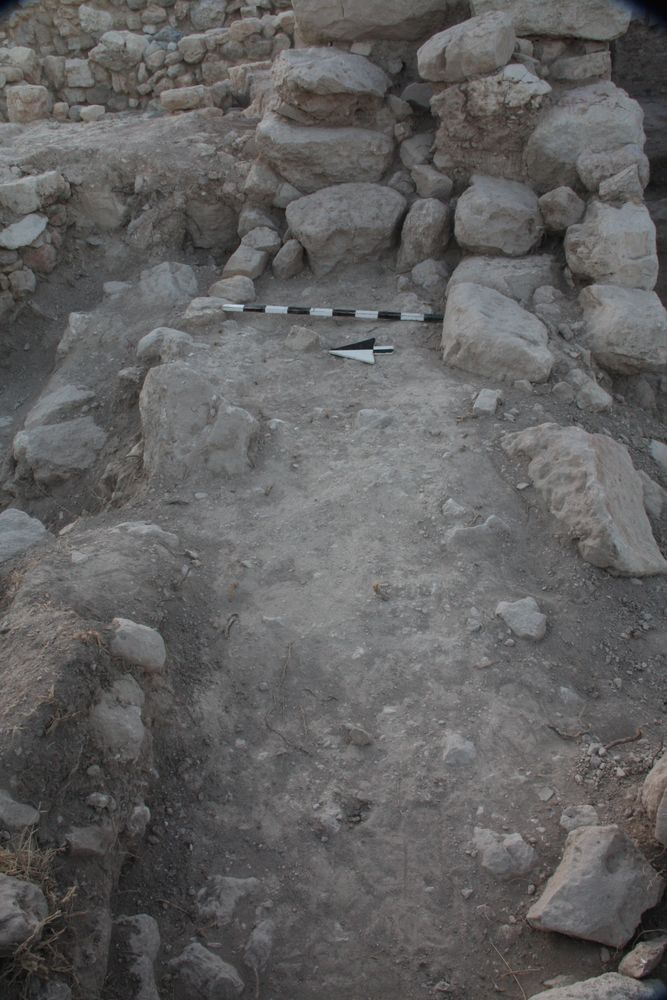

| 28 Jul, 2011 | 11H10093 | Final Balk and Wall 4 & 17 |
|
| 12 Jul, 2012 | 12H10042 | PROGRESS |
|
| 13 Jul, 2012 | 12H10055 | PROGRESS |
|
| 16 Jul, 2012 | 12H10067 | PROGRESS |
|

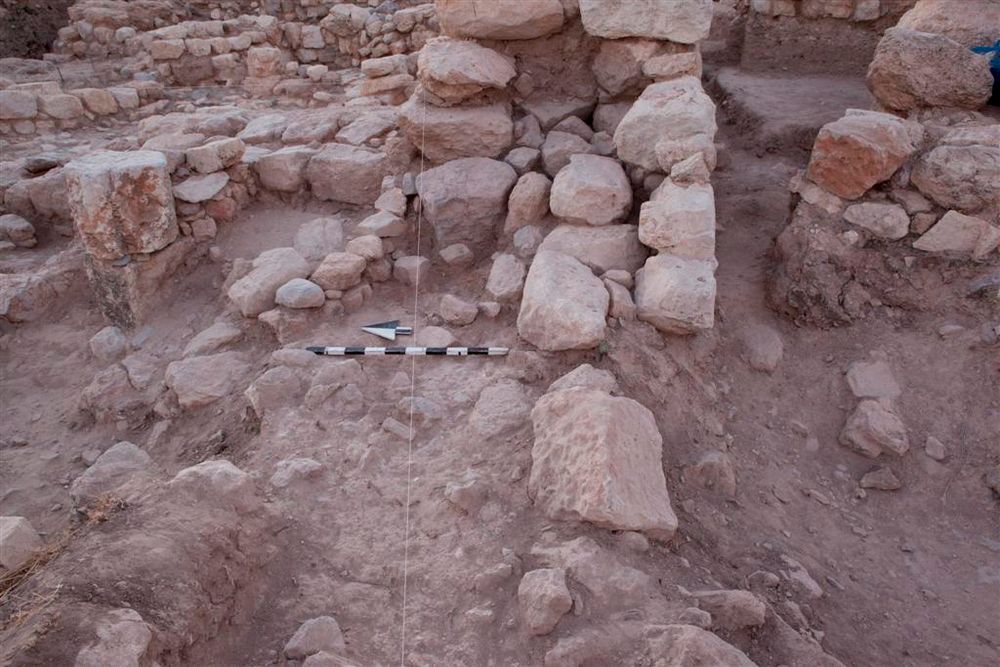

| 17 Jul, 2012 | 12H10080 | PROGRESS |
|

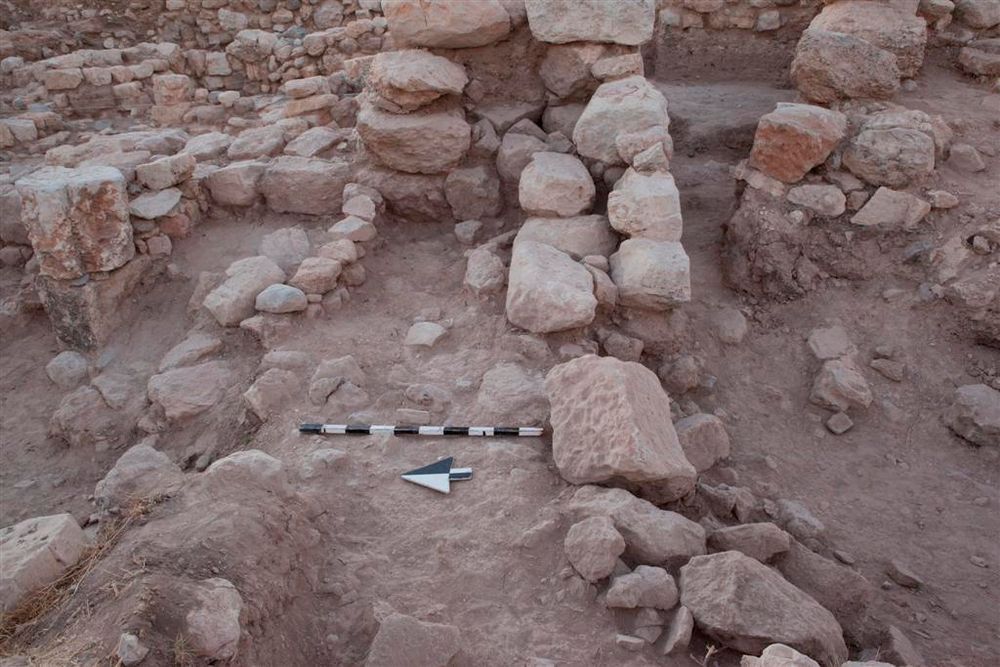

| 18 Jul, 2012 | 12H10100 | PROGRESS |
|

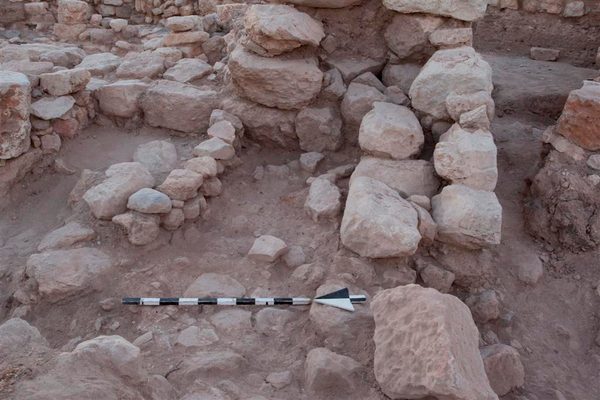

| 19 Jul, 2012 | 12H10116 | PROGRESS |
|

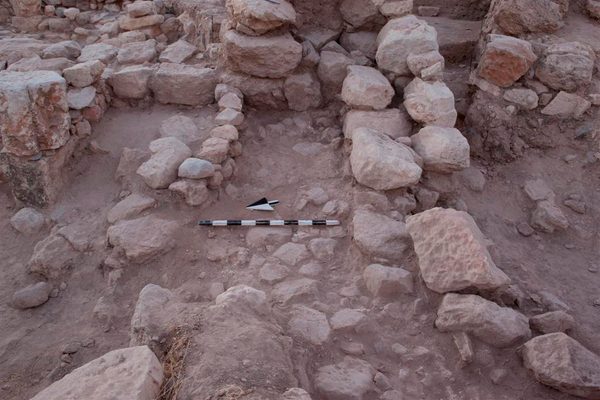

| 20 Jul, 2012 | 12H10129 | PROGRESS |
|

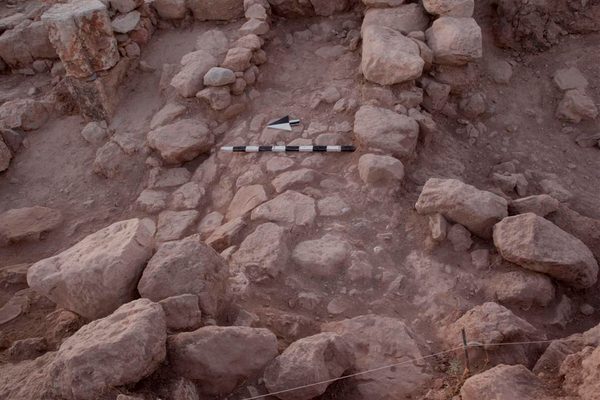

| 23 Jul, 2012 | 12H10140 | PROGRESS |
|

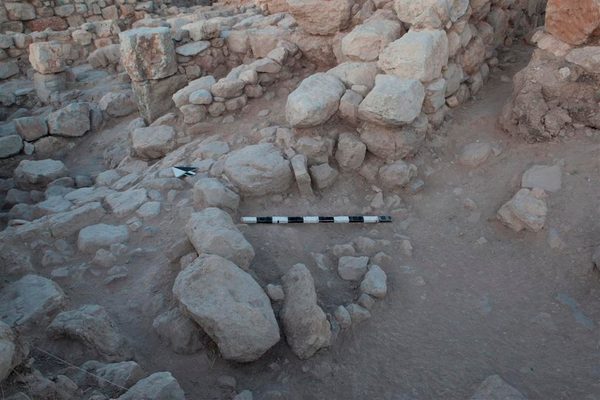

| 06 Aug, 2012 | 12H10342 | FINAL |
|
