Locus H.7K02.047

General Information

Locus Type:

Architecture

Supervisor:

C. Tyson

Designation:

N-S Wall

Reason:

Stones in a line

Top Separation:

Very Clear

Bottom Separation:

Average

Start Date:

14 Jul, 2016

End Date:

21 Jul, 2016

Interpretation

Function:

Stratigraphy remarks:

Balk:

Phase:

Stratum :

Architecture Description

Material

chert Qualifier 1:

chert Qualifier 2:

chert Qualifier 3:

chert Percent:

Limestone Qualifier 1:

Limestone Qualifier 2:

Limesotne Qualifier 3:

Limestone Percent:

100

basalt Qualifier 1:

basalt Qualifier 2:

basalt Qualifier 3:

basalt Percent:

nari Qualifier 1:

nari Qualifier 2:

nari Qualifier 3:

nari Percent:

mudbrick Qualifier 1:

mudbrick Qualifier 2:

mudbrick Qualifier 3:

mudbrick Percent:

Arch Frags:

Fragment Type:

Quarry:

Wall Stones

Cobble (6-25 cm) %:

80

Small Boulder (25-50cm) %:

20

Medium Boulder (50-75cm) %:

Large Boulder (75-100cm) %:

Very Large Boulder (>1 m) %:

Chinkstones

Pebble (.2-6 cm) %:

15

Cobble (6-25 cm) %:

85

Fillstones: (in Rubble-filled Construction)

Cobble (6-25 cm) %:

Small Boulder (25-50cm) %:

Medium Boulder (50-75cm) %:

Large Boulder (75-100cm) %:

Very Large Boulder (>1 m) %:

Brick

Length (upper):

Length (lower):

Width (upper):

Width (lower):

Depth (upper):

Depth (lower):

Dressing: (Stone Only)

Unhewn %:

100

Semi-hewn %:

Dressed %:

Ashlar %:

Bossed %:

Tooling (Stone Only)

Upper Width:

Lower Width:

Upper Length:

Lower Length:

Sketch:

Photo:

Mortar

Dry-laid %:

100

Clay %:

Mud %:

Cement %:

Plaster %:

Average Thickness:

Facing

Facing:

Color:

Construction

Style:

Boulder & Chink

Support:

Tendencies:

Courses

Highest Count:

3

Lowest Count:

2

Random:

Rows

Highest Count:

2

Lowest Count:

2

Two with Rubble:

Random:

Measurements

Greatest Length in meters:

1.27

Greatest width in meters:

0.5

Smallest width in meters:

0.45

Greatest Height in meters:

0.48

Lowest Height in meters:

0.4

Orientation (degrees):

8

Dip (degrees):

3

Preservation

Preservation:

Partial Superstructure: Little

Lean Direction (degrees):

Lean Degrees:

Top Foundation Level:

0

Remarks

Remarks:

This wall was founded on earth with a mix of stones and areas of earth instead of an even course of stones. From the N balk it appears that there was mudbrick on top of the stone foundation. Four courses of mudbrick are visible on the balk. Last rock in lowest course at S side is also part of the highest course in Wall 55.

Levels

Location Top Level Bottom Level
0 911.04 910.655

Stratigraphy

Under Earth layer 045
Sealed agnst by Earth layer 049
Sealed agnst by Earth layer 048
Abuts Wall 46
Over Earth layer 053
Sealed agnst by Surface 050
Sealed agnst by Surface 051
Over Wall 055
Sealed agnst by Surface 052

Pails

Number Date Baskets Total Diagnostic Published
164 20 Jul, 2016 13

Pottery Readings

Count Quantity modifier Form Period Period modifier Question
LB-Iron 1 Trans
Body Late Bronze
165 21 Jul, 2016 4

Pottery Readings

Count Quantity modifier Form Period Period modifier Question
1 Krater LB-Iron 1 Trans
Body Late Bronze

Photos

Date Photo Number Subject Photo

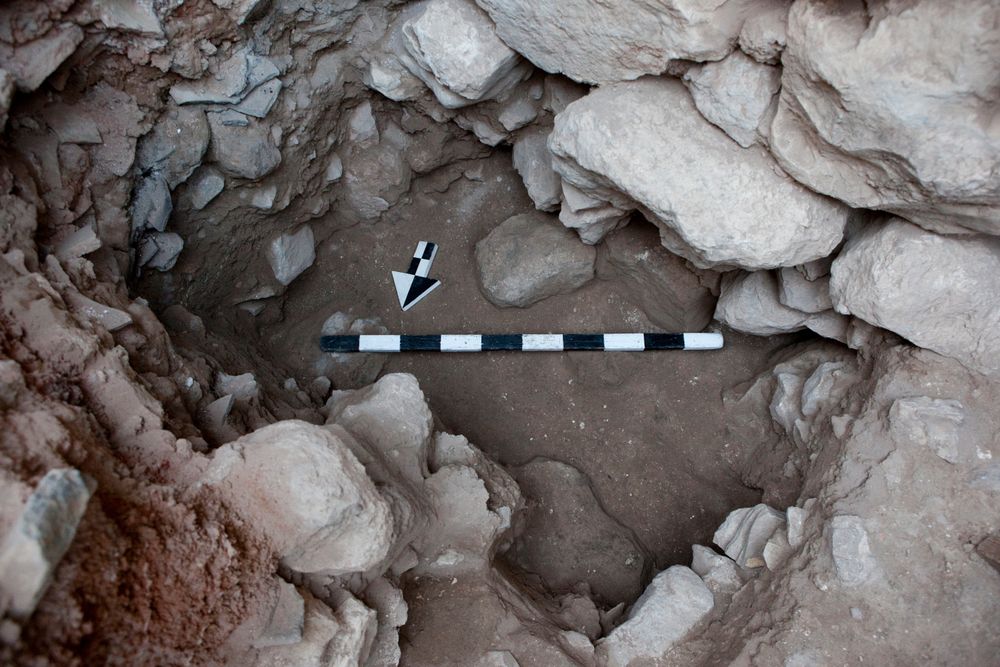

27 Jul, 2016 16H02261 FINAL

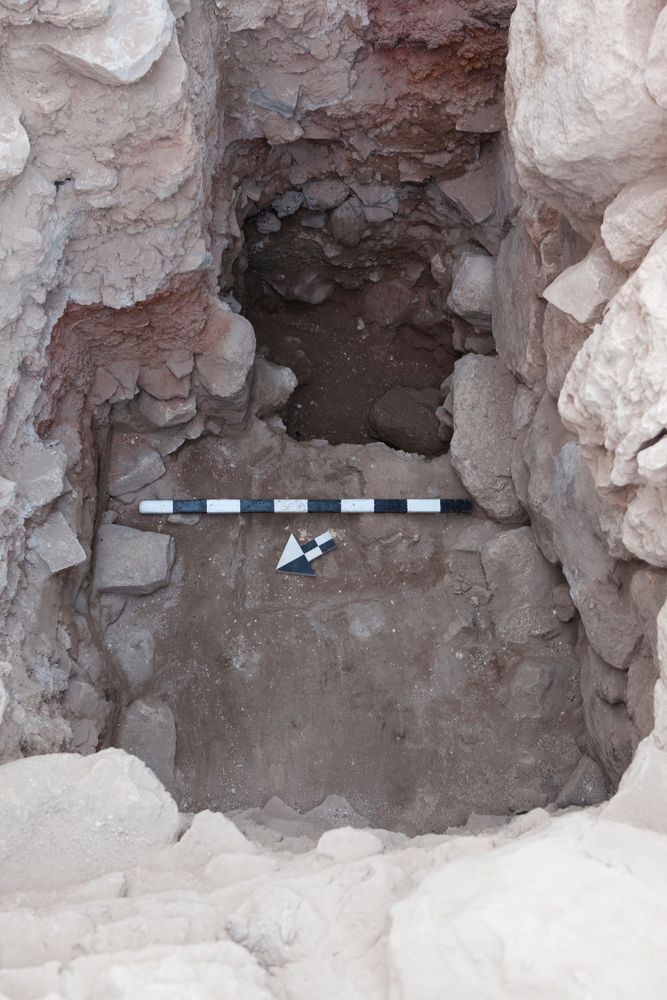

26 Jul, 2016 16H02221 PROGRESS

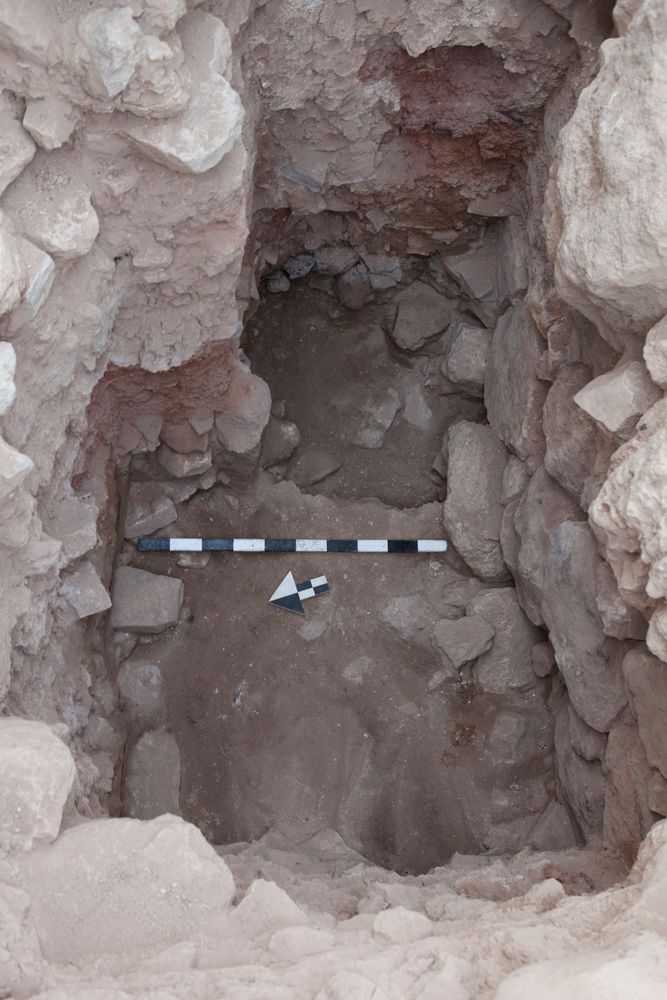

25 Jul, 2016 16H02215 PROGRESS

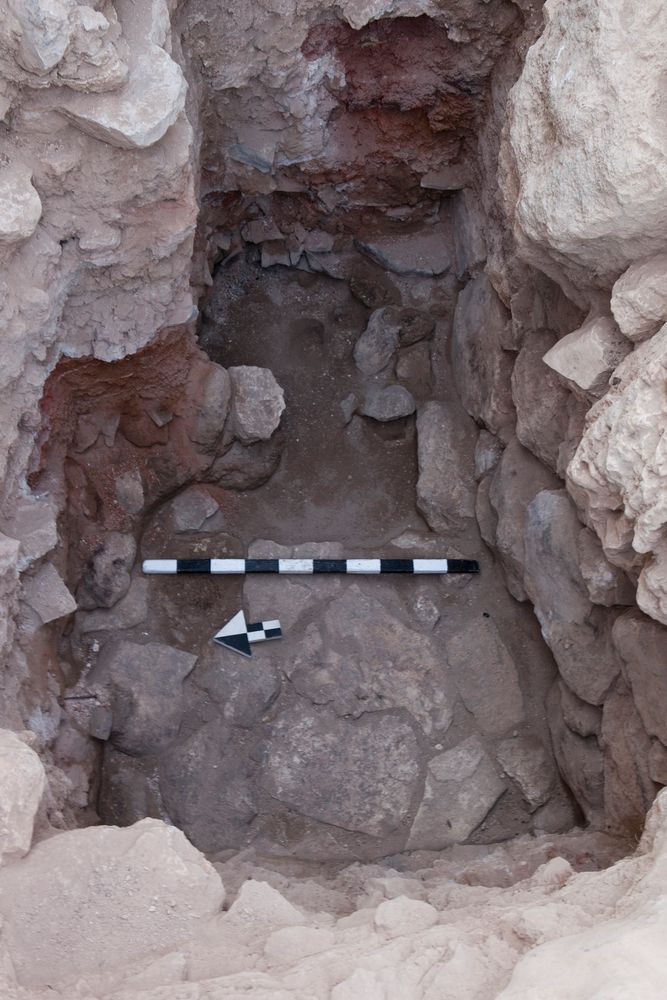

21 Jul, 2016 16H02199 PROGRESS

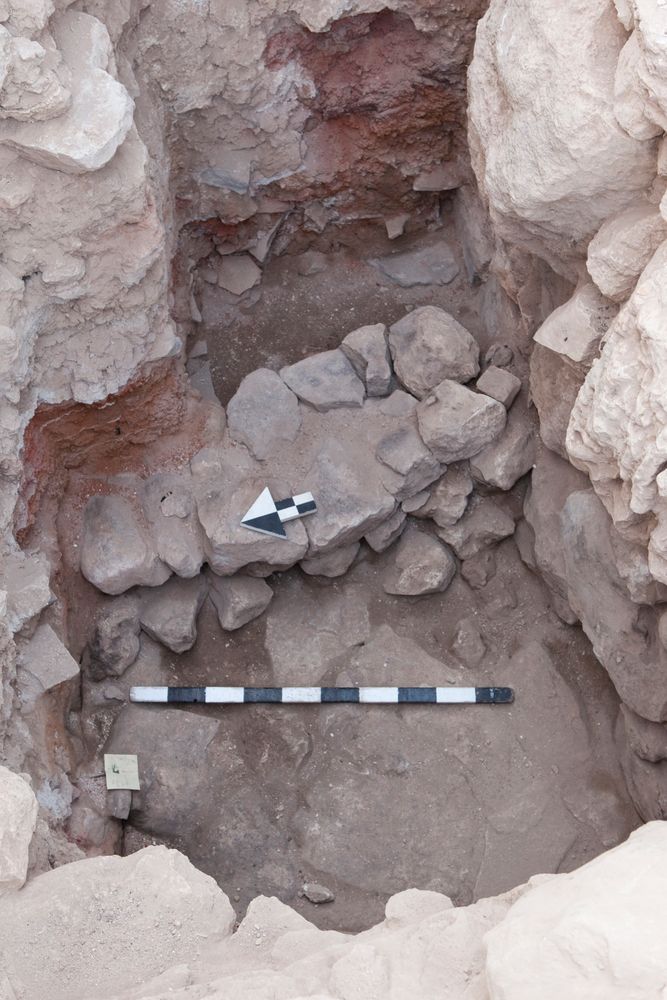

20 Jul, 2016 16H02160 PROGRESS

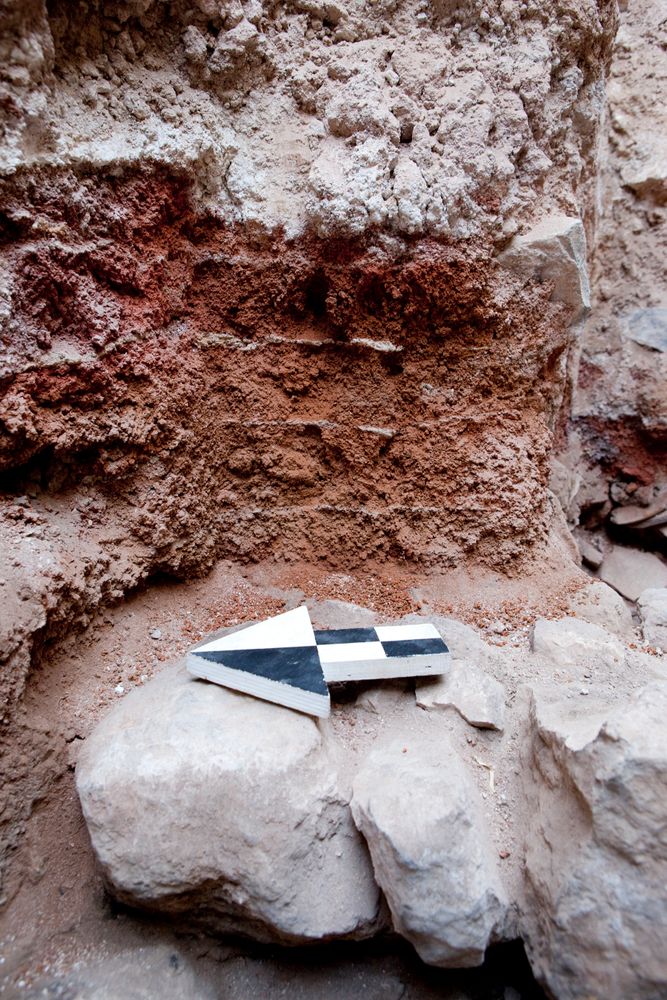

20 Jul, 2016 16H02161 MUDBRICK SUPERSTRUCTURE IN BALK OF 45 ABOVE WALL 47

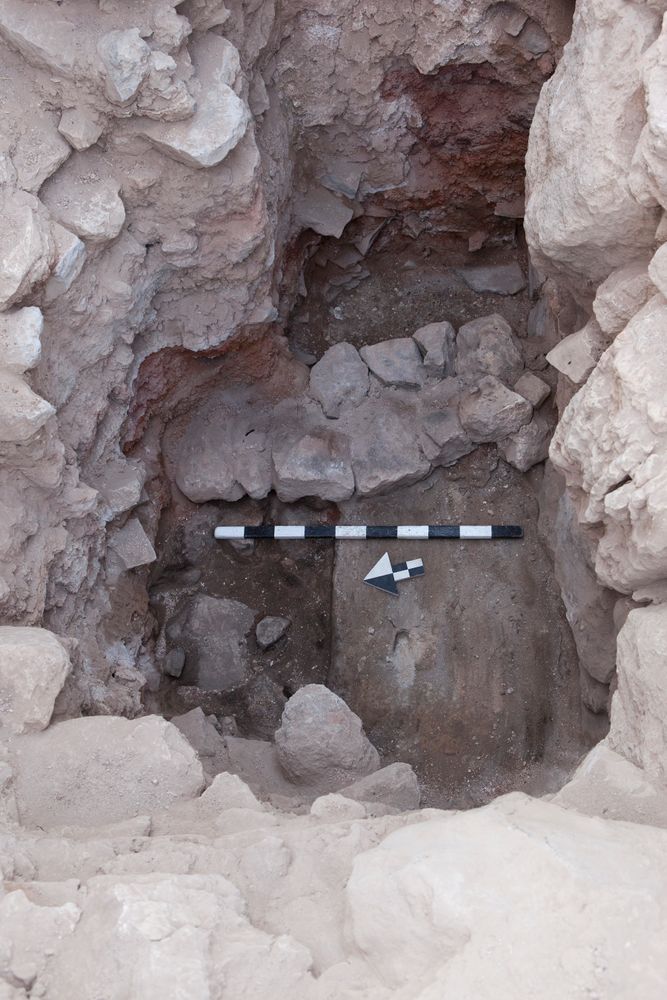

19 Jul, 2016 16H02186 PROGRESS

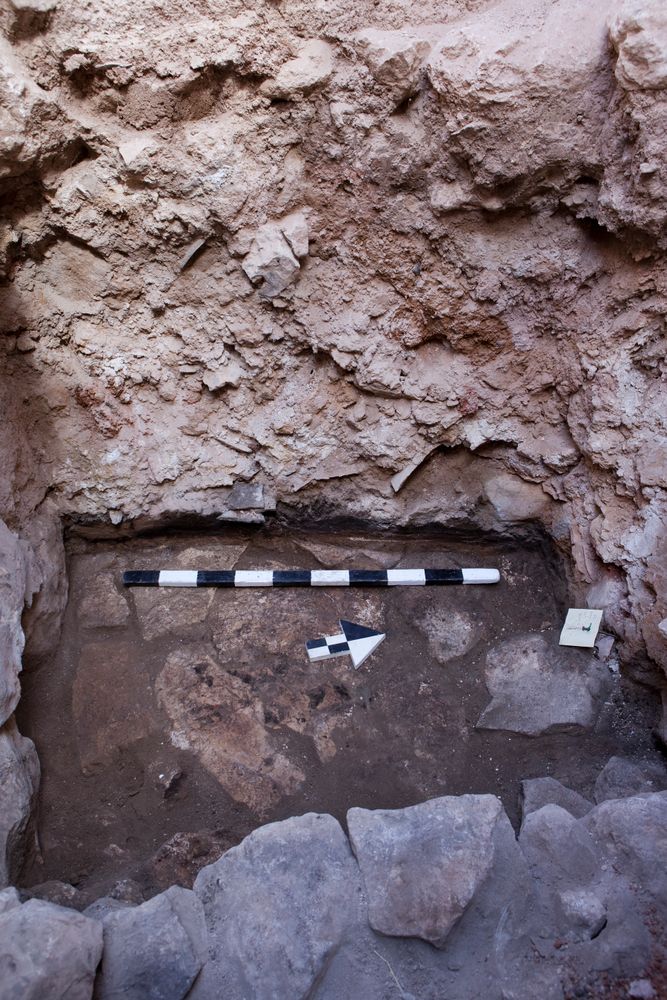

19 Jul, 2016 16H02189 BEGINNING OF 52

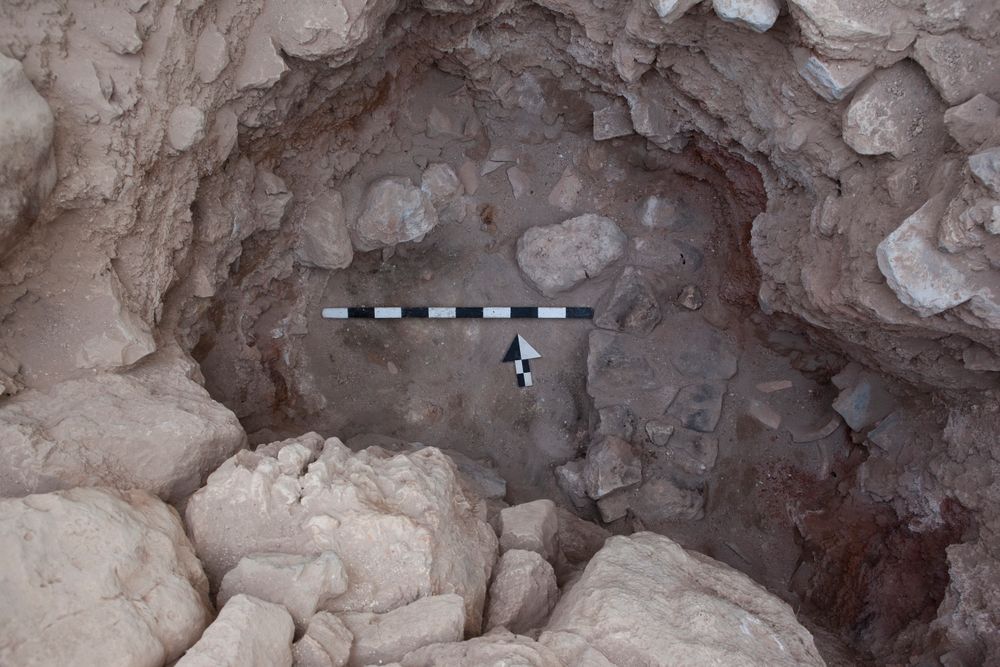

18 Jul, 2016 16H02176 PROGRESS

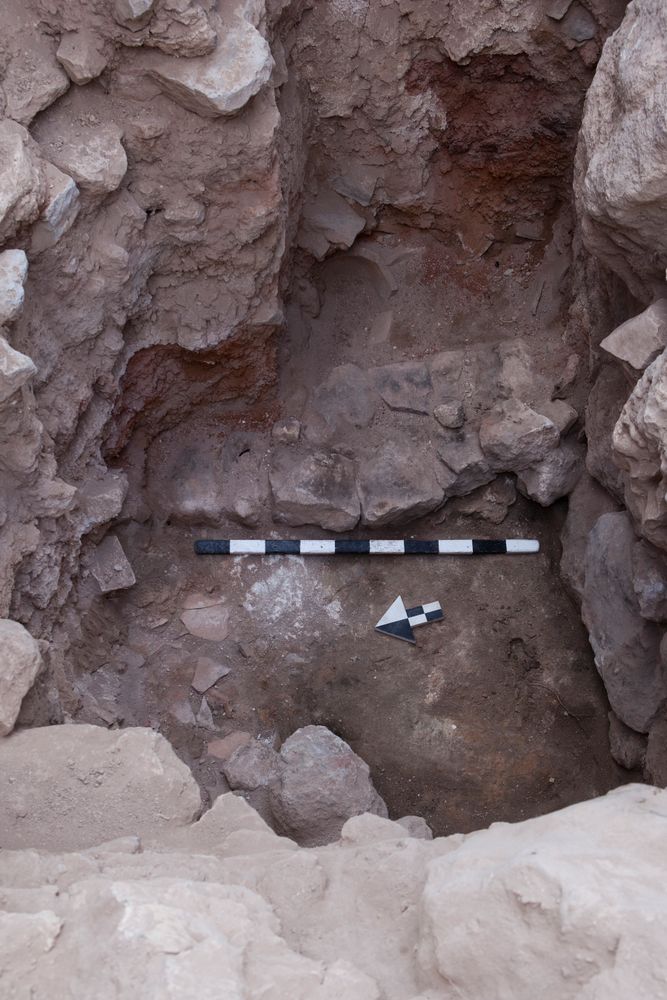

18 Jul, 2016 16H02178 BEGINNING OF 50

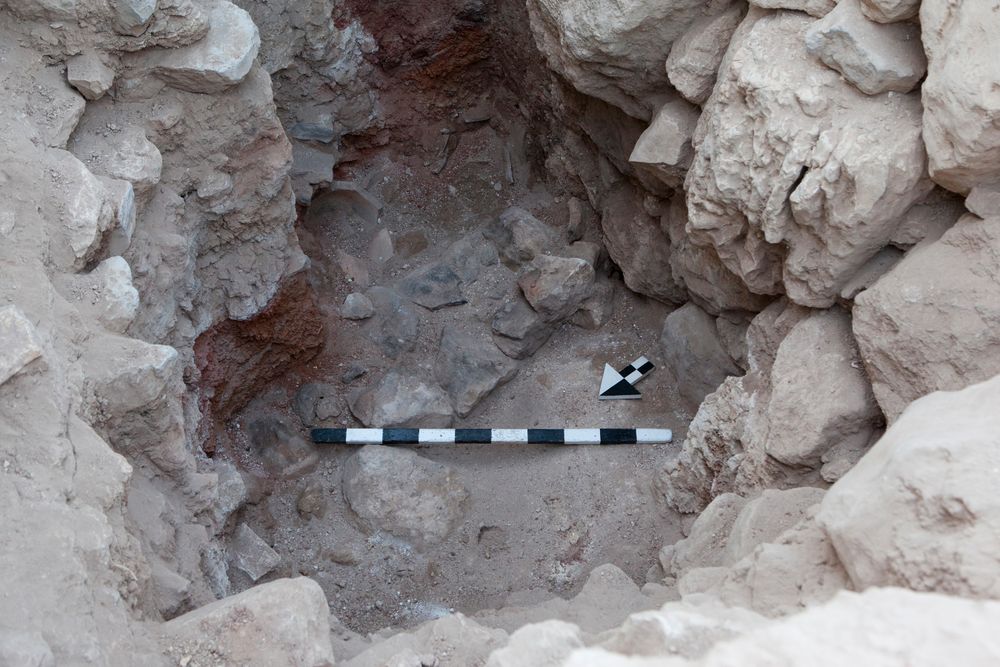

15 Jul, 2016 16H02158 PROGRESS

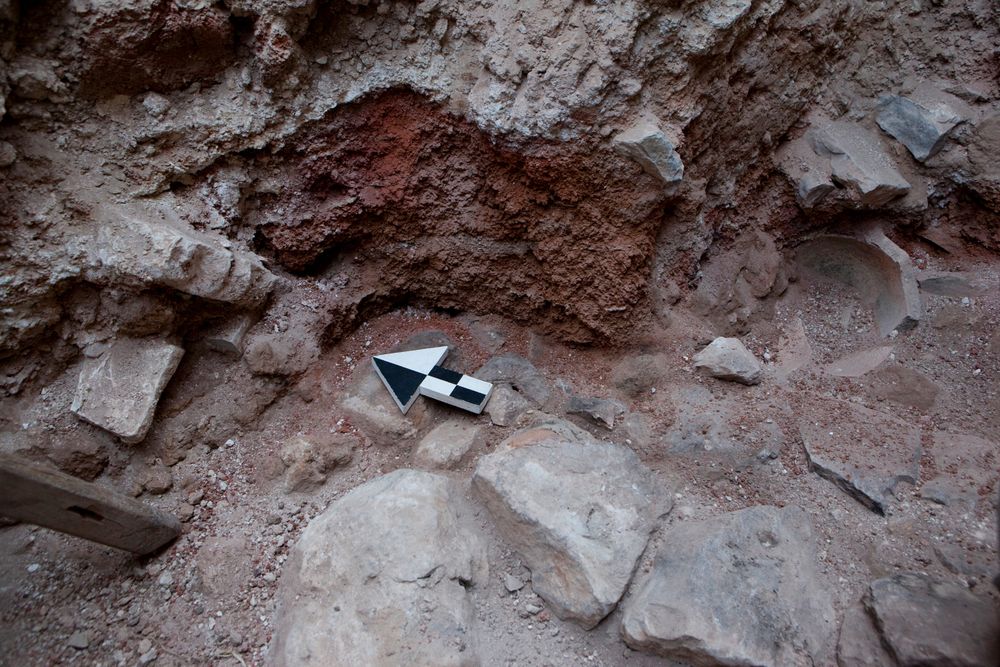

15 Jul, 2016 16H02159 MUDBRICK IN BALK OF 43/45
14 Jul, 2016 16H02152 BEGINNING OF 47-49

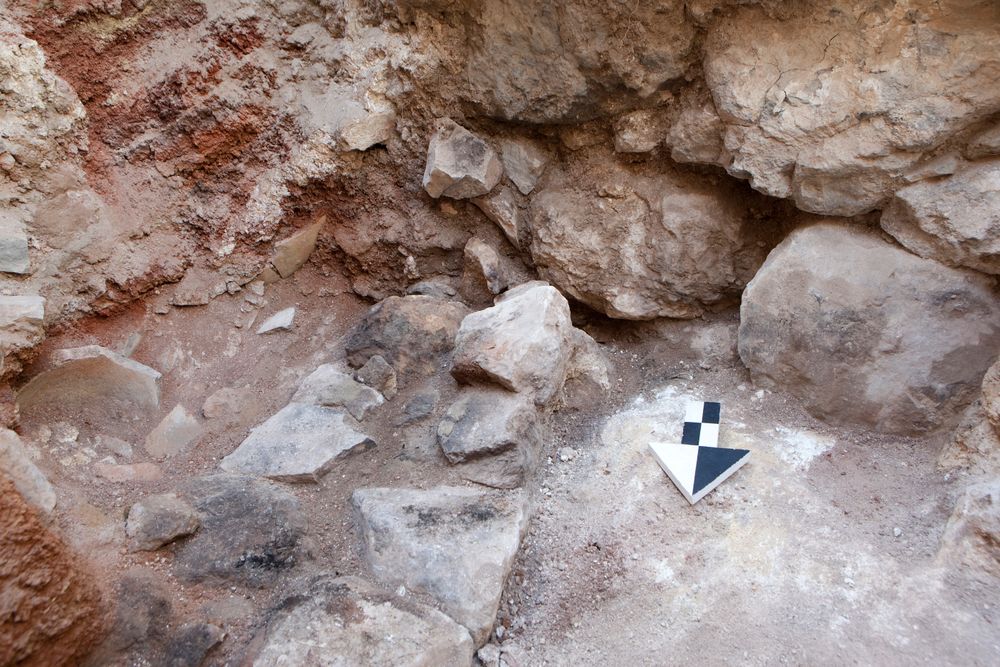

14 Jul, 2016 16H02153 BEGINNING OF 47-49

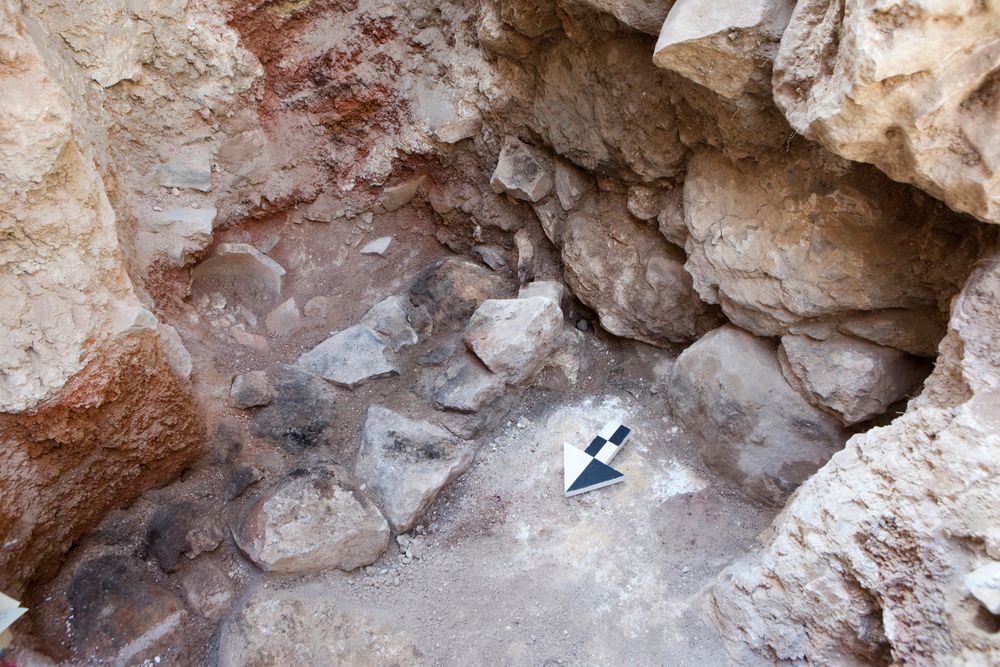

14 Jul, 2016 16H02154 BEGINNING OF 47-49

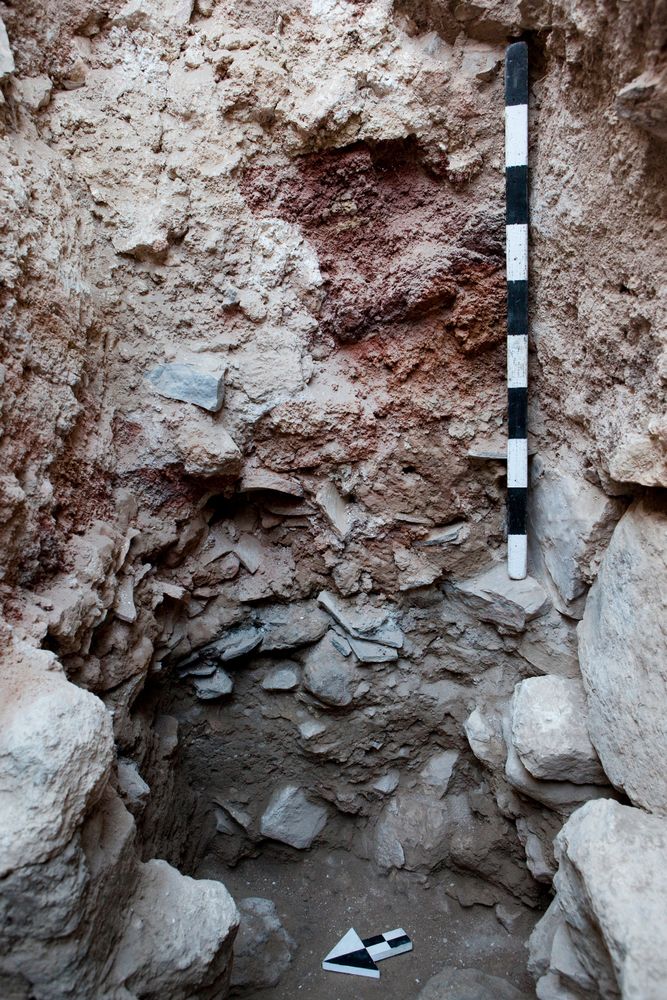

27 Jul, 2016 16H02264 FINAL
