Locus H.7K02.002
General Information
Locus Type:
Architecture
Supervisor:
D. Mook; C. Tyson
Designation:
E-W wall
Reason:
Stones in a line
Top Separation:
Bottom Separation:
Very Clear
Start Date:
06 Jul, 1998
End Date:
14 Jul, 2016
Interpretation
Function:
Isolated wall with no surfaces or other walls connected to it
Stratigraphy remarks:
Cuts into earlier material of LIr2
Balk:
Phase:
Stratum :
Architecture Description
Material
chert Qualifier 1:
chert Qualifier 2:
chert Qualifier 3:
chert Percent:
0
Limestone Qualifier 1:
Hard
Limestone Qualifier 2:
Reused
Limesotne Qualifier 3:
Limestone Percent:
100
basalt Qualifier 1:
basalt Qualifier 2:
basalt Qualifier 3:
basalt Percent:
0
nari Qualifier 1:
nari Qualifier 2:
nari Qualifier 3:
nari Percent:
0
mudbrick Qualifier 1:
mudbrick Qualifier 2:
mudbrick Qualifier 3:
mudbrick Percent:
Arch Frags:
0
Fragment Type:
Quarry:
Wall Stones
Cobble (6-25 cm) %:
0
Small Boulder (25-50cm) %:
Medium Boulder (50-75cm) %:
0
Large Boulder (75-100cm) %:
0
Very Large Boulder (>1 m) %:
100
Chinkstones
Pebble (.2-6 cm) %:
0
Cobble (6-25 cm) %:
100
Fillstones: (in Rubble-filled Construction)
Cobble (6-25 cm) %:
0
Small Boulder (25-50cm) %:
0
Medium Boulder (50-75cm) %:
0
Large Boulder (75-100cm) %:
0
Very Large Boulder (>1 m) %:
0
Brick
Length (upper):
0.0
Length (lower):
0.0
Width (upper):
0.0
Width (lower):
0.0
Depth (upper):
0.0
Depth (lower):
0.0
Dressing: (Stone Only)
Unhewn %:
40
Semi-hewn %:
Dressed %:
30
Ashlar %:
0
Bossed %:
0
Tooling (Stone Only)
Upper Width:
0.0
Lower Width:
0.0
Upper Length:
0.0
Lower Length:
0.0
Sketch:
false
Photo:
false
Mortar
Dry-laid %:
100
Clay %:
0
Mud %:
0
Cement %:
0
Plaster %:
0
Average Thickness:
0.0
Facing
Facing:
Unfaced
Color:
Construction
Style:
Boulder & Chink
Support:
Free-standing
Tendencies:
Courses
Highest Count:
4
Lowest Count:
1
Random:
false
Rows
Highest Count:
1
Lowest Count:
0
Two with Rubble:
Random:
false
Measurements
Greatest Length in meters:
4.6
Greatest width in meters:
1.35
Smallest width in meters:
1.3
Greatest Height in meters:
1.8
Lowest Height in meters:
0.5
Orientation (degrees):
106
Dip (degrees):
0
Preservation
Preservation:
Foundation Only: Partial
Lean Direction (degrees):
0
Lean Degrees:
0
Top Foundation Level:
0.0
Remarks
Remarks:
May have slid N from matching construction to S Update 2016: The GPS point for the bottom of the wall (16H02027), which is the top elevation of wall 46, was taken approx. 40 cm to the N of 46 (=approx. 20 cm N of the bottom of 2) at about the right height. This was necessary because of how wall 2 hangs over wall 46.
Levels
| Location | Top Level | Bottom Level |
|---|---|---|
| 31 | 912.08 | 911.83 |
| 33 | 912.62 | 0 |
| 35 | 912.78 | 912.65 |
| 0 | 0 | 911.82 |
Stratigraphy
| Under | Earth layer | H7K02:001 |
| FT | FT | H7K02:021 |
| Sealed agnst by | Surface | H7K02:015 |
| Sealed agnst by | Surface | H7K02:035 |
| Sealed agnst by | Surface | H7K02:041 |
| Sealed agnst by | Earth layer | H7K02:036 |
| Sealed agnst by | Surface | 042 |
| Over | Earth layer | 043 |
| Over | Wall | 046 |
Pails
| Number | Date | Baskets | Total | Diagnostic | Published |
|---|
Photos
| Date | Photo Number | Subject | Photo |
|---|---|---|---|
| 27 Jul, 2016 | 16H02265 | FINAL |
|
| 27 Jul, 2016 | 16H02266 | FINAL |
|
| 18 Jul, 2016 | 16H02176 | PROGRESS |
|
| 15 Jul, 2016 | 16H02158 | PROGRESS |
|
| 14 Jul, 2016 | 16H02142 | PROGRESS |
|
| 14 Jul, 2016 | 16H02149 | BEGINNING OF 46 |
|
| 14 Jul, 2016 | 16H02150 | BEGINNING OF 46 |
|
| 14 Jul, 2016 | 16H02151 | BEGINNING OF 46 |
|
| 14 Jul, 2016 | 16H02152 | BEGINNING OF 47-49 |
|
| 13 Jul, 2016 | 16H02130 | PROGRESS |
|
| 12 Jul, 2016 | 16H02119 | PROGRESS |
|
| 12 Jul, 2016 | 16H02126 | BEGINNING OF 45 |
|
| 11 Jul, 2016 | 16H02109 | PROGRESS |
|
| 08 Jul, 2016 | 16H02095 | PROGRESS |
|
| 08 Jul, 2016 | 16H02101 | SURFACE 42 |
|
| 08 Jul, 2016 | 16H02106 | BEGINNING OF 43 |
|
| 07 Jul, 2016 | 16H02085 | PROGRESS |
|
| 30 Jul, 2014 | 14H02248 | FINAL |
|
| 28 Jul, 2014 | 14H02219 | PROGRESS |
|

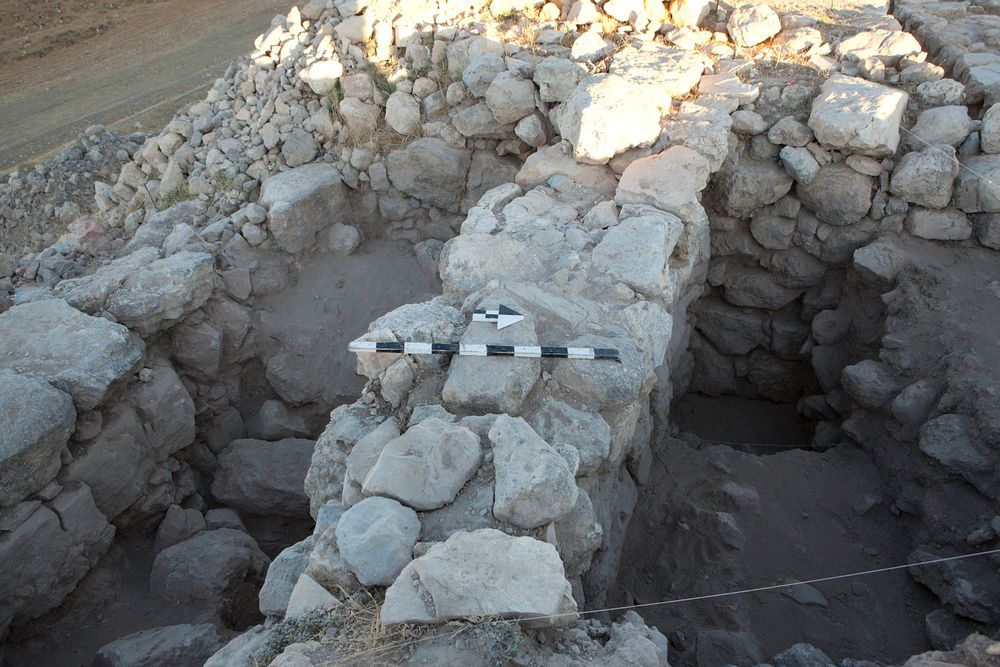

| 25 Jul, 2014 | 14H02208 | PROGRESS |
|

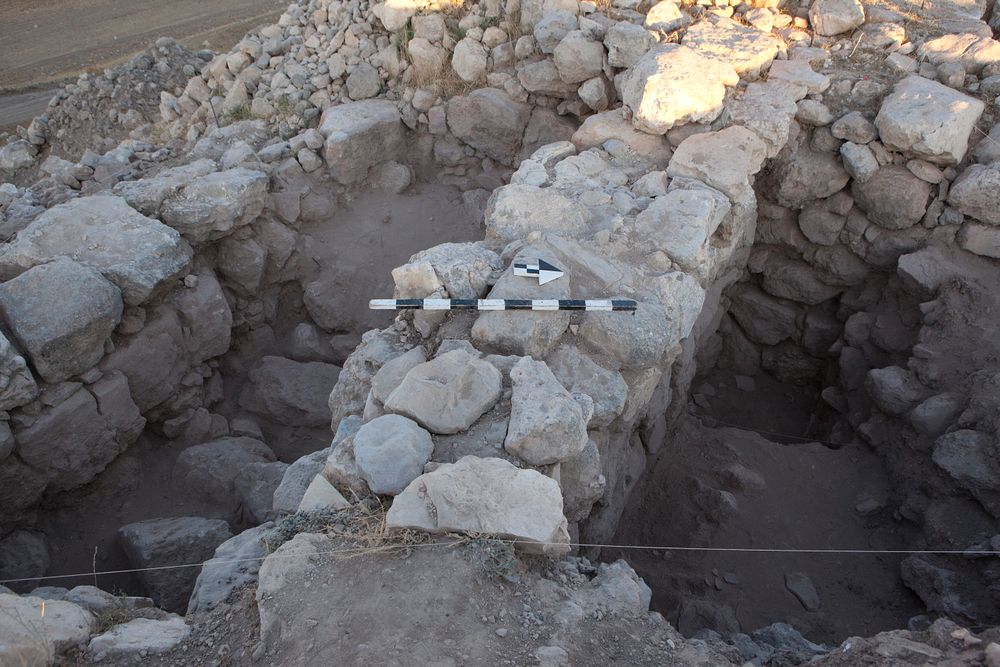

| 24 Jul, 2014 | 14H02194 | PROGRESS |
|

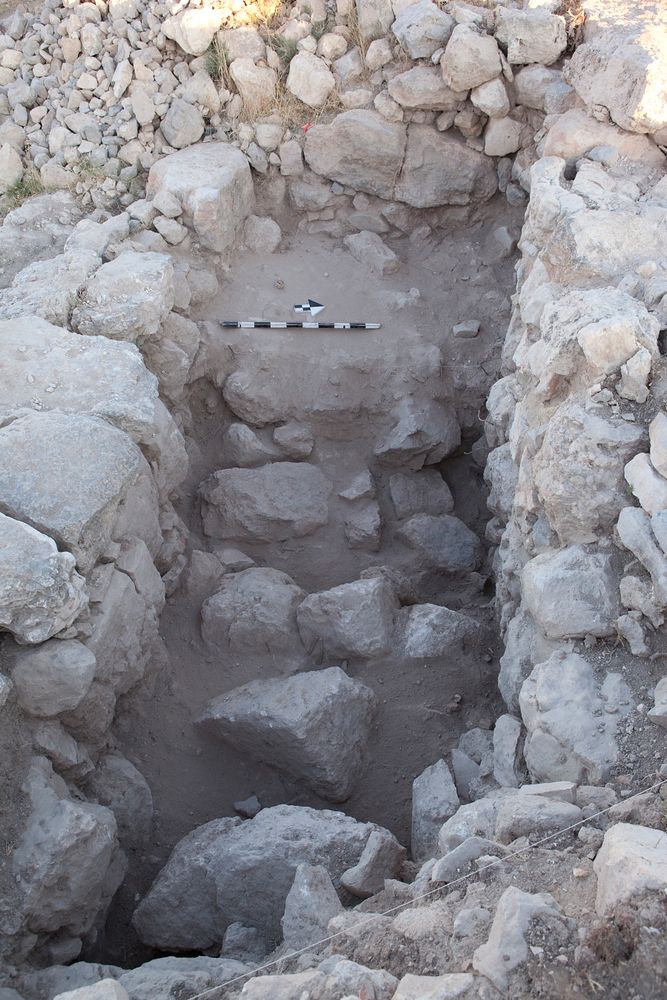

| 24 Jul, 2014 | 14H02195 | PROGRESS |
|
| 23 Jul, 2014 | 14H02184 | PROGRESS |
|
| 22 Jul, 2014 | 14H02174 | PROGRESS |
|
| 21 Jul, 2014 | 14H02162 | PROGRESS |
|
| 18 Jul, 2014 | 14H02152 | PROGRESS |
|
| 17 Jul, 2014 | 14H02141 | PROGRESS |
|
| 16 Jul, 2014 | 14H02131 | PROGRESS |
|
| 15 Jul, 2014 | 14H0122 | PROGRESS |
|
| 14 Jul, 2014 | 14H0113 | PROGRESS |
|
| 11 Jul, 2014 | 14H0102 | PROGRESS |
|
| 11 Jul, 2014 | 14H0103 | PROGRESS |
|
| 10 Jul, 2014 | 14H02091 | PROGRESS |
|
| 09 Jul, 2014 | 14H02080 | PROGRESS |
|
| 08 Jul, 2014 | 14H02062 | PROGRESS |
|
| 07 Jul, 2014 | 14H02060 | PROGRESS |
|

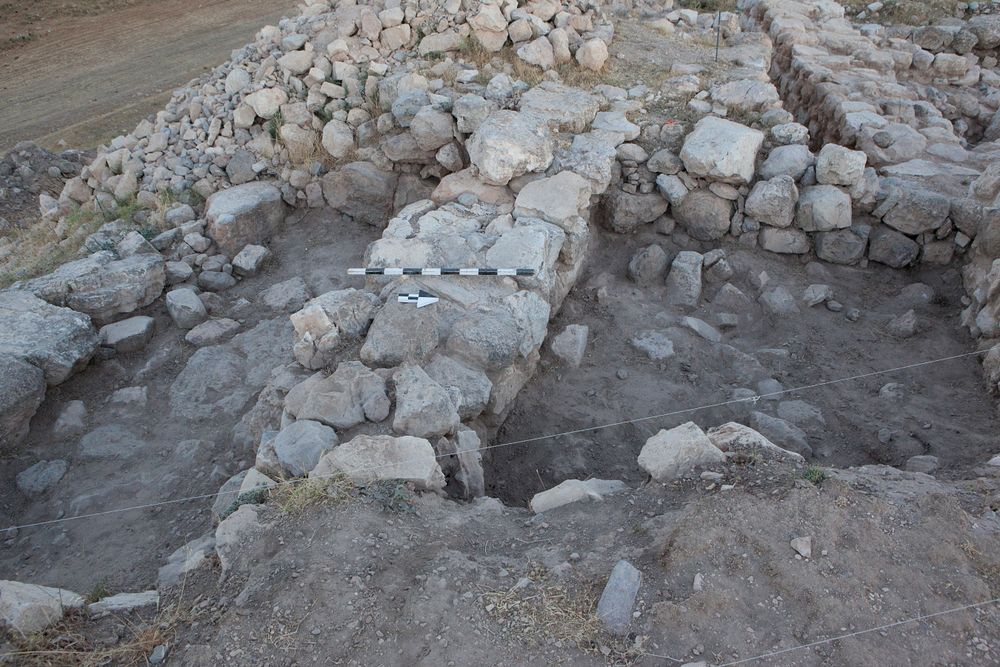

| 04 Jul, 2014 | 14H02045 | PROGRESS |
|

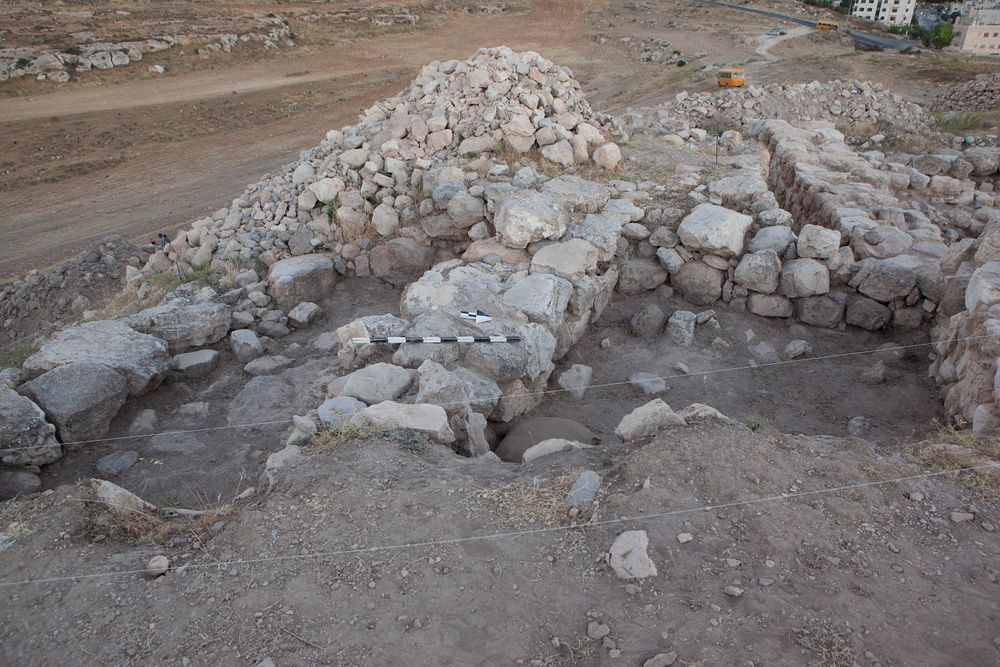

| 03 Jul, 2014 | 14H02036 | PROGRESS |
|

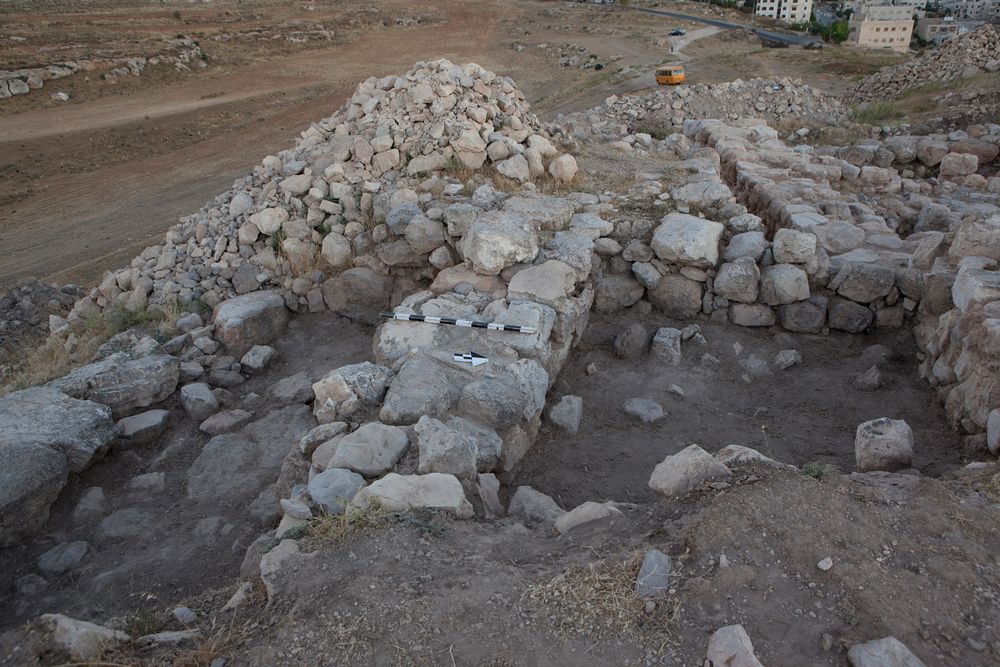

| 02 Jul, 2014 | 14H02027 | PROGRESS |
|

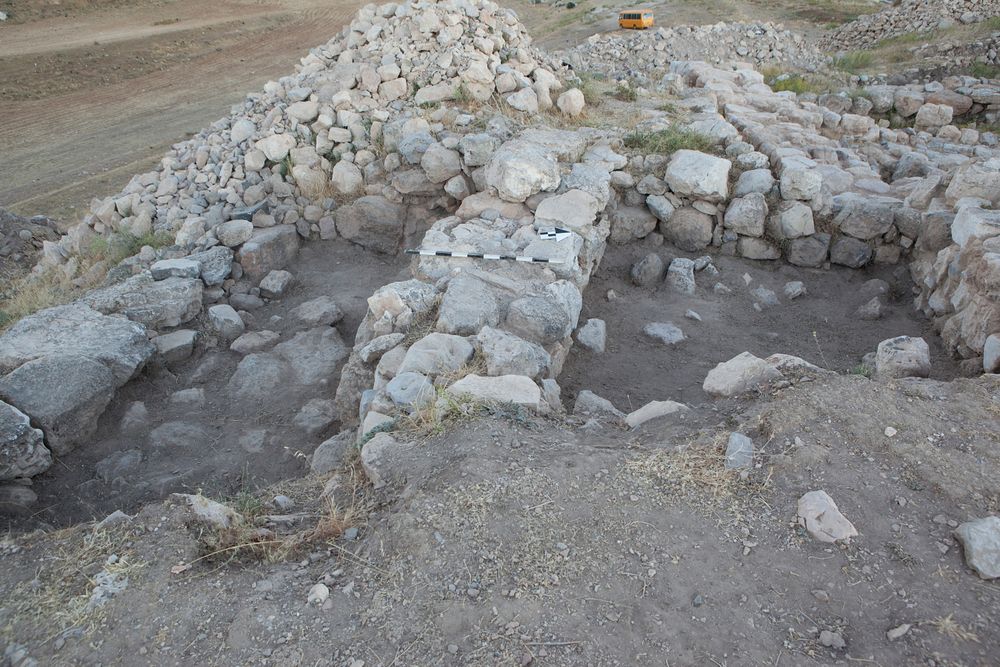

| 01 Jul, 2014 | 14H02023 | PROGRESS |
|

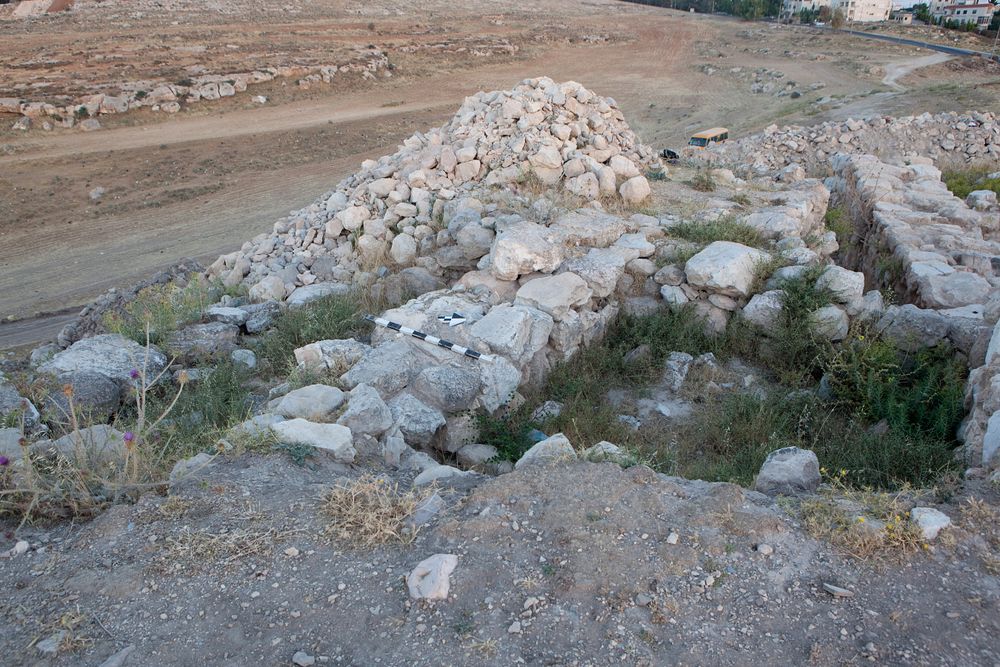

| 27 Jun, 2014 | 14H02008 | PROGRESS |
|
| 05 Aug, 1998 | 98H02485 | Final |
|
| 23 Jul, 1998 | 98H02318 | Progress |
|
| 22 Jul, 1998 | 98H02296 | Progress |
|
| 21 Jul, 1998 | 98H02275 | Progress |
|
| 20 Jul, 1998 | 98H02260 | Progress |
|
| 17 Jul, 1998 | 98H02245 | Progress |
|
| 16 Jul, 1998 | 98H02238 | Surface 18 & Pit 16 |
|
| 14 Jul, 1998 | 98H02203 | Wall 3 |
|
| 10 Jul, 1998 | 98H02161 | Progress |
|
| 09 Jul, 1998 | 98H02130 | Progress |
|
| 01 Jul, 1998 | 98H02086 | Progress |
|
| 27 Jul, 2016 | 16H02267 | FINAL |
|
