Locus F.7L08.064
General Information
Locus Type:
Architecture
Supervisor:
D. Hopkins
Designation:
E-W wall in W
Reason:
Stones in a line
Top Separation:
Bottom Separation:
Start Date:
31 Jul, 1989
End Date:
03 Aug, 1989
Interpretation
Function:
N side of long room of poss 4-room house formed by Walls 61 & 6L98:44
Stratigraphy remarks:
Wall continues into W balk & to lower elevations; standing for the deposition of 63, this wall was robbed out along to build Wall 59; however, this may have occurred at a later time since the extent of L 50 over 64 is not apparent; see height of Wall 6L98:44 for comparison; no FT found yet on N
Balk:
Phase:
Stratum :
Architecture Description
Material
chert Qualifier 1:
chert Qualifier 2:
chert Qualifier 3:
chert Percent:
0
Limestone Qualifier 1:
Hard
Limestone Qualifier 2:
Limesotne Qualifier 3:
Limestone Percent:
100
basalt Qualifier 1:
basalt Qualifier 2:
basalt Qualifier 3:
basalt Percent:
0
nari Qualifier 1:
nari Qualifier 2:
nari Qualifier 3:
nari Percent:
0
mudbrick Qualifier 1:
mudbrick Qualifier 2:
mudbrick Qualifier 3:
mudbrick Percent:
Arch Frags:
0
Fragment Type:
Quarry:
Wall Stones
Cobble (6-25 cm) %:
40
Small Boulder (25-50cm) %:
Medium Boulder (50-75cm) %:
0
Large Boulder (75-100cm) %:
0
Very Large Boulder (>1 m) %:
0
Chinkstones
Pebble (.2-6 cm) %:
40
Cobble (6-25 cm) %:
60
Fillstones: (in Rubble-filled Construction)
Cobble (6-25 cm) %:
0
Small Boulder (25-50cm) %:
0
Medium Boulder (50-75cm) %:
0
Large Boulder (75-100cm) %:
0
Very Large Boulder (>1 m) %:
0
Brick
Length (upper):
0.0
Length (lower):
0.0
Width (upper):
0.0
Width (lower):
0.0
Depth (upper):
0.0
Depth (lower):
0.0
Dressing: (Stone Only)
Unhewn %:
70
Semi-hewn %:
Dressed %:
0
Ashlar %:
0
Bossed %:
0
Tooling (Stone Only)
Upper Width:
0.0
Lower Width:
0.0
Upper Length:
0.0
Lower Length:
0.0
Sketch:
false
Photo:
false
Mortar
Dry-laid %:
100
Clay %:
0
Mud %:
0
Cement %:
0
Plaster %:
0
Average Thickness:
0.0
Facing
Facing:
Unfaced
Color:
Construction
Style:
Boulder & Chink
Support:
Free-standing
Tendencies:
Courses
Highest Count:
3
Lowest Count:
1
Random:
false
Rows
Highest Count:
0
Lowest Count:
2
Two with Rubble:
Random:
false
Measurements
Greatest Length in meters:
1.4
Greatest width in meters:
0.9
Smallest width in meters:
0.86
Greatest Height in meters:
0
Lowest Height in meters:
0
Orientation (degrees):
100
Dip (degrees):
0
Preservation
Preservation:
Partial Superstructure: Little
Lean Direction (degrees):
0
Lean Degrees:
0
Top Foundation Level:
0.0
Remarks
Remarks:
Had to be carefully dissected from rubble of which it appeared at first to be part
Levels
| Location | Top Level | Bottom Level |
|---|---|---|
| 25 | 906.21 | 0 |
| 25 | 906.27 | 0 |
| 25 | 906.81 | 0 |
| 26 | 906.35 | 0 |
| 31 | 906.79 | 0 |
| 32 | 906.33 | 0 |
| 67 | 906.79 | 0 |
| 86 | 906.35 | 0 |
| 88 | 906.55 | 0 |
| 95 | 906.91 | 0 |
Stratigraphy
| Under | Earth layer | F7L08:044 |
| Sealed agnst by | Earth layer | F7L08:066 |
| Bonded to | Wall | F7L08:061 |
| Abuts | Wall | F7L08:061 |
| Sealed agnst by | Earth layer | F7L08:073 |
| Sealed agnst by | Earth layer | F7L08:081 |
| Sealed agnst by | Earth layer | F7L08:070 |
| Sealed agnst by | Earth layer | F7L08:080 |
| Sealed agnst by | Earth layer | F7L08:082 |
| Sealed agnst by | Earth layer | F7L08:083 |
Pails
| Number | Date | Baskets | Total | Diagnostic | Published |
|---|
Photos
| Date | Photo Number | Subject | Photo |
|---|---|---|---|

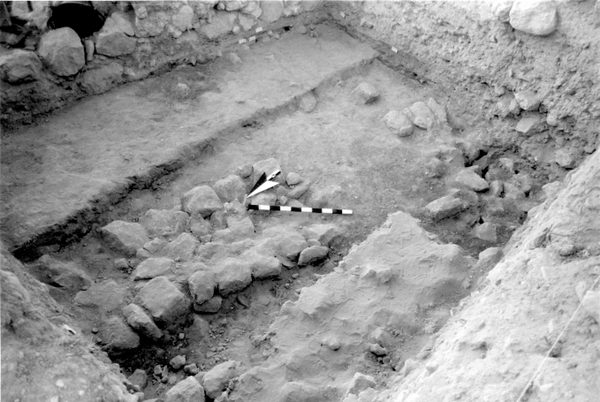

| 28 Jul, 1989 | 89F08497 | Progress |
|

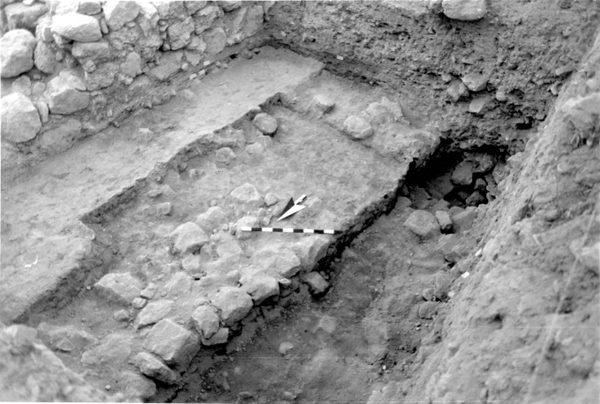

| 31 Jul, 1989 | 89F08498 | Progress |
|
| 01 Aug, 1989 | 89F08499 | Progress |
|

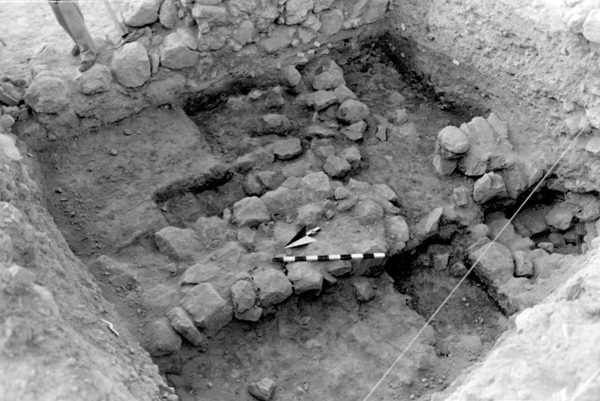

| 02 Aug, 1989 | 89F08500 | Progress |
|

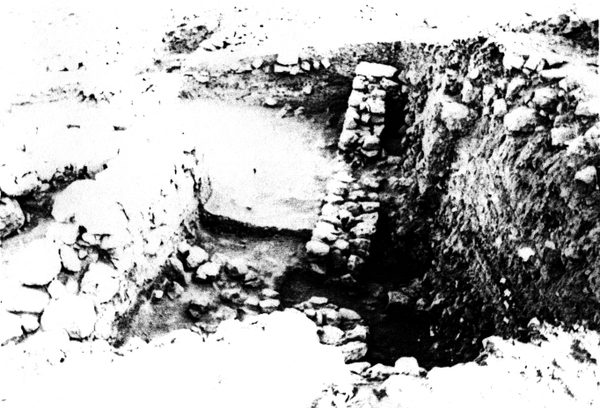

| 03 Aug, 1989 | 89F08501 | Progress |
|

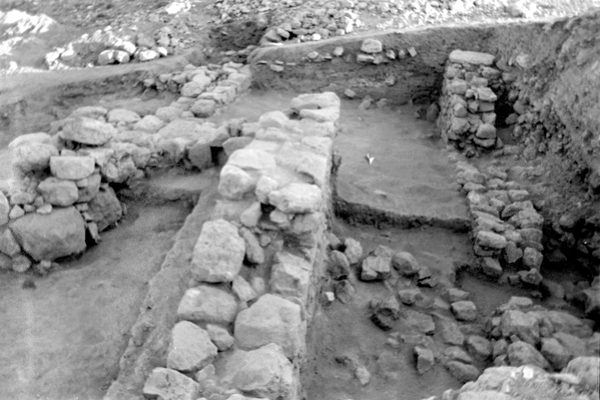

| 04 Aug, 1989 | 89F08502 | Final from N |
|

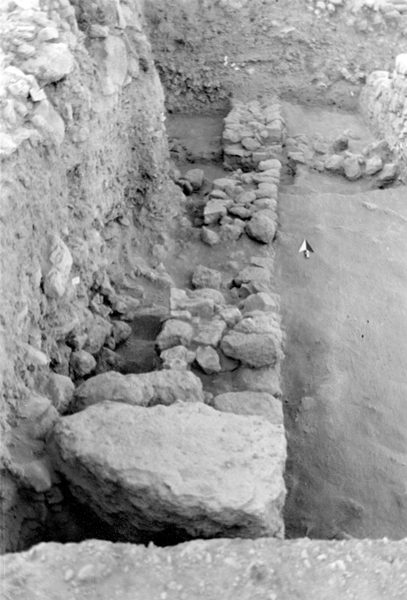

| 04 Aug, 1989 | 89F08503 | Final from S |
|
| 25 Jun, 1992 | 92F08353 | Progress |
|
| 26 Jun, 1992 | 92F08354 | Progress |
|
| 29 Jun, 1992 | 92F08355 | Progress |
|
| 30 Jun, 1992 | 92F08356 | Progress |
|

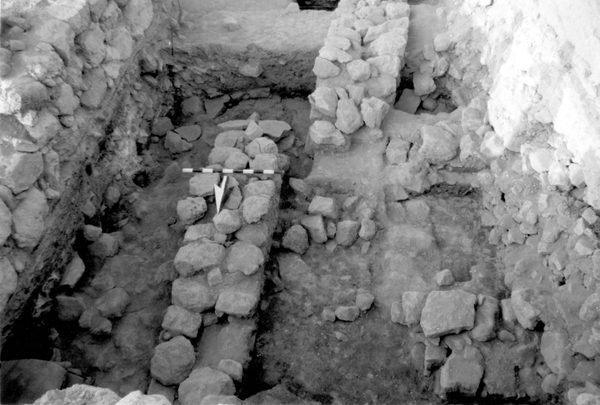

| 06 Jul, 1992 | 92F08361 | Progress |
|

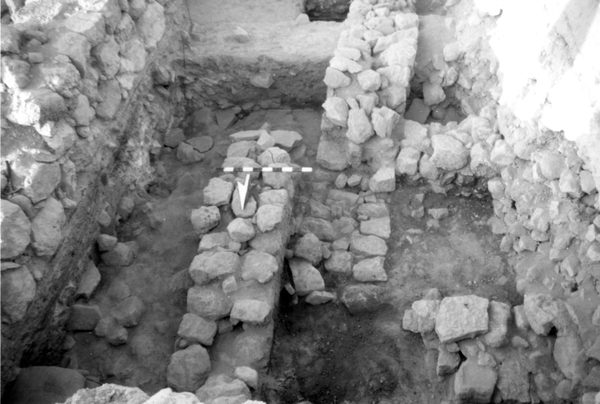

| 07 Jul, 1992 | 92F08362 | Progress |
|
| 09 Jul, 1992 | 92F08363 | Progress |
|
| 10 Jul, 1992 | 92F08364 | Progress |
|

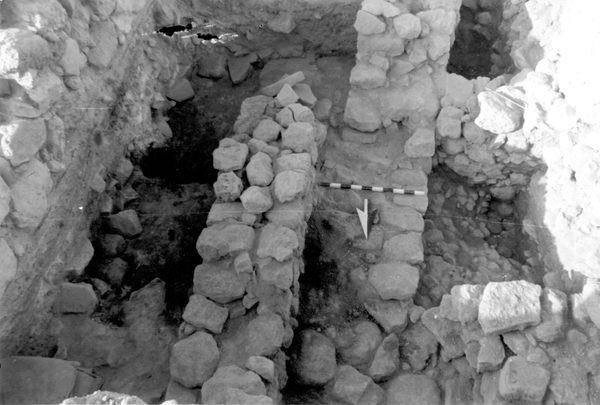

| 11 Jul, 1992 | 92F08365 | Progress |
|
| 14 Jul, 1992 | 92F08366 | Progress |
|
| 15 Jul, 2009 | 92F08367 | Progress |
|
| 16 Jul, 1992 | 92F08368 | Progress |
|
| 17 Jul, 1992 | 92F08369 | Progress |
|
| 18 Jul, 1992 | 92F08370 | Progress |
|
| 19 Jul, 1992 | 92F08-326 | Progress |
|
| 22 Jul, 1992 | 92F08372 | Progress |
|
