Locus D.5K87.013

Architecture · E-W wall built against the S face of Wall 14

General Information

Locus Type Architecture
Supervisor H. Curvers
Designation E-W wall built against the S face of Wall 14
Reason Isolating phases of wall at E balk
Top Separation Clear
Bottom Separation Clear
Start Date 13 July, 1984
End Date 28 July, 1989

Interpretation

Function N wall of domestic building in E
Stratigraphy remarks Built on Surf 17, against Wall 14A together with Wall 6; 20/24 was a occupational surface; Surf 18 was a destruction layer with rock tumble of Wall 6 & Wall 13; 20/24 is at same level as Surf 17; dug into 16, 12, & 20(?); builders used Wall 14A as a protection wall; floor may be Surfs 18 & 20
Balk
Phase
Stratum

Architecture Description

Material

chert Qualifier 1:

chert Qualifier 2:

chert Qualifier 3:

chert Percent:

0

Limestone Qualifier 1:

Hard

Limestone Qualifier 2:

Limesotne Qualifier 3:

Limestone Percent:

100

basalt Qualifier 1:

basalt Qualifier 2:

basalt Qualifier 3:

basalt Percent:

0

nari Qualifier 1:

nari Qualifier 2:

nari Qualifier 3:

nari Percent:

0

mudbrick Qualifier 1:

mudbrick Qualifier 2:

mudbrick Qualifier 3:

mudbrick Percent:

Arch Frags:

0

Fragment Type:

Quarry:

Wall Stones

Cobble (6-25 cm) %:

100

Small Boulder (25-50cm) %:

Medium Boulder (50-75cm) %:

0

Large Boulder (75-100cm) %:

0

Very Large Boulder (>1 m) %:

0

Chinkstones

Pebble (.2-6 cm) %:

100

Cobble (6-25 cm) %:

0

Fillstones: (in Rubble-filled Construction)

Cobble (6-25 cm) %:

0

Small Boulder (25-50cm) %:

0

Medium Boulder (50-75cm) %:

0

Large Boulder (75-100cm) %:

0

Very Large Boulder (>1 m) %:

0

Brick

Length (upper):

0.0

Length (lower):

0.0

Width (upper):

0.0

Width (lower):

0.0

Depth (upper):

0.0

Depth (lower):

0.0

Dressing: (Stone Only)

Unhewn %:

100

Semi-hewn %:

Dressed %:

0

Ashlar %:

0

Bossed %:

0

Tooling (Stone Only)

Upper Width:

0.0

Lower Width:

0.0

Upper Length:

0.0

Lower Length:

0.0

Sketch:

false

Photo:

false

Mortar

Dry-laid %:

100

Clay %:

0

Mud %:

0

Cement %:

0

Plaster %:

0

Average Thickness:

0.0

Facing

Facing:

Unfaced

Color:

Construction

Style:

Boulder & Chink

Support:

Battered

Tendencies:

Courses

Highest Count:

0

Lowest Count:

7

Random:

true

Rows

Highest Count:

0

Lowest Count:

1

Two with Rubble:

Random:

true

Measurements

Greatest Length in meters:

2.1

Greatest width in meters:

0.65

Smallest width in meters:

0.5

Greatest Height in meters:

0.8

Lowest Height in meters:

0.35

Orientation (degrees):

112

Dip (degrees):

0

Preservation

Preservation:

Foundation Only: Complete

Lean Direction (degrees):

208

Lean Degrees:

8

Top Foundation Level:

Remarks

Remarks:

E end included two steps down S into house

Levels

Location Top Level Bottom Level
22 897.44 897.09
23 897.9 897.09
34 897.44 0

Stratigraphy

Relationship Related to Related locus
Under Earth layer D5K87:001
Cuts Earth layer D5K87:012
Abutted by Wall D5K87:002
Sealed agnst by Surface D5K87:018
Sealed agnst by Surface D5K87:020
Over Earth layer D5K87:025
Abuts Wall D5K87:014
Abuts Wall D5K87:014
Abutted by Wall D5K87:006
Sealed agnst by Earth layer D5K87:024

Pails

Number Date Baskets Total Diagnostic Published

Photos

Date Photo Number Subject Photo
30 July, 1984 84D87515 Final--aerial
6 August, 1984 84D87744 Final from S
2 July, 1989 89D87367 Progress
20 July, 1984 84D87346 Walls
20 July, 1984 84D87347 Walls
20 July, 1984 84D87348 Walls
20 July, 1984 84D87349 Walls
24 July, 1984 84D87394 Progress
12 July, 1984 84D87218 FT2, Wall 2 & Surface 14
13 July, 1984 84D87236 Progress
10 July, 1984 84D87177 Progress
11 July, 1984 84D87198 Progress
12 July, 1984 84D87215 Progress
12 July, 1984 84D87219 Walls 6, 13, 14 & corner
12 July, 1984 84D87219 Walls 6, 13, 14 & corner
16 July, 1984 84D87256 Progress
17 July, 1984 84D87282 Progress
19 July, 1984 84D76329 Progress
20 July, 1984 84D87345 Progress

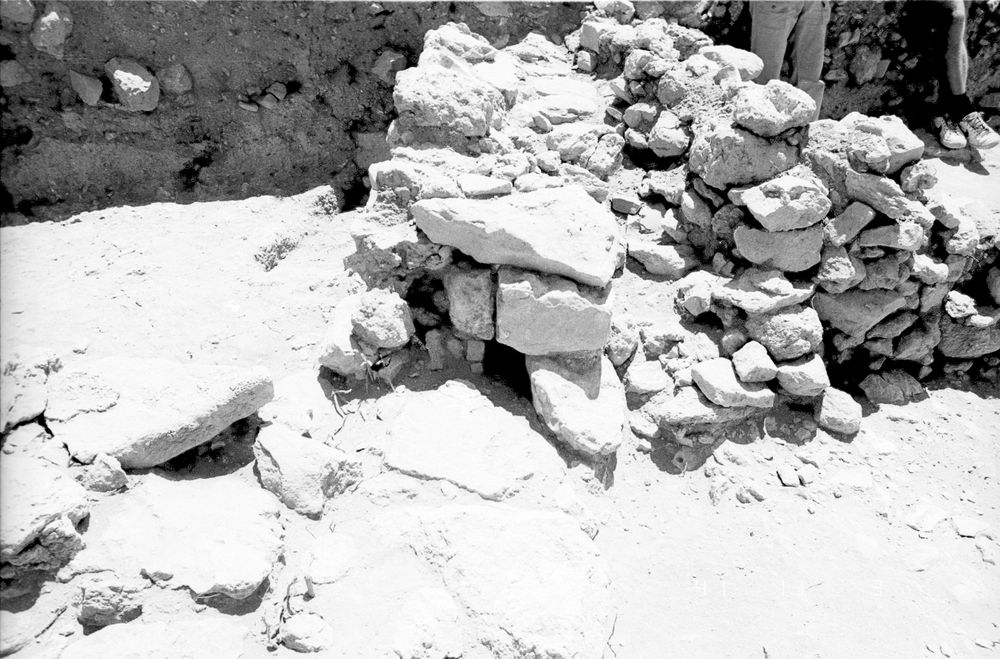

3 August, 1984 84D87647 Wear on left (w) end of first step

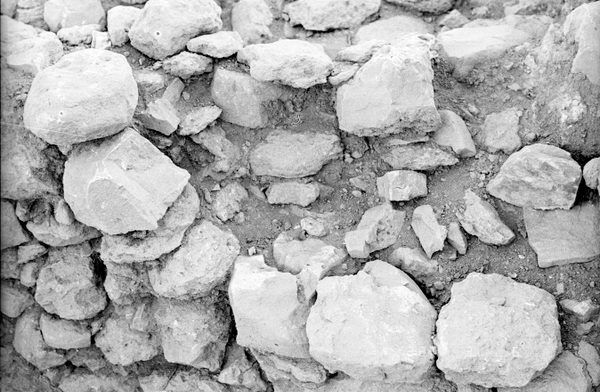

6 August, 1984 84D87745 Med. Closeup of two steps.
18 July, 1984 84D87305 Progress
5 August, 1984 84D86686
5 August, 1984 84D77687
28 June, 1989 89D87365 Cleanup
29 June, 1989 89D87366 Progress

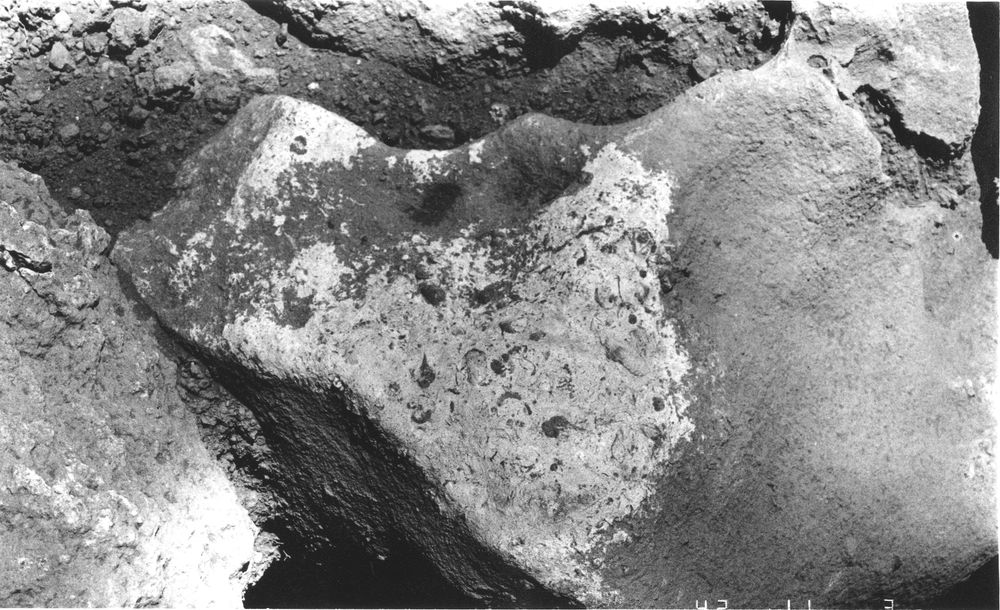

3 August, 1984 84D87648 Wear on stepping stone
27 June, 1989 891D88600 Cleanup
3 July, 1987 872D87006 Progress
5 August, 1984 84D77688 Final Field
