Locus B.8K00.014
General Information
Locus Type:
Architecture
Supervisor:
B. Reiswig
Designation:
W wall of LB building
Reason:
Stones in a clear line
Top Separation:
Average
Bottom Separation:
Clear
Start Date:
11 Jul, 1996
End Date:
29 Jul, 2008
Interpretation
Function:
W wall of LB building; rubbly nature of wall on E face may inciate severe earthquake damage; battered into MB rampart near crest
Stratigraphy remarks:
LB layers run up to it on E; MB layers run up to lowest courses on W; poss 2 phases; poss earthquake damage may have disrupted evidence for a FT on W side; if 2 phases: upper, side wall would be LB; narrower sections may be MB
Balk:
Phase:
Stratum :
Architecture Description
Material
chert Qualifier 1:
chert Qualifier 2:
chert Qualifier 3:
chert Percent:
0
Limestone Qualifier 1:
None
Limestone Qualifier 2:
Limesotne Qualifier 3:
Limestone Percent:
100
basalt Qualifier 1:
basalt Qualifier 2:
basalt Qualifier 3:
basalt Percent:
0
nari Qualifier 1:
nari Qualifier 2:
nari Qualifier 3:
nari Percent:
0
mudbrick Qualifier 1:
mudbrick Qualifier 2:
mudbrick Qualifier 3:
mudbrick Percent:
Arch Frags:
0
Fragment Type:
Quarry:
Wall Stones
Cobble (6-25 cm) %:
0
Small Boulder (25-50cm) %:
Medium Boulder (50-75cm) %:
0
Large Boulder (75-100cm) %:
10
Very Large Boulder (>1 m) %:
0
Chinkstones
Pebble (.2-6 cm) %:
0
Cobble (6-25 cm) %:
100
Fillstones: (in Rubble-filled Construction)
Cobble (6-25 cm) %:
0
Small Boulder (25-50cm) %:
0
Medium Boulder (50-75cm) %:
0
Large Boulder (75-100cm) %:
0
Very Large Boulder (>1 m) %:
0
Brick
Length (upper):
0.0
Length (lower):
0.0
Width (upper):
0.0
Width (lower):
0.0
Depth (upper):
0.0
Depth (lower):
0.0
Dressing: (Stone Only)
Unhewn %:
100
Semi-hewn %:
Dressed %:
0
Ashlar %:
0
Bossed %:
0
Tooling (Stone Only)
Upper Width:
0.0
Lower Width:
0.0
Upper Length:
0.0
Lower Length:
0.0
Sketch:
false
Photo:
false
Mortar
Dry-laid %:
100
Clay %:
0
Mud %:
0
Cement %:
0
Plaster %:
0
Average Thickness:
0.0
Facing
Facing:
Unfaced
Color:
Construction
Style:
Boulder & Chink
Support:
Free-standing
Tendencies:
Courses
Highest Count:
0
Lowest Count:
15
Random:
false
Rows
Highest Count:
4
Lowest Count:
3
Two with Rubble:
Random:
false
Measurements
Greatest Length in meters:
3
Greatest width in meters:
1.8
Smallest width in meters:
1.34
Greatest Height in meters:
0.5
Lowest Height in meters:
0.3
Orientation (degrees):
25
Dip (degrees):
0
Preservation
Preservation:
Partial Superstructure: Most
Lean Direction (degrees):
0
Lean Degrees:
0
Top Foundation Level:
Remarks
Remarks:
Bottom not yet reached by U02
Levels
| Location | Top Level | Bottom Level |
|---|---|---|
| 10 | 912.48 | 0 |
| 11 | 912.82 | 0 |
| 16 | 912.08 | 0 |
| 17 | 912.13 | 0 |
Stratigraphy
| Under | Earth layer | B8K00:018 |
| Sealed agnst by | Earth layer | B8K00:032 |
| Sealed agnst by | Earth layer | B8K00:033 |
| Under | Earth layer | B8K00:017 |
| Sealed agnst by | Earth layer | B8K00:008 |
| Sealed agnst by | Earth layer | B8K00:016 |
| Bonded to | Wall | B8K00:009 |
| Sealed agnst by | Earth layer | B8K00:016 |
| Over | B8K00:038 |
Pails
| Number | Date | Baskets | Total | Diagnostic | Published |
|---|
Photos
| Date | Photo Number | Subject | Photo |
|---|---|---|---|
| 29 Jun, 1998 | 98B00014 | Progress |
|

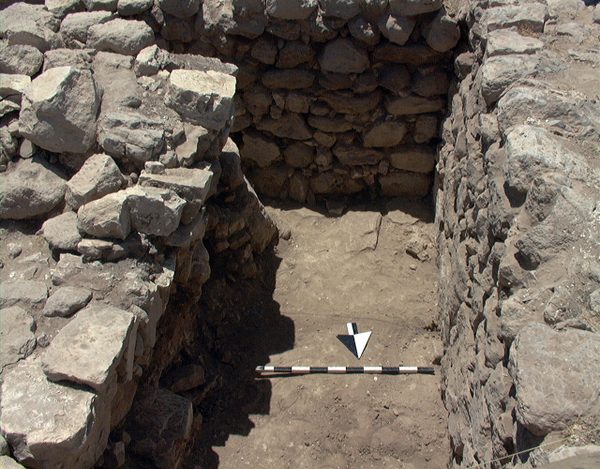

| 08 Jul, 1998 | 98B00138 | Progress |
|

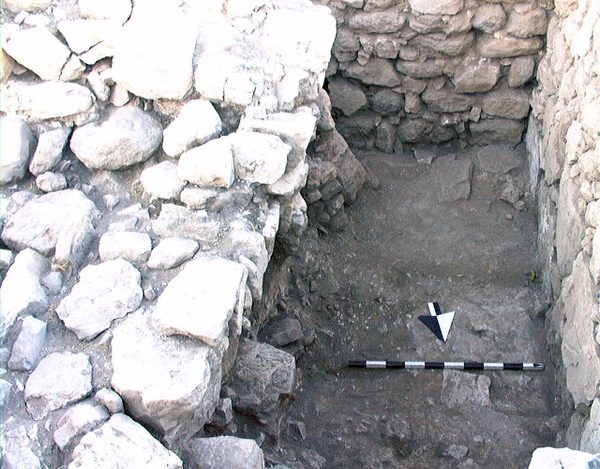

| 09 Jul, 1998 | 98B00152 | Progress |
|
| 24 Jul, 1998 | 98B00346 | Progress |
|

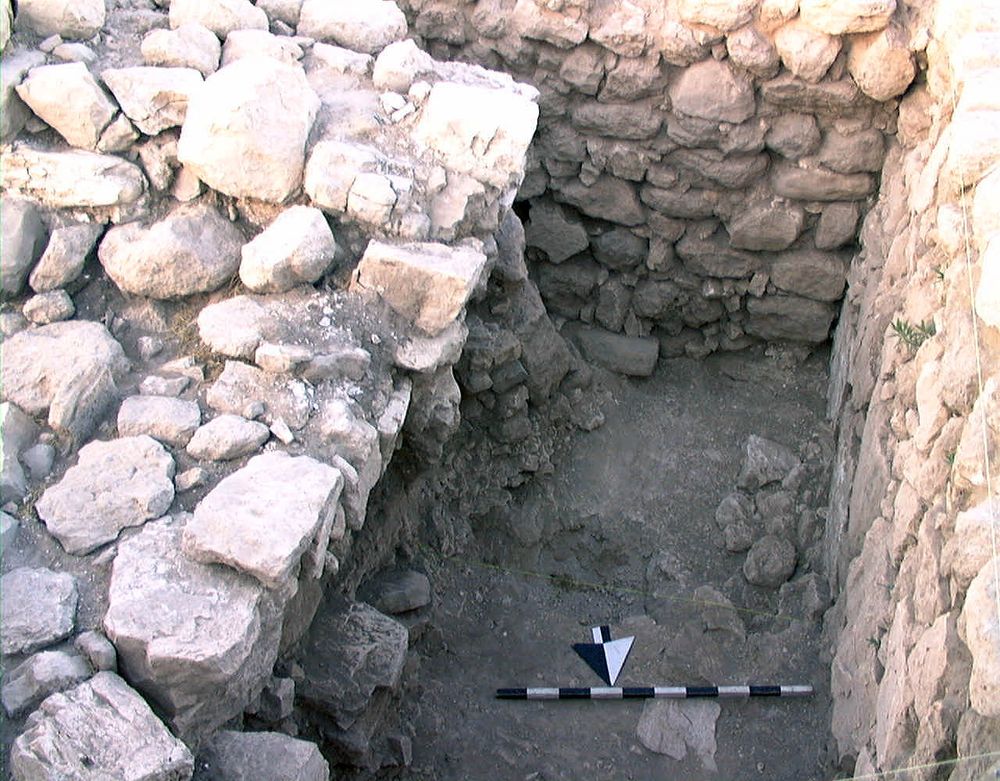

| 27 Jul, 1998 | 98B00364 | Progress |
|
| 28 Jul, 1998 | 98B00385 | Progress |
|
| 29 Jul, 1998 | 98B00403 | Progress |
|

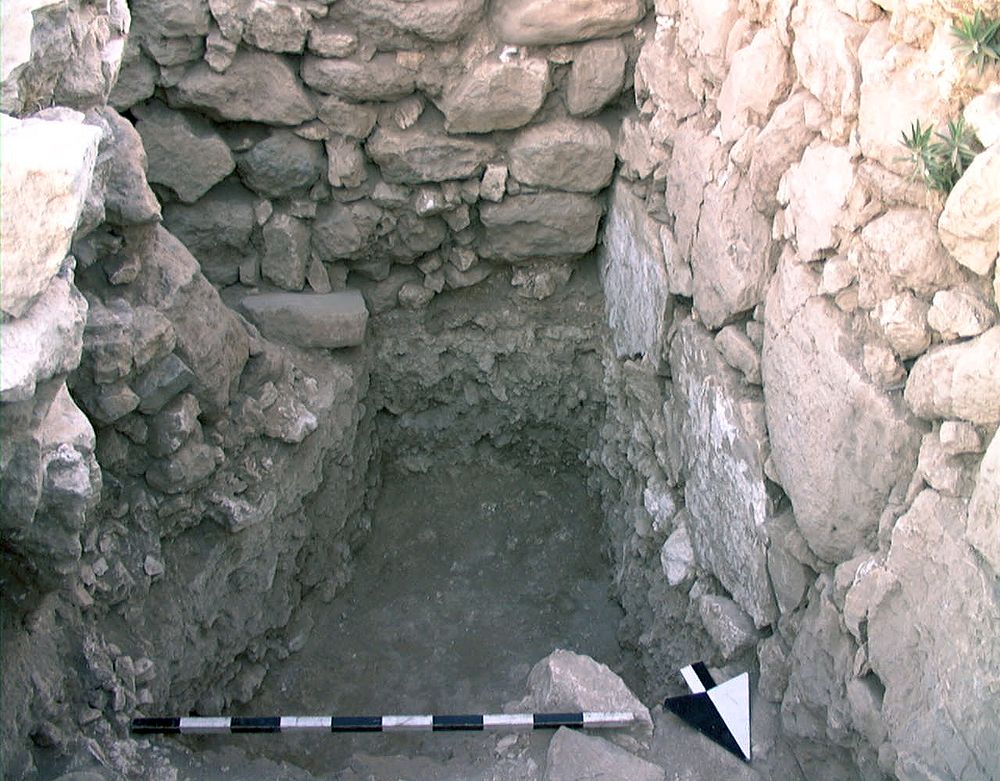

| 30 Jul, 1998 | 98B00426 | Rampart & walls from N |
|
| 30 Jul, 1998 | 98B00427 | Rampart layers from S |
|

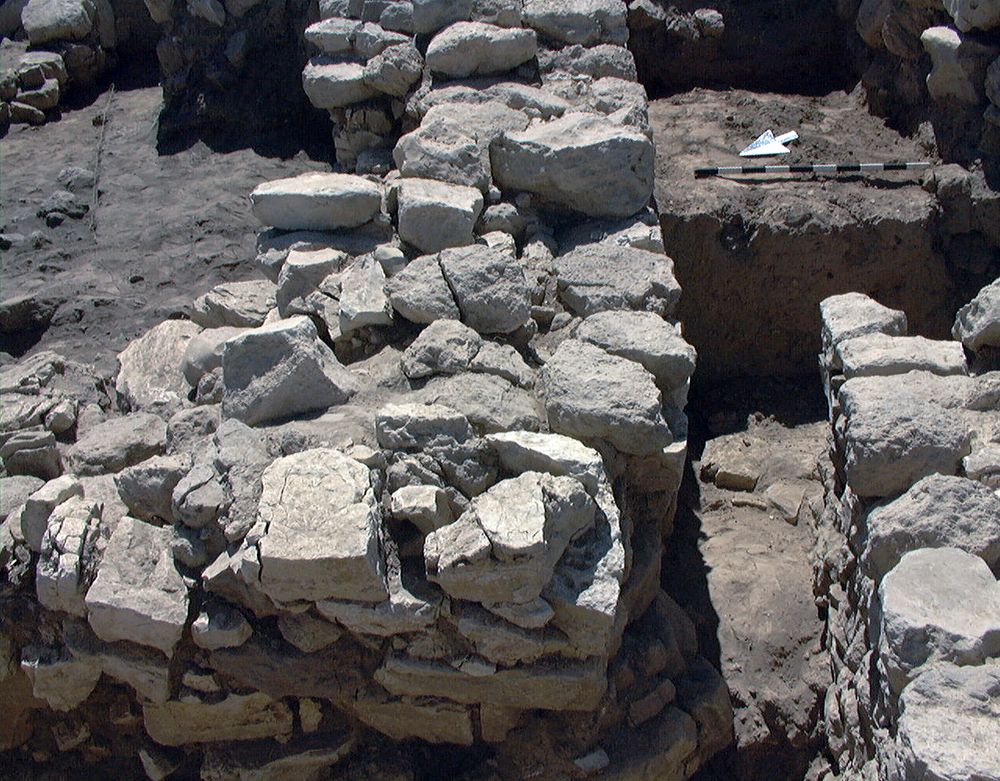

| 30 Jun, 1998 | 98B00034 | Progress |
|
| 31 Jul, 1998 | 98B00445 | Progress |
|

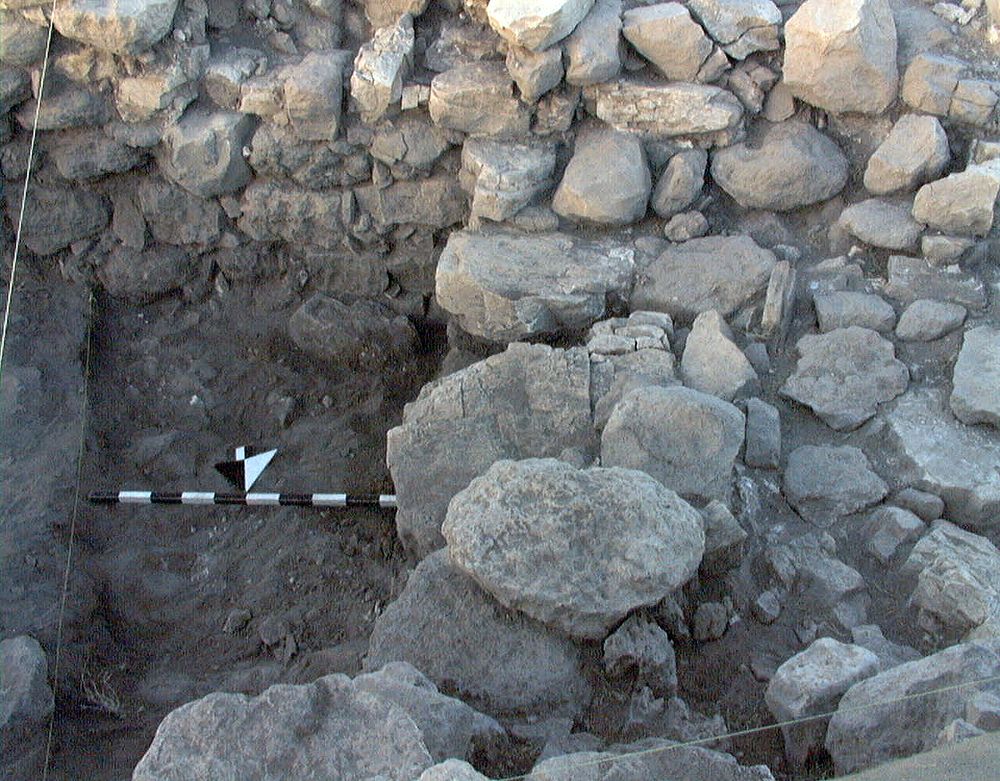

| 10 Jul, 1998 | 98B00171 | Progress |
|

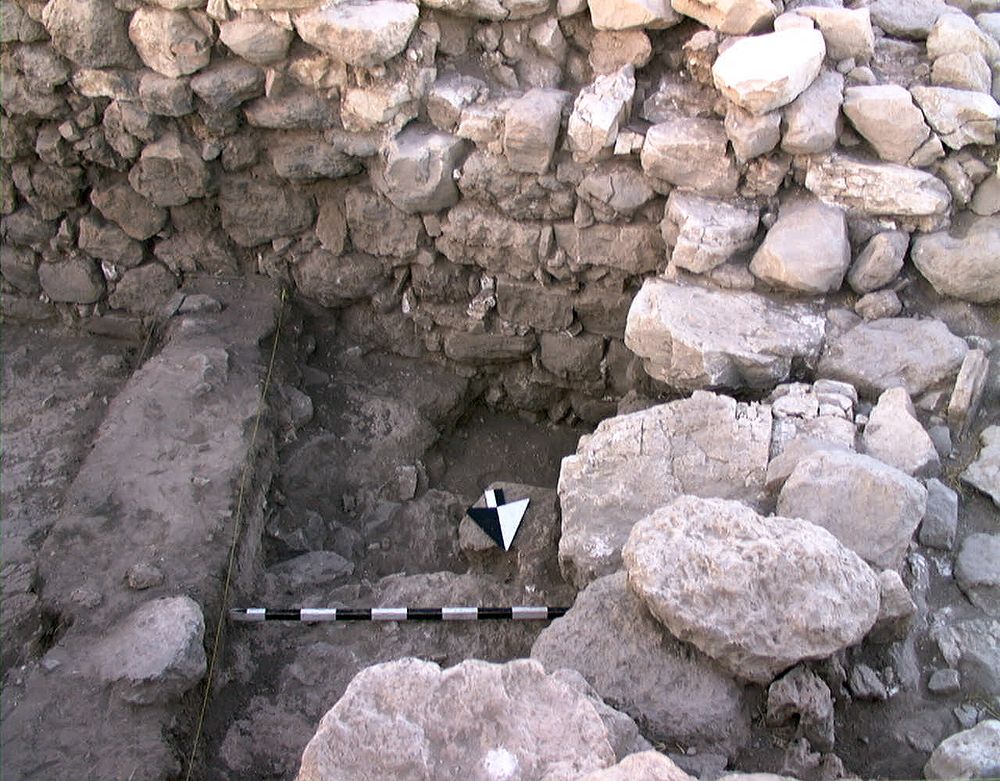

| 13 Jul, 1998 | 98B00190 | Progress |
|
| 14 Jul, 1998 | 98B00202 | Progress |
|
| 30 Jul, 1998 | 98B00421 | Progress |
|
| 26 Jun, 2000 | 00B00012 | Pre-excavation |
|
| 27 Jun, 2000 | 00B00026 | Progress |
|
| 28 Jun, 2000 | 00B00045 | Progress |
|

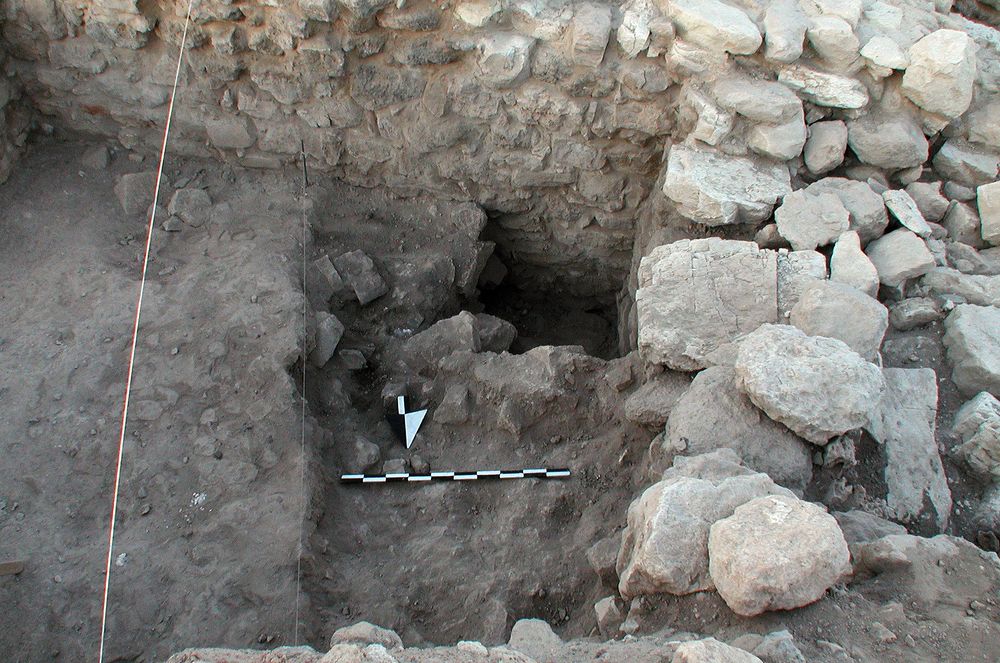

| 29 Jun, 2000 | 00B00072 | Progress |
|
| 30 Jun, 2000 | 00B00092 | Progress |
|
| 03 Jul, 2000 | 00B00114 | Progress |
|
| 06 Jul, 2000 | 00B00161 | Progress |
|
| 07 Jul, 2000 | 00B00187 | Progress |
|

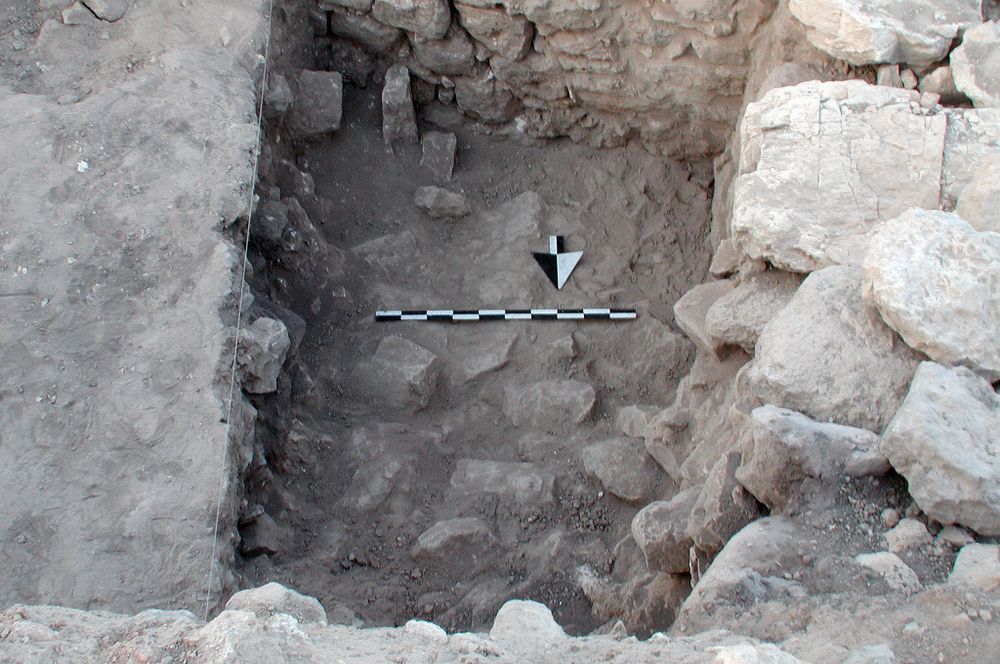

| 10 Jul, 2000 | 00B00214 | Progress |
|

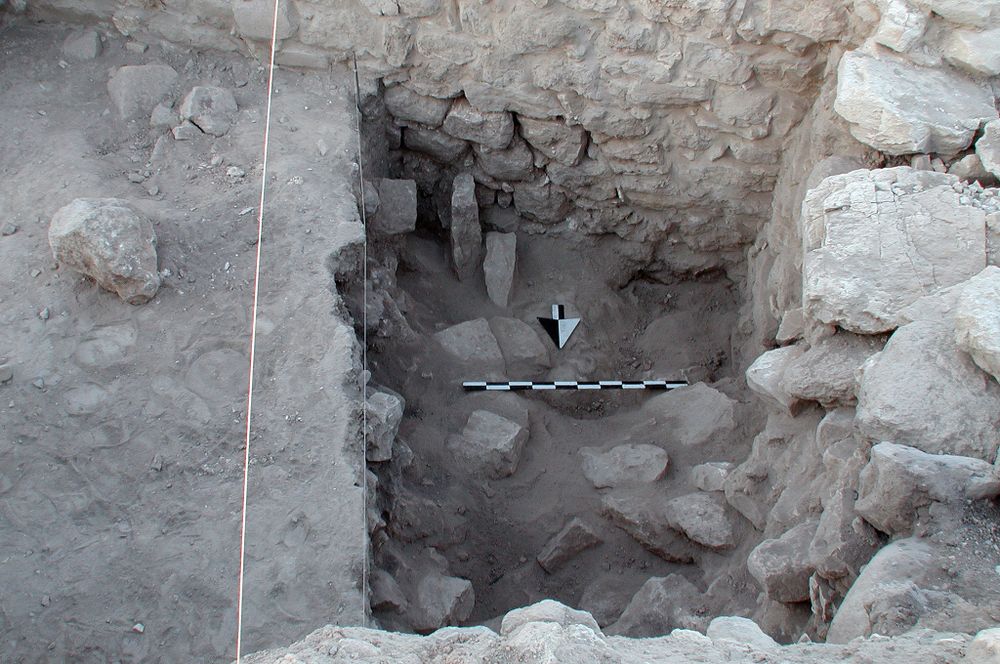

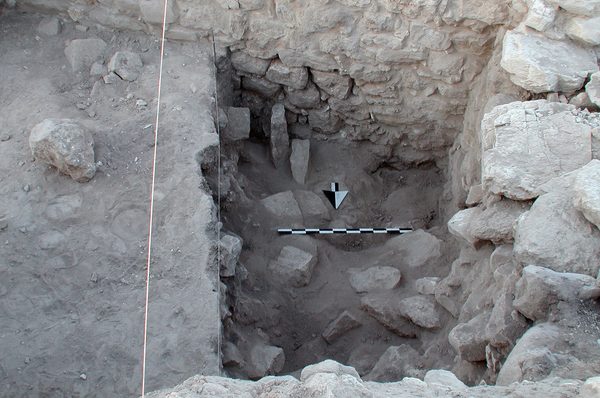

| 11 Jul, 2000 | 00B00233 | Progress |
|

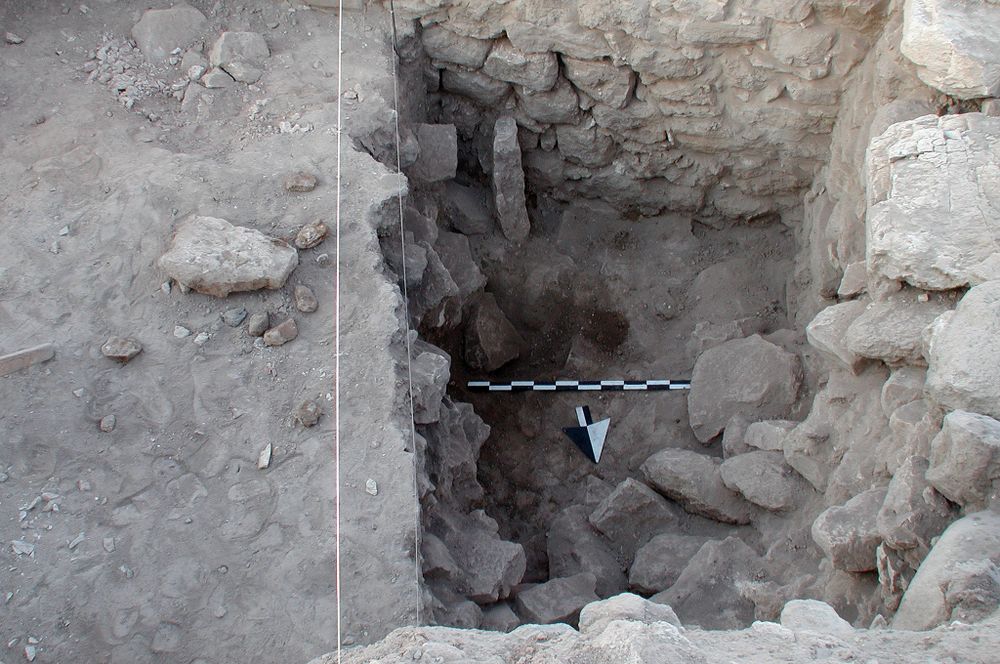

| 12 Jul, 2000 | 00B00256 | Progress |
|
| 13 Jul, 2000 | 00B00277 | Progress |
|
| 11 Jul, 1996 | 96B00146 | Progress |
|

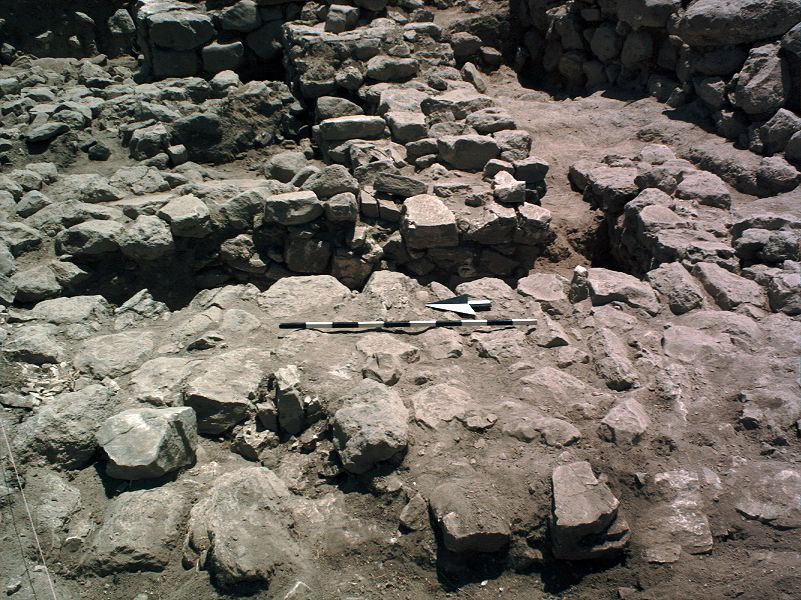

| 18 Jul, 1996 | 96B00152 | Progress |
|
| 19 Jul, 1996 | 96B00153 | Progress & L 17 |
|
| 24 Jul, 1996 | 96B00156 | Progress |
|

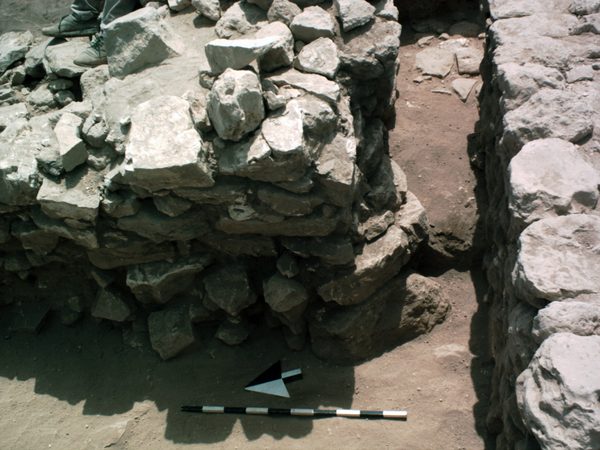

| 26 Jul, 1996 | 96B00158 | Wall 14 |
|

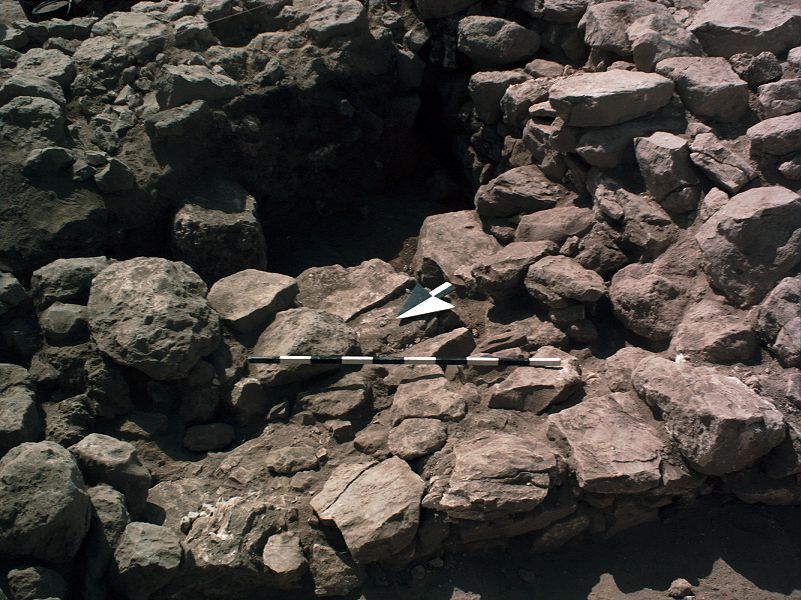

| 22 Jul, 1996 | 96B00154 | L.14 |
|

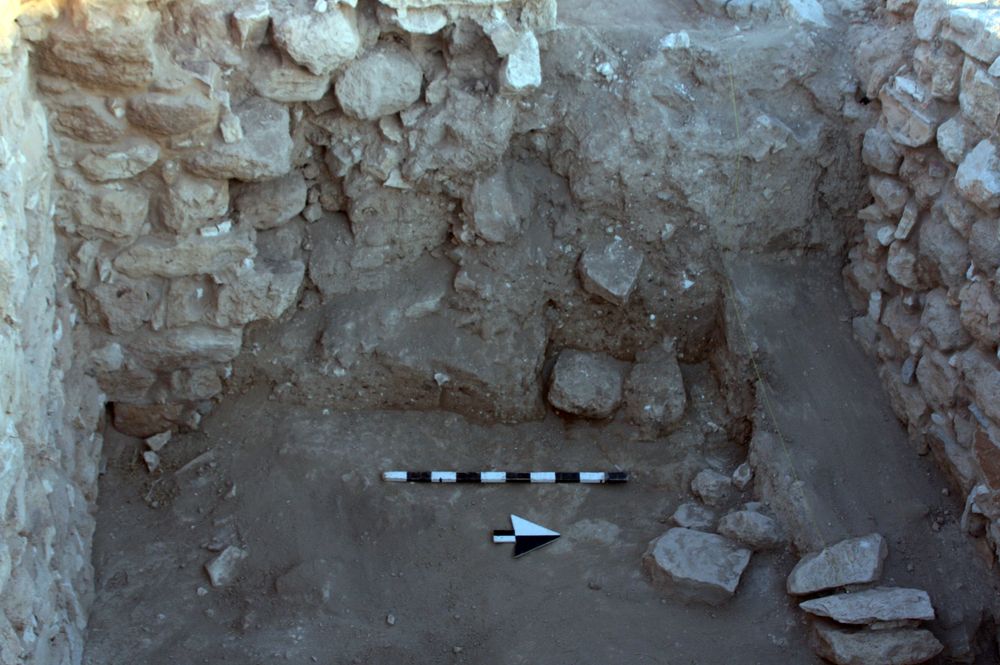

| 02 Jul, 2008 | 08B00073 | Progress |
|

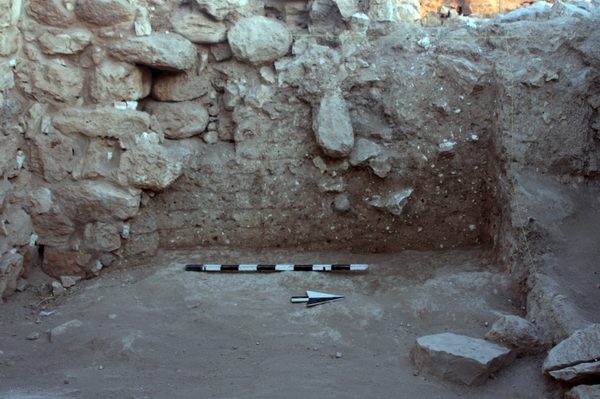

| 03 Jul, 2008 | 08B00097 | Progress |
|
| 04 Jul, 2008 | 08B00126 | Progress |
|
| 07 Jul, 2008 | 08B00149 | Progress |
|

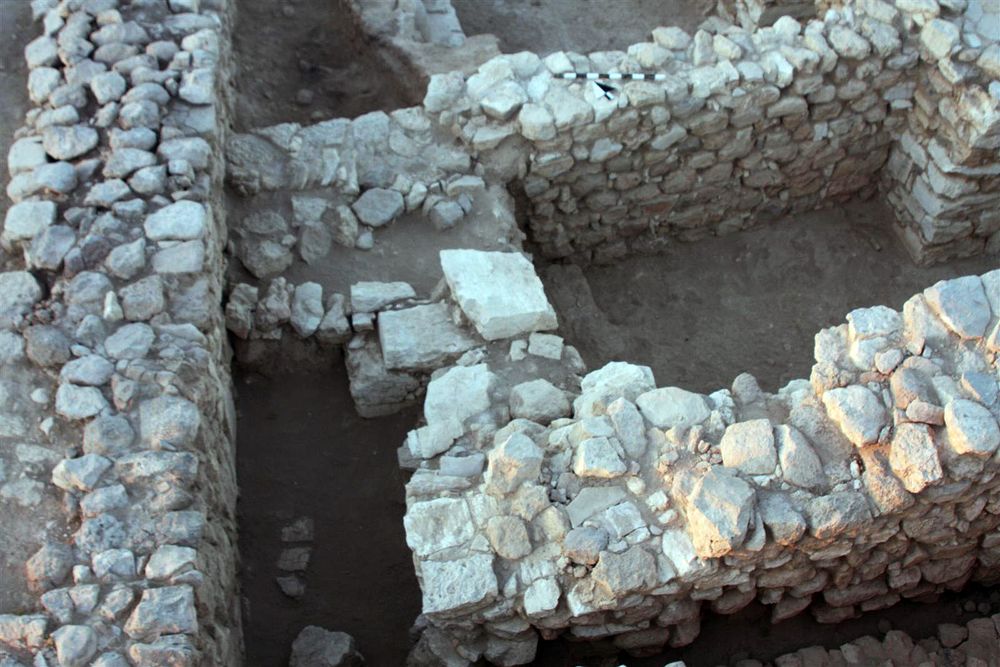

| 29 Jul, 2008 | 08B00619 | Final: LB Building SW part |
|

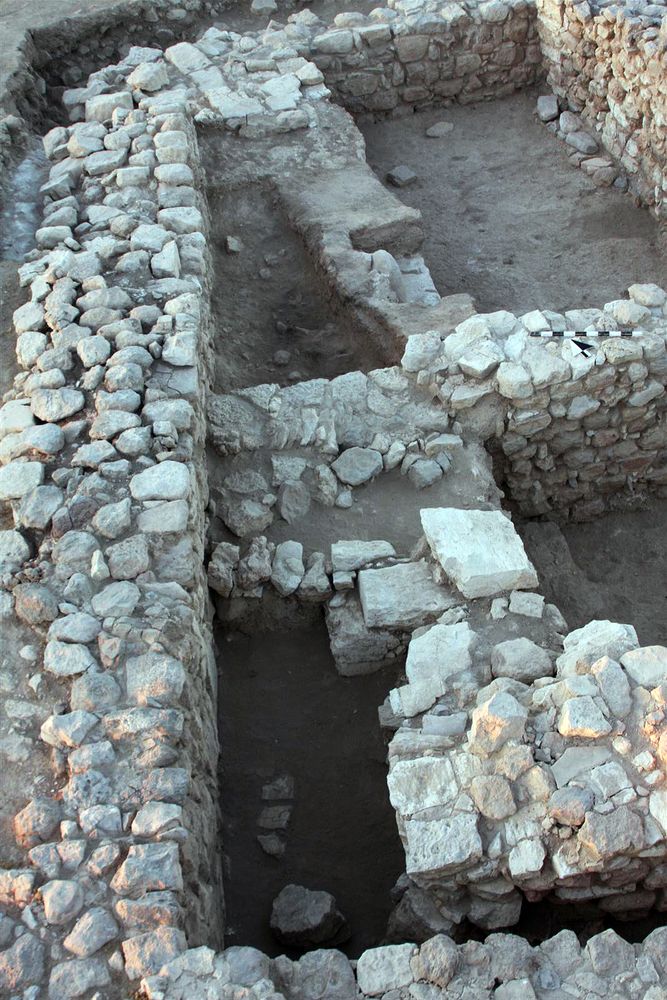

| 29 Jul, 2008 | 08B00617 | Final: LB building W part |
|
| 29 Jul, 2008 | 08B00618 | Final: LB building W part 2 |
|
| 01 Jul, 2008 | 08B00051 | Progress |
|
| 04 Jul, 2008 | 08B00128 | Locus 38 |
|
