Locus B.7K90.003
General Information
Locus Type:
Architecture
Supervisor:
H. Dates
Designation:
E-W wall
Reason:
Line of stones
Top Separation:
Clear
Bottom Separation:
Clear
Start Date:
03 Jul, 1984
End Date:
12 Jul, 1984
Interpretation
Function:
Domestic wall; Walls 3 & 4, with an apparently massive mudbrick construction between them, may be part of the defense system
Stratigraphy remarks:
Appears to be contemp with & parallel to Wall 4; Could have had additional courses, but it was imposs to determine; stones overlying Wall 3 were removed as part of Tumble 2, because they were not articulated; appears to be a slightly later wall than 4, although probably used simultaneously
Balk:
Phase:
Stratum :
Architecture Description
Material
chert Qualifier 1:
chert Qualifier 2:
chert Qualifier 3:
chert Percent:
0
Limestone Qualifier 1:
None
Limestone Qualifier 2:
Limesotne Qualifier 3:
Limestone Percent:
99
basalt Qualifier 1:
Hard
basalt Qualifier 2:
basalt Qualifier 3:
basalt Percent:
1
nari Qualifier 1:
nari Qualifier 2:
nari Qualifier 3:
nari Percent:
0
mudbrick Qualifier 1:
mudbrick Qualifier 2:
mudbrick Qualifier 3:
mudbrick Percent:
Arch Frags:
0
Fragment Type:
Quarry:
Wall Stones
Cobble (6-25 cm) %:
0
Small Boulder (25-50cm) %:
Medium Boulder (50-75cm) %:
50
Large Boulder (75-100cm) %:
0
Very Large Boulder (>1 m) %:
0
Chinkstones
Pebble (.2-6 cm) %:
100
Cobble (6-25 cm) %:
0
Fillstones: (in Rubble-filled Construction)
Cobble (6-25 cm) %:
0
Small Boulder (25-50cm) %:
0
Medium Boulder (50-75cm) %:
0
Large Boulder (75-100cm) %:
0
Very Large Boulder (>1 m) %:
0
Brick
Length (upper):
0.0
Length (lower):
0.0
Width (upper):
0.0
Width (lower):
0.0
Depth (upper):
0.0
Depth (lower):
0.0
Dressing: (Stone Only)
Unhewn %:
99
Semi-hewn %:
Dressed %:
0
Ashlar %:
0
Bossed %:
0
Tooling (Stone Only)
Upper Width:
0.0
Lower Width:
0.0
Upper Length:
0.0
Lower Length:
0.0
Sketch:
false
Photo:
false
Mortar
Dry-laid %:
100
Clay %:
0
Mud %:
0
Cement %:
0
Plaster %:
0
Average Thickness:
0.0
Facing
Facing:
Unfaced
Color:
Construction
Style:
Boulder & Chink
Support:
Free-standing
Tendencies:
Courses
Highest Count:
0
Lowest Count:
2
Random:
false
Rows
Highest Count:
0
Lowest Count:
2
Two with Rubble:
Random:
false
Measurements
Greatest Length in meters:
1.4
Greatest width in meters:
0.9
Smallest width in meters:
0.7
Greatest Height in meters:
0.7
Lowest Height in meters:
0.6
Orientation (degrees):
121
Dip (degrees):
0
Preservation
Preservation:
Partial Superstructure: Little
Lean Direction (degrees):
0
Lean Degrees:
0
Top Foundation Level:
Remarks
Remarks:
Wall first appeared to end abruptly; Stone 8 (med. boulder) on top plan might have been later addition; visible stones in N balk suggest it might continue into balk
Levels
| Location | Top Level | Bottom Level |
|---|---|---|
| 1 | 914.656 | 0 |
| 2 | 914.676 | 0 |
| 3 | 914.713 | 914.191 |
| 4 | 914.583 | 0 |
| 5 | 914.509 | 0 |
| 6 | 913.343 | 0 |
| 7 | 914.504 | 0 |
| 8 | 914.458 | 0 |
Stratigraphy
| Under | Earth layer | B7K90:001 |
| Under | Earth layer | B7K90:002 |
| Over | Installation | B7K90:008 |
| Over | Installation | B7K90:012 |
| Over | Surface | B7K90:013 |
Pails
| Number | Date | Baskets | Total | Diagnostic | Published | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 12 Jul, 1984 | 21 | 150 | 27 | 0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pottery Readings
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Photos
| Date | Photo Number | Subject | Photo |
|---|---|---|---|

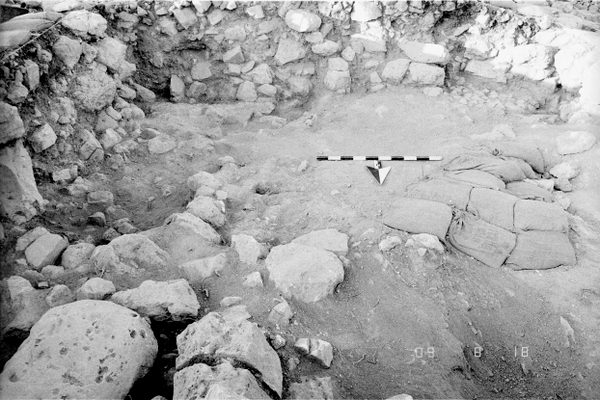

| 18 Jul, 1984 | 84B90295 | Progress |
|

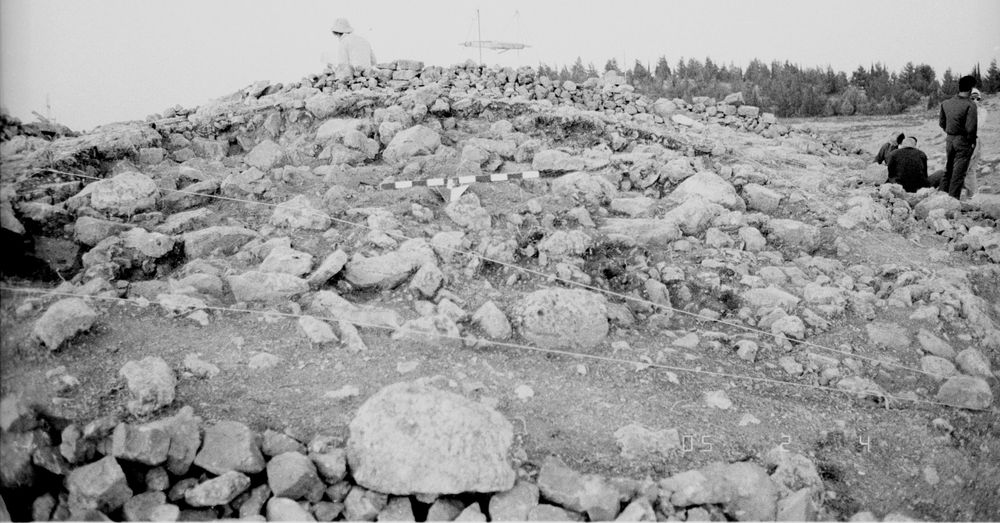

| 04 Jul, 1984 | 84B90085 | Progress |
|

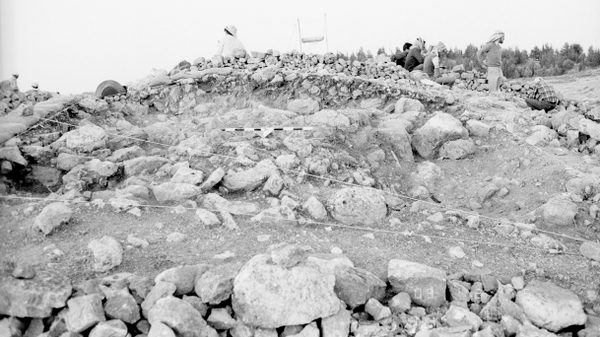

| 05 Jul, 1984 | 84B90104 | Progress |
|
| 06 Jul, 1984 | 84B90121 | Progress |
|
| 09 Jul, 1984 | 84B90145 | Progress |
|
| 10 Jul, 1984 | 84B90165 | Progress |
|

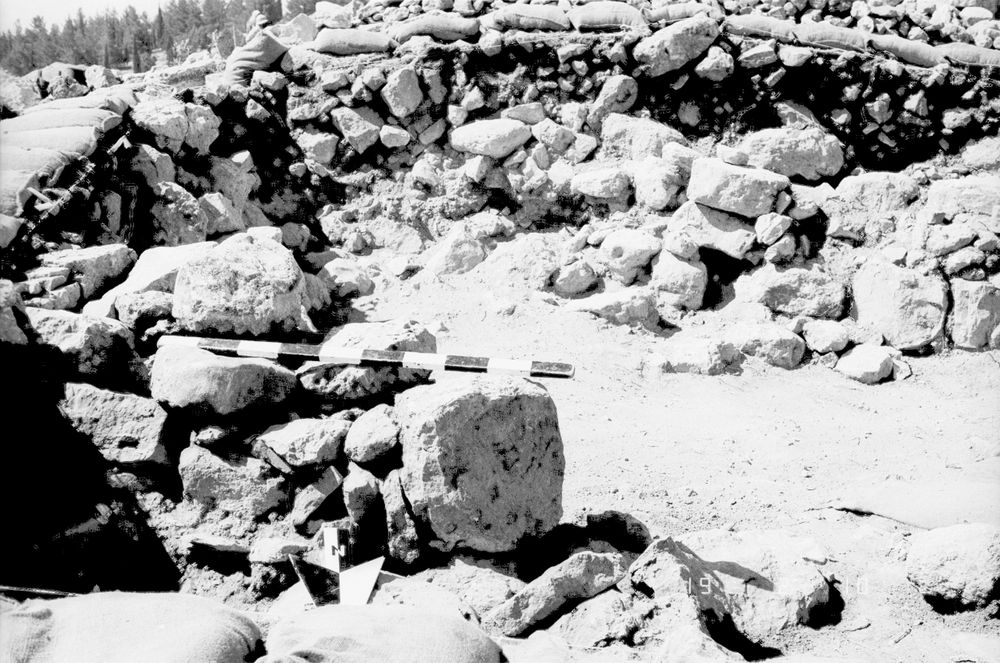

| 10 Jul, 1984 | 84B90169 | Wall before removal |
|

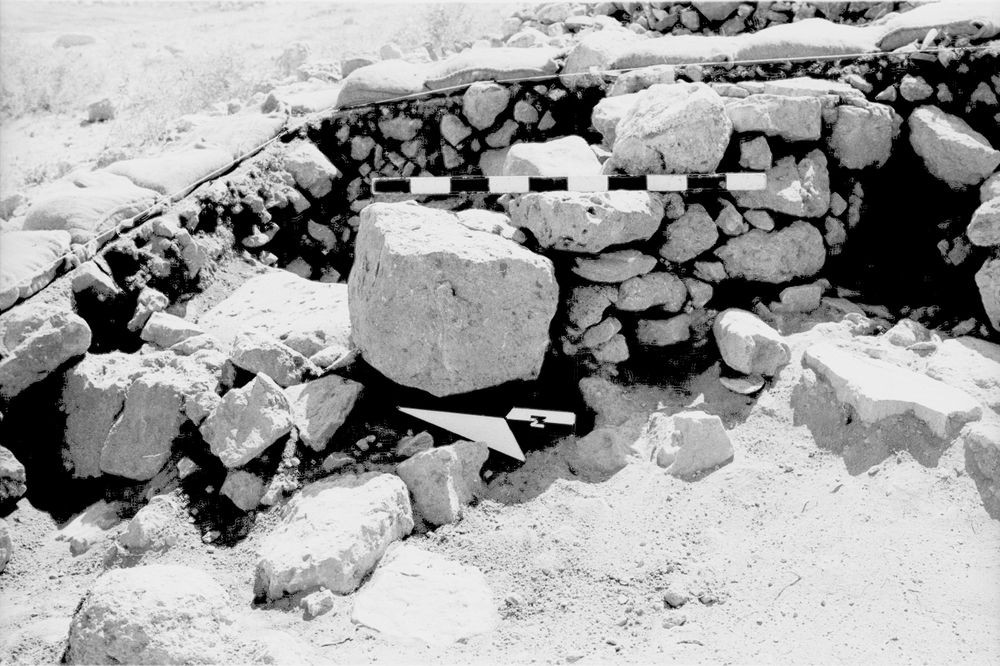

| 10 Jul, 1984 | 84B90170 | Wall before removal |
|
| 11 Jul, 1984 | 84B90185 | Progress |
|
| 12 Jul, 1984 | 84B90224 | Progress |
|
| 11 Jul, 1984 | 84B90189 | Wall bed |
|

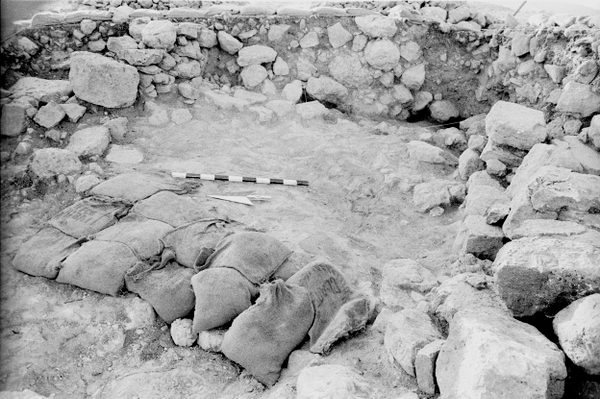

| 12 Jul, 1984 | 84B90208 | Progress |
|

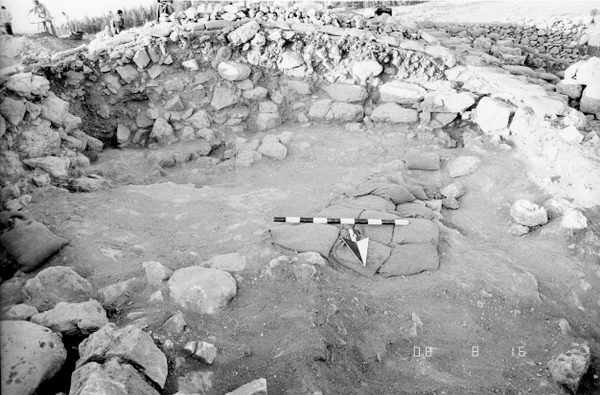

| 16 Jul, 1984 | 84B90247 | Progress |
|
| 17 Jul, 1984 | 84B90266 | Progress |
|

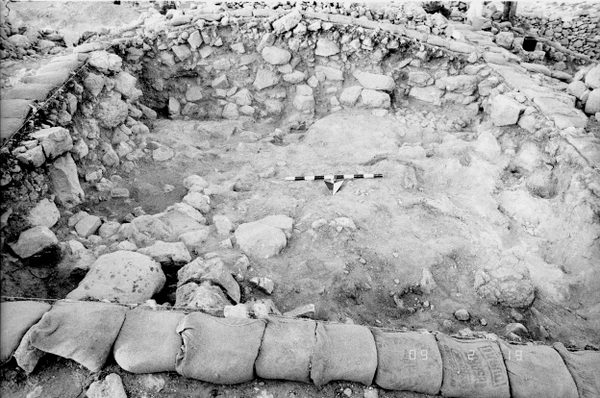

| 19 Jul, 1984 | 84B90316 | Progress |
|
