Locus B.7K81.032
General Information
Locus Type:
Architecture
Supervisor:
C. Draper
Designation:
N-S sall forming E Wall of EIR1 House B
Reason:
Stones in a line
Top Separation:
Very Clear
Bottom Separation:
Clear
Start Date:
04 Jul, 1994
End Date:
27 Jul, 1994
Interpretation
Function:
E wall of EIR1 House B
Stratigraphy remarks:
Covered by brick destruction 22 on S & Pavment 26 & mudbrick debris 31 on N; upper disturbed stones of E end of Wall 30 may run over it at center; flagstone Pavement 39 runs up to the bottom on the N & compact clay debris layer 33 on S; appears to abut Wall 34 on N face with an upper course running over Wall 34
Balk:
Phase:
Stratum :
Architecture Description
Material
chert Qualifier 1:
chert Qualifier 2:
chert Qualifier 3:
chert Percent:
0
Limestone Qualifier 1:
None
Limestone Qualifier 2:
Limesotne Qualifier 3:
Limestone Percent:
100
basalt Qualifier 1:
basalt Qualifier 2:
basalt Qualifier 3:
basalt Percent:
0
nari Qualifier 1:
nari Qualifier 2:
nari Qualifier 3:
nari Percent:
0
mudbrick Qualifier 1:
mudbrick Qualifier 2:
mudbrick Qualifier 3:
mudbrick Percent:
Arch Frags:
0
Fragment Type:
Quarry:
Wall Stones
Cobble (6-25 cm) %:
20
Small Boulder (25-50cm) %:
Medium Boulder (50-75cm) %:
35
Large Boulder (75-100cm) %:
10
Very Large Boulder (>1 m) %:
0
Chinkstones
Pebble (.2-6 cm) %:
0
Cobble (6-25 cm) %:
100
Fillstones: (in Rubble-filled Construction)
Cobble (6-25 cm) %:
100
Small Boulder (25-50cm) %:
0
Medium Boulder (50-75cm) %:
0
Large Boulder (75-100cm) %:
0
Very Large Boulder (>1 m) %:
0
Brick
Length (upper):
0.0
Length (lower):
0.0
Width (upper):
0.0
Width (lower):
0.0
Depth (upper):
0.0
Depth (lower):
0.0
Dressing: (Stone Only)
Unhewn %:
100
Semi-hewn %:
Dressed %:
0
Ashlar %:
0
Bossed %:
0
Tooling (Stone Only)
Upper Width:
0.0
Lower Width:
0.0
Upper Length:
0.0
Lower Length:
0.0
Sketch:
false
Photo:
false
Mortar
Dry-laid %:
100
Clay %:
0
Mud %:
0
Cement %:
0
Plaster %:
0
Average Thickness:
0.0
Facing
Facing:
Unfaced
Color:
Construction
Style:
Boulder & Chink
Support:
Free-standing
Tendencies:
Courses
Highest Count:
3
Lowest Count:
2
Random:
false
Rows
Highest Count:
0
Lowest Count:
2
Two with Rubble:
Random:
false
Measurements
Greatest Length in meters:
5.25
Greatest width in meters:
1.25
Smallest width in meters:
1
Greatest Height in meters:
0
Lowest Height in meters:
0
Orientation (degrees):
0
Dip (degrees):
0
Preservation
Preservation:
Partial Superstructure: Little
Lean Direction (degrees):
0
Lean Degrees:
0
Top Foundation Level:
Remarks
Remarks:
May have a 2nd upper phase over E end of Wall 34
Levels
| Location | Top Level | Bottom Level |
|---|---|---|
| 11 | 912.58 | 0 |
| 23 | 912.42 | 0 |
| 34 | 912.5 | 0 |
Stratigraphy
| Under | Surface | B7K81:026 |
| Under | Earth layer | B7K81:031 |
| Under | Earth layer | B7K81:022 |
| Over | Wall | B7K81:034 |
| Equals | Wall | A7K71:040 |
| Abuts | Wall | B7K81:034 |
| Sealed agnst by | Surface | B7K81:039 |
| Sealed agnst by | Earth layer | B7K81:022 |
| Sealed agnst by | Earth layer | B7K81:033 |
| Sealed agnst by | Surface | B7K81:038 |
| Sealed agnst by | Earth layer | B7K81:031 |
| Surface | B7K81:039 | |
| Bonded to | Wall | B7K81:034 |
Pails
| Number | Date | Baskets | Total | Diagnostic | Published |
|---|
Photos
| Date | Photo Number | Subject | Photo |
|---|---|---|---|

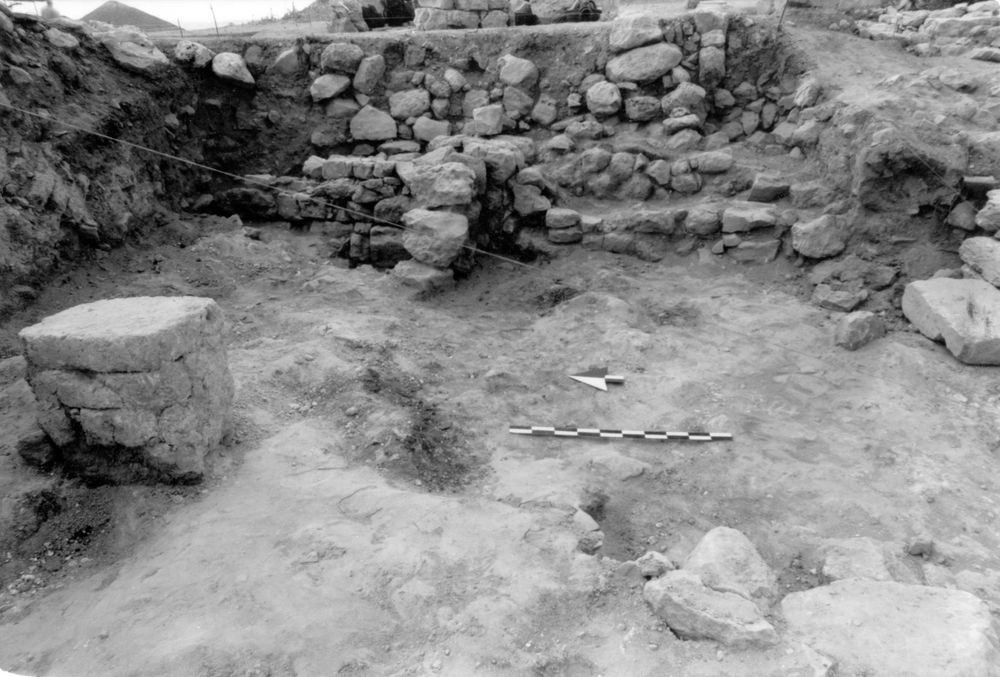

| 13 Jul, 1994 | 94B81110 | Progress |
|
| 15 Jul, 1994 | 94B81113 | Brick & pottery |
|
| 14 Jul, 1994 | 94B81111 | Progress |
|

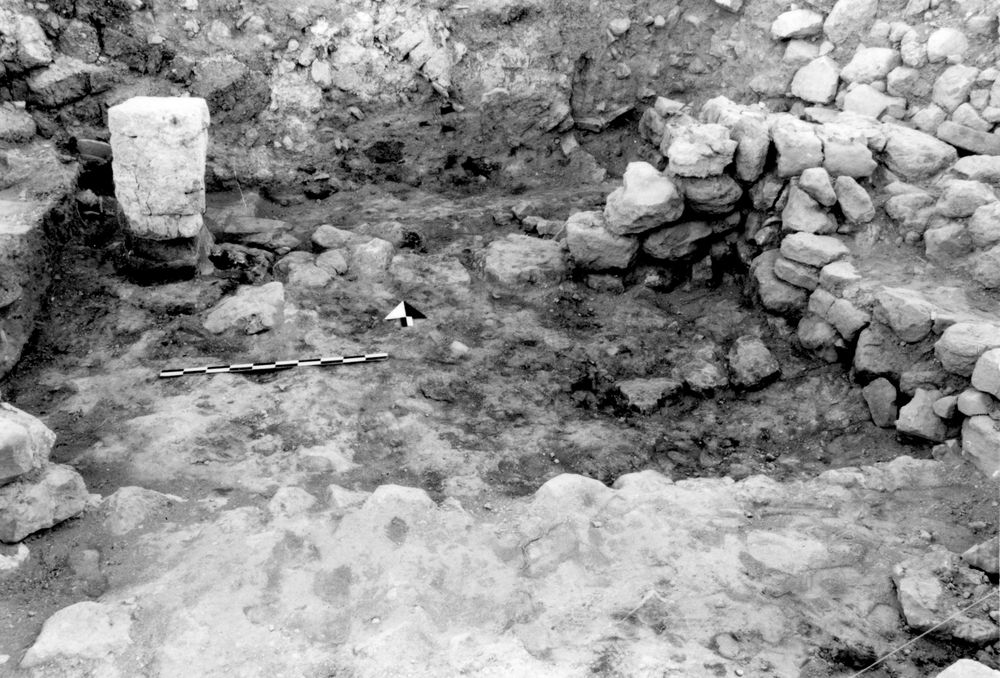

| 18 Jul, 1994 | 94B81114 | Progress |
|
| 19 Jul, 1994 | 94B81115 | Progress |
|

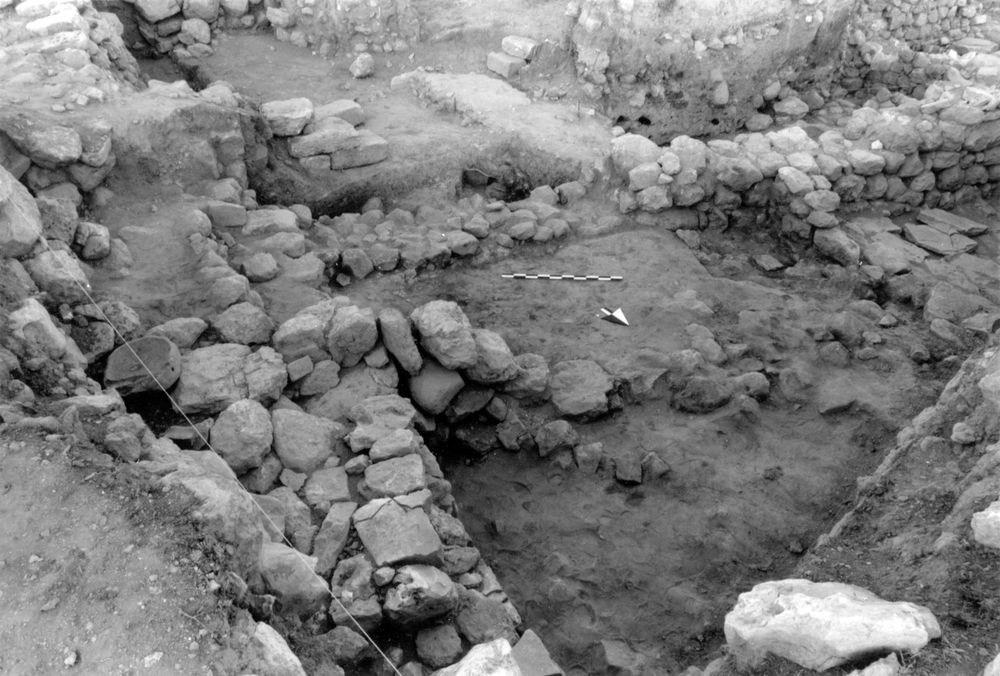

| 20 Jul, 1994 | 94B81116 | Progress |
|
| 21 Jul, 1994 | 94B81117 | Progress |
|
| 25 Jul, 1994 | 94B81124 | Progress |
|

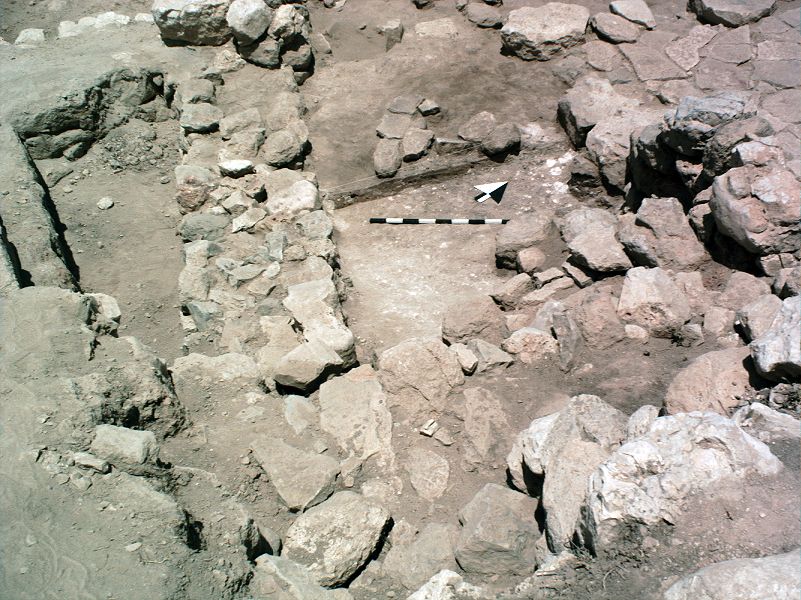

| 03 Jul, 1996 | 96B81229 | Progress |
|
| 27 Jun, 1996 | 96B81227 | Progress |
|

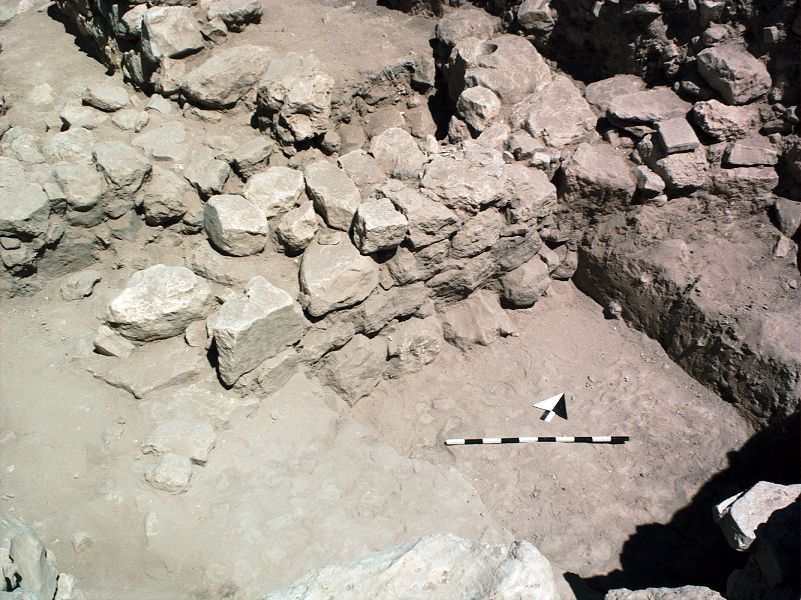

| 05 Jul, 1996 | 96B92271 | Progress |
|

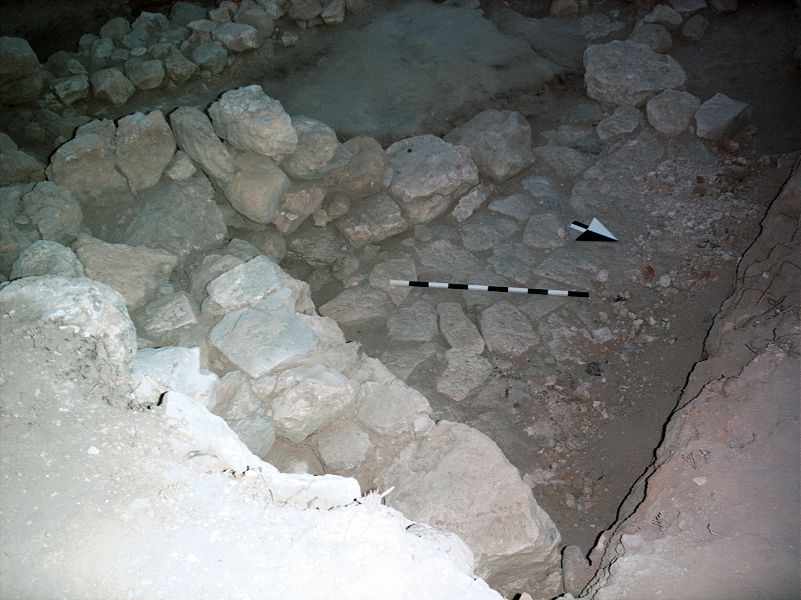

| 25 Jun, 1996 | 96B81225 | Progress |
|
| 21 Jul, 1994 | 94B81119 | Door hinge or cup hole |
|
| 22 Jul, 1994 | 94B81123 | Progress |
|
| 04 Jul, 1994 | 941766 | NE Quadrant |
|
| 27 Jul, 1994 | 94B81125 | Final from W |
|

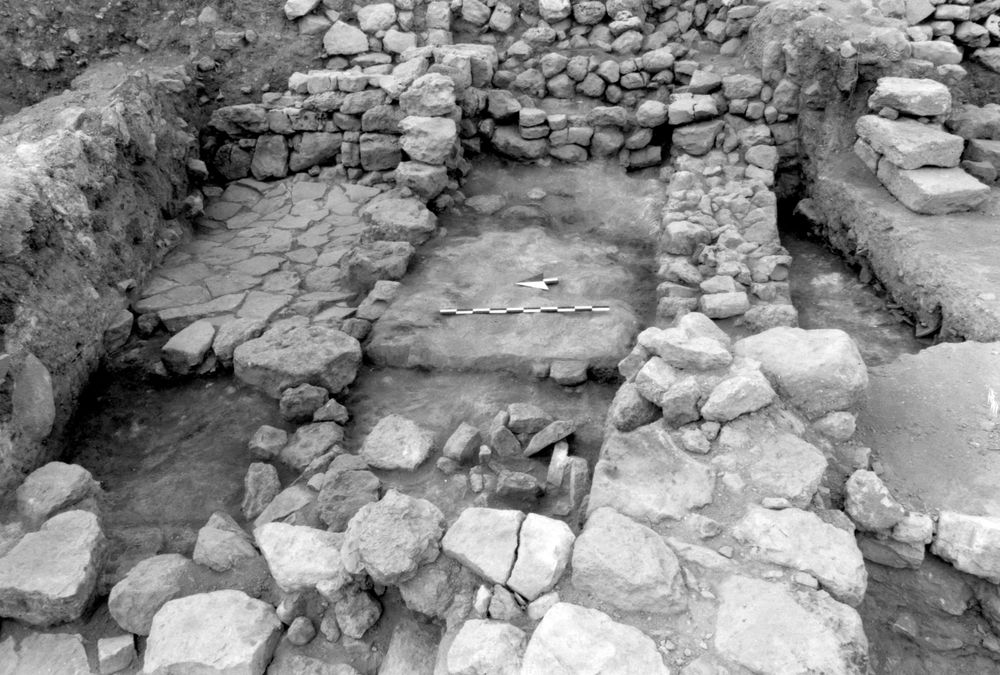

| 27 Jul, 1994 | 94B81126 | Final from E |
|

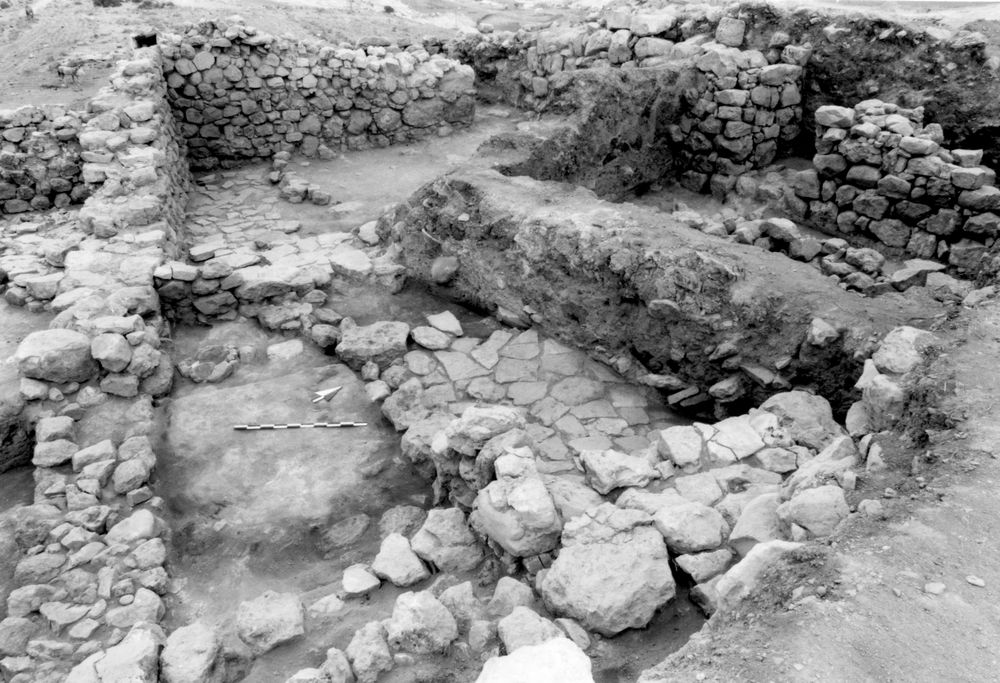

| 27 Jul, 1994 | 94B81128 | Final from E |
|
