Locus B.7K80.004
General Information
Locus Type:
Architecture
Supervisor:
G. Geraty
Designation:
N-S wall
Reason:
Stones in a line
Top Separation:
Very Clear
Bottom Separation:
Very Clear
Start Date:
07 Jul, 1987
End Date:
03 Jul, 1989
Interpretation
Function:
Wall for domestic use? Was built so close to Wall 26 & parallel to it, that it seems Wall 4 was built to widen the existing Wall 26 and when rubble was piled between them, they formed one massive wall
Stratigraphy remarks:
Sealed against by Surfs 8, 15, 17 & over L 18 & Hearth 22; may have been installed at the same time as ritual pool; if 8=16 & 15=11 then Wall 4 was used in conjunction with the pool; L 40 was laid over Cobbled Surf 41 to level for the construction of Wall 4; since the pottery from 40 is LIR2/P, Wall 4 is also LIR2/P.
Balk:
Phase:
Stratum :
Architecture Description
Material
chert Qualifier 1:
chert Qualifier 2:
chert Qualifier 3:
chert Percent:
0
Limestone Qualifier 1:
Hard
Limestone Qualifier 2:
Limesotne Qualifier 3:
Limestone Percent:
100
basalt Qualifier 1:
basalt Qualifier 2:
basalt Qualifier 3:
basalt Percent:
0
nari Qualifier 1:
nari Qualifier 2:
nari Qualifier 3:
nari Percent:
0
mudbrick Qualifier 1:
mudbrick Qualifier 2:
mudbrick Qualifier 3:
mudbrick Percent:
Arch Frags:
0
Fragment Type:
Quarry:
Wall Stones
Cobble (6-25 cm) %:
0
Small Boulder (25-50cm) %:
Medium Boulder (50-75cm) %:
30
Large Boulder (75-100cm) %:
0
Very Large Boulder (>1 m) %:
0
Chinkstones
Pebble (.2-6 cm) %:
50
Cobble (6-25 cm) %:
50
Fillstones: (in Rubble-filled Construction)
Cobble (6-25 cm) %:
2
Small Boulder (25-50cm) %:
0
Medium Boulder (50-75cm) %:
0
Large Boulder (75-100cm) %:
0
Very Large Boulder (>1 m) %:
0
Brick
Length (upper):
0.0
Length (lower):
0.0
Width (upper):
0.0
Width (lower):
0.0
Depth (upper):
0.0
Depth (lower):
0.0
Dressing: (Stone Only)
Unhewn %:
70
Semi-hewn %:
Dressed %:
0
Ashlar %:
0
Bossed %:
0
Tooling (Stone Only)
Upper Width:
0.0
Lower Width:
0.0
Upper Length:
0.0
Lower Length:
0.0
Sketch:
false
Photo:
false
Mortar
Dry-laid %:
100
Clay %:
0
Mud %:
0
Cement %:
0
Plaster %:
0
Average Thickness:
0.0
Facing
Facing:
Unfaced
Color:
Construction
Style:
Boulder & Chink
Support:
Free-standing
Tendencies:
Courses
Highest Count:
0
Lowest Count:
3
Random:
false
Rows
Highest Count:
0
Lowest Count:
2
Two with Rubble:
Random:
false
Measurements
Greatest Length in meters:
2.35
Greatest width in meters:
1.1
Smallest width in meters:
1
Greatest Height in meters:
0.94
Lowest Height in meters:
0.82
Orientation (degrees):
203
Dip (degrees):
0
Preservation
Preservation:
Partial Superstructure: Little
Lean Direction (degrees):
0
Lean Degrees:
0
Top Foundation Level:
Remarks
Remarks:
Appears to be in the same phase as 7K90:4 which is perpendicular to our wall; 7K90:4 was built on mud brick at level 913.94
Levels
| Location | Top Level | Bottom Level |
|---|---|---|
| 9 | 914.72 | 913.9 |
| 13 | 914.9 | 0 |
| 14 | 914.8 | 913.86 |
Stratigraphy
| Over | Surface | B7K80:018 |
| Over | Installation | B7K80:022 |
| Sealed agnst by | Surface | B7K80:008 |
| Sealed agnst by | Surface | B7K80:015 |
| Sealed agnst by | Surface | B7K80:017 |
| Under | Earth layer | B7K80:002 |
| Over | Earth layer | B7K80:021 |
| Over | Surface | B7K80:040 |
| Abutted by | Wall | B7K80:039 |
Pails
| Number | Date | Baskets | Total | Diagnostic | Published | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 105 | 22 Jul, 1987 | 0 | 25 | 4 | 0 | ||||||||||||||||||||||||
| 107 | 23 Jul, 1984 | 17 | 15 | 2 | 0 | ||||||||||||||||||||||||
Pottery Readings
|
|||||||||||||||||||||||||||||
| 160 | 03 Jul, 1989 | 17 | 121 | 18 | 0 | ||||||||||||||||||||||||
Pottery Readings
|
|||||||||||||||||||||||||||||
Photos
| Date | Photo Number | Subject | Photo |
|---|---|---|---|
| 03 Jul, 1989 | 89B80222 | Wall from above |
|
| 03 Jul, 1989 | 89B80223 | Cobbles under Wall 39 |
|
| 30 Jun, 1989 | 89B80218 | Progress |
|
| 03 Jul, 1989 | 89B80219 | Progress |
|
| 03 Jul, 1989 | 89B80220 | Wall frags of N balk |
|
| 03 Jul, 1989 | 89B80221 | Relation of W 39 to 4, 5, 7 |
|
| 28 Jun, 1989 | 891B80002 | Progress |
|
| 29 Jun, 1989 | 891B80003 | Progress |
|
| 08 Jul, 1987 | 87B80211 | Progress |
|
| 09 Jul, 1987 | 87B80212 | Progress |
|
| 10 Jul, 1987 | 87B80213 | Progress |
|
| 13 Jul, 1987 | 87B80216 | Progress |
|
| 14 Jul, 1987 | 87B80217 | Progress |
|
| 15 Jul, 1987 | 87B80218 | Progress |
|
| 16 Jul, 1987 | 87B80219 | Progress |
|
| 17 Jul, 1987 | 87B80221 | Progress |
|
| 20 Jul, 1987 | 87B80222 | Progress |
|
| 22 Jul, 1987 | 87B80226 | Progress |
|

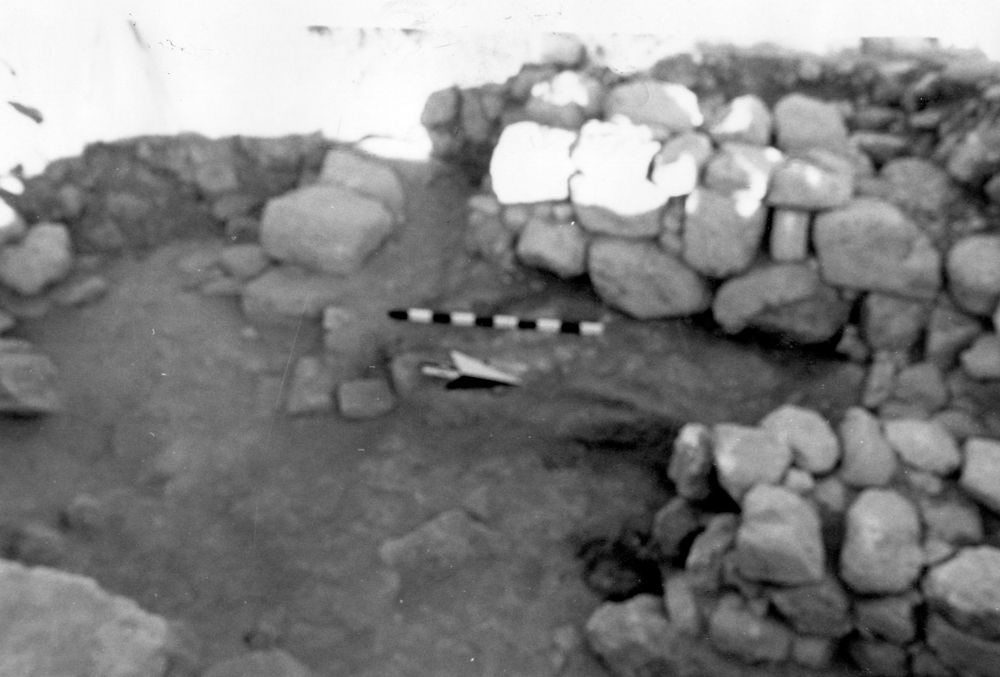

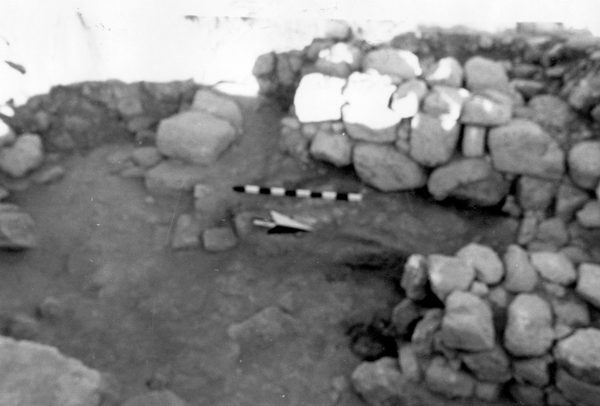

| 22 Jul, 1987 | 87B80227 | Wall 4 |
|

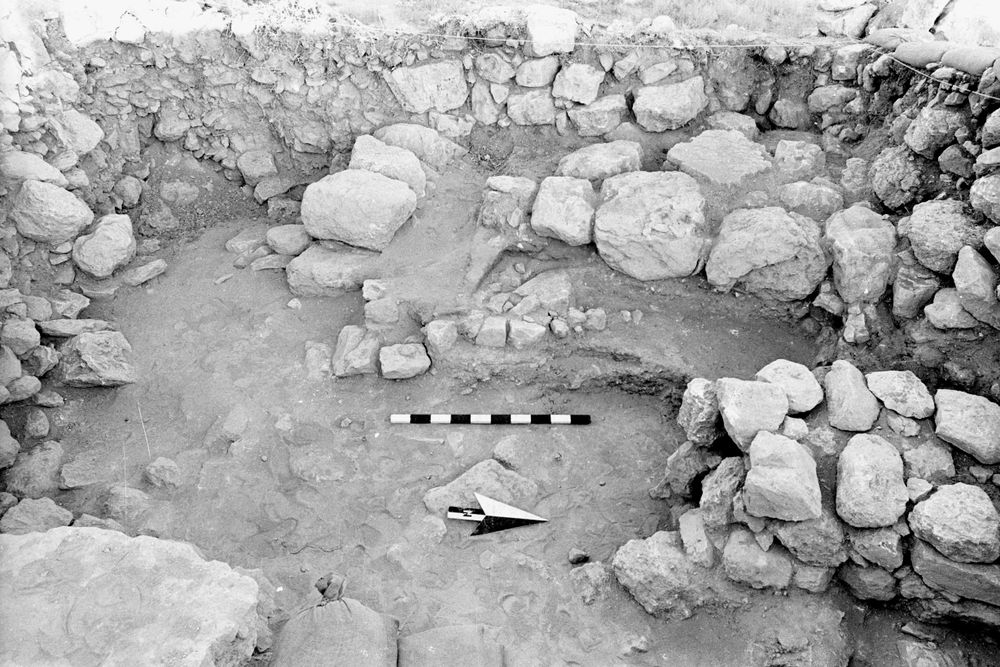

| 23 Jul, 1987 | 87B80229 | Progress |
|
| 23 Jul, 1987 | 87B80230 | Walls 4, 25, 26 |
|
| 23 Jul, 1987 | 87B80231 | Wall 4 |
|
| 23 Jul, 1987 | 87B80232 | Wall4 |
|
| 26 Jun, 1989 | 891B80001 | Progress |
|
