Locus A.7K70.073

Architecture · N-S Wall

General Information

Locus Type Architecture
Supervisor N. Castanon
Designation N-S Wall
Reason stones in a line
Top Separation Very Clear
Bottom Separation Very Clear
Start Date 19 July, 2010
End Date 19 July, 2010

Interpretation

Function N-S Wall
Stratigraphy remarks
Balk
Phase
Stratum

Architecture Description

Material

chert Qualifier 1:

chert Qualifier 2:

chert Qualifier 3:

chert Percent:

Limestone Qualifier 1:

Limestone Qualifier 2:

Limesotne Qualifier 3:

Limestone Percent:

100

basalt Qualifier 1:

basalt Qualifier 2:

basalt Qualifier 3:

basalt Percent:

nari Qualifier 1:

nari Qualifier 2:

nari Qualifier 3:

nari Percent:

mudbrick Qualifier 1:

mudbrick Qualifier 2:

mudbrick Qualifier 3:

mudbrick Percent:

Arch Frags:

Fragment Type:

Quarry:

Wall Stones

Cobble (6-25 cm) %:

10

Small Boulder (25-50cm) %:

90

Medium Boulder (50-75cm) %:

Large Boulder (75-100cm) %:

Very Large Boulder (>1 m) %:

Chinkstones

Pebble (.2-6 cm) %:

100

Cobble (6-25 cm) %:

Fillstones: (in Rubble-filled Construction)

Cobble (6-25 cm) %:

100

Small Boulder (25-50cm) %:

Medium Boulder (50-75cm) %:

Large Boulder (75-100cm) %:

Very Large Boulder (>1 m) %:

Brick

Length (upper):

Length (lower):

Width (upper):

Width (lower):

Depth (upper):

Depth (lower):

Dressing: (Stone Only)

Unhewn %:

95

Semi-hewn %:

Dressed %:

Ashlar %:

Bossed %:

Tooling (Stone Only)

Upper Width:

Lower Width:

Upper Length:

Lower Length:

Sketch:

false

Photo:

false

Mortar

Dry-laid %:

100

Clay %:

Mud %:

Cement %:

Plaster %:

Average Thickness:

Facing

Facing:

Unfaced

Color:

Construction

Style:

Boulder & Chink

Support:

Foundation

Tendencies:

Courses

Highest Count:

6

Lowest Count:

2

Random:

false

Rows

Highest Count:

2

Lowest Count:

1

Two with Rubble:

false

Random:

false

Measurements

Greatest Length in meters:

2.63

Greatest width in meters:

0.87

Smallest width in meters:

0.17

Greatest Height in meters:

0.98

Lowest Height in meters:

0.43

Orientation (degrees):

8 N

Dip (degrees):

20

Preservation

Preservation:

Partial Superstructure: Most

Lean Direction (degrees):

Lean Degrees:

Top Foundation Level:

Remarks

Remarks:

Levels

Location Top Level Bottom Level
13 913.45 912.87

Stratigraphy

Relationship Related to Related locus
Over Installation A7K70:081
Equals Wall A7J79:042
Sealed agnst by Earth layer A7K70:069
Sealed agnst by Earth layer A7K70:072
Sealed agnst by Earth layer A7K70:071
Sealed agnst by Earth layer A7K70:076
Sealed agnst by Earth layer A7K70:077
Sealed agnst by Earth layer A7K70:080
Bonded to Wall A7J79:024
Bonded to Wall A7K70:047

Pails

Number Date Baskets Total Diagnostic Published

Photos

Date Photo Number Subject Photo

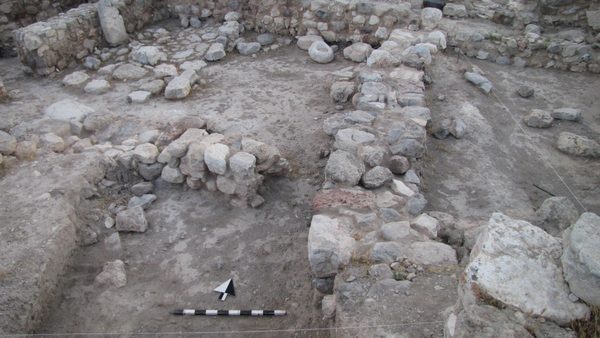

25 June, 2010 10A70014 Pre-existing
28 June, 2010 10A70027 Progress

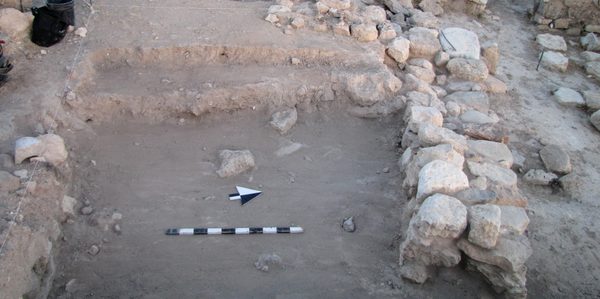

29 June, 2010 10A70043 Progress

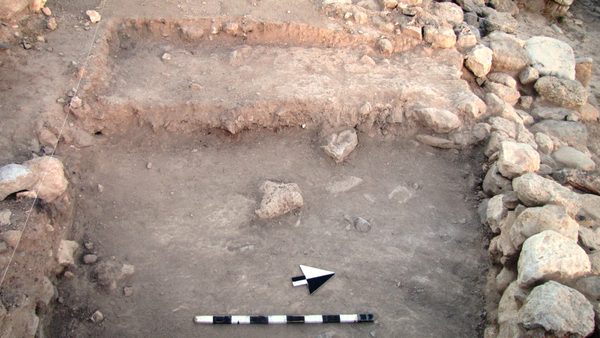

30 June, 2010 10A70053 Progress
1 July, 2010 10A70066 Progress

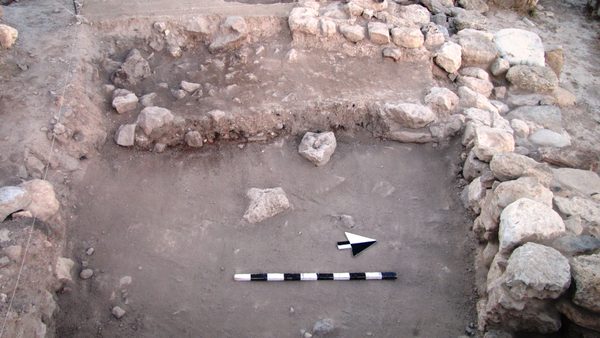

2 July, 2010 10A70078 Progress

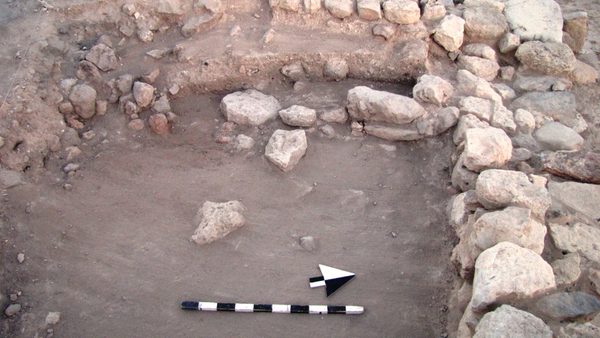

5 July, 2010 10A70093 Progress
6 July, 2010 10A70113 Progress
13 July, 2010 10A70181 Progress

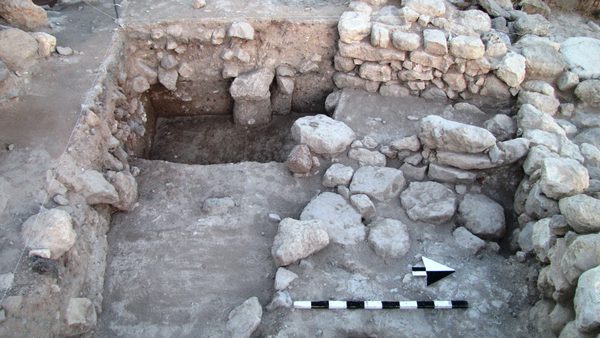

15 July, 2010 10A70209 Progress
22 July, 2010 10A70283 Progress
23 July, 2010 10A70298 Progress

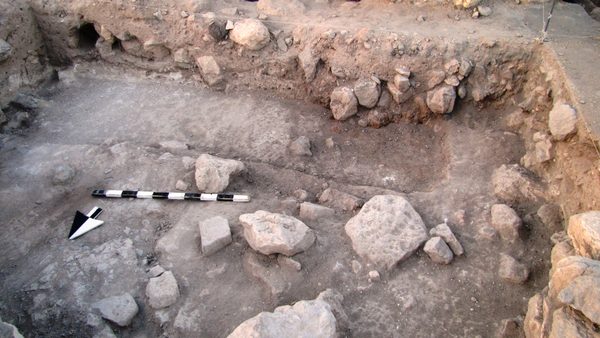

9 July, 2010 10A70157 Progress
14 July, 2010 10A70194 Progress

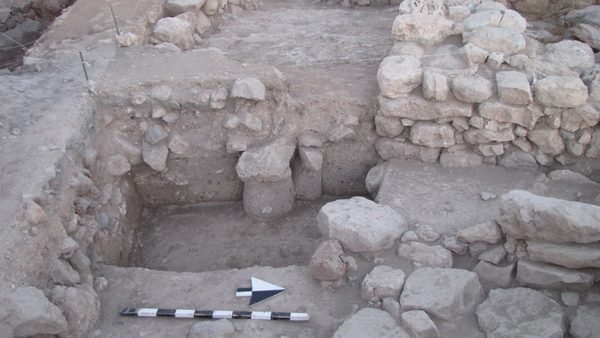

16 July, 2010 10A70220 West Balk
26 July, 2010 10A70311 Progress
27 July, 2010 10A70323 Progress
