Locus A.7K41.006
General Information
Locus Type:
Architecture
Supervisor:
J. Hackwell
Designation:
N-S wall
Reason:
5 boulders in a row
Top Separation:
Clear
Bottom Separation:
Very Clear
Start Date:
10 Jul, 1984
End Date:
19 Jul, 1984
Interpretation
Function:
Foundation course of public building
Stratigraphy remarks:
2nd phase of publicl building
Balk:
Phase:
Stratum :
Architecture Description
Material
chert Qualifier 1:
chert Qualifier 2:
chert Qualifier 3:
chert Percent:
0
Limestone Qualifier 1:
None
Limestone Qualifier 2:
Limesotne Qualifier 3:
Limestone Percent:
100
basalt Qualifier 1:
basalt Qualifier 2:
basalt Qualifier 3:
basalt Percent:
0
nari Qualifier 1:
nari Qualifier 2:
nari Qualifier 3:
nari Percent:
0
mudbrick Qualifier 1:
mudbrick Qualifier 2:
mudbrick Qualifier 3:
mudbrick Percent:
Arch Frags:
0
Fragment Type:
Quarry:
Wall Stones
Cobble (6-25 cm) %:
0
Small Boulder (25-50cm) %:
Medium Boulder (50-75cm) %:
0
Large Boulder (75-100cm) %:
80
Very Large Boulder (>1 m) %:
20
Chinkstones
Pebble (.2-6 cm) %:
20
Cobble (6-25 cm) %:
80
Fillstones: (in Rubble-filled Construction)
Cobble (6-25 cm) %:
0
Small Boulder (25-50cm) %:
0
Medium Boulder (50-75cm) %:
0
Large Boulder (75-100cm) %:
0
Very Large Boulder (>1 m) %:
0
Brick
Length (upper):
0.0
Length (lower):
0.0
Width (upper):
0.0
Width (lower):
0.0
Depth (upper):
0.0
Depth (lower):
0.0
Dressing: (Stone Only)
Unhewn %:
50
Semi-hewn %:
Dressed %:
0
Ashlar %:
0
Bossed %:
0
Tooling (Stone Only)
Upper Width:
0.0
Lower Width:
0.0
Upper Length:
0.0
Lower Length:
0.0
Sketch:
false
Photo:
false
Mortar
Dry-laid %:
50
Clay %:
0
Mud %:
50
Cement %:
0
Plaster %:
0
Average Thickness:
10.0
Facing
Facing:
Unfaced
Color:
Construction
Style:
Boulder & Chink
Support:
Free-standing
Tendencies:
Courses
Highest Count:
0
Lowest Count:
1
Random:
false
Rows
Highest Count:
0
Lowest Count:
2
Two with Rubble:
Random:
false
Measurements
Greatest Length in meters:
0
Greatest width in meters:
110
Smallest width in meters:
100
Greatest Height in meters:
0
Lowest Height in meters:
0
Orientation (degrees):
25
Dip (degrees):
5
Preservation
Preservation:
Foundation Only: Partial
Lean Direction (degrees):
0
Lean Degrees:
0
Top Foundation Level:
Remarks
Remarks:
Excavation of E face will answer questions relative to foundation
Levels
| Location | Top Level | Bottom Level |
|---|---|---|
| 9 | 913.14 | 911.2 |
| 9 | 912.978 | 912.66 |
| 13 | 913.053 | 910.75 |
| 14 | 913.051 | 910.78 |
| 21 | 912.875 | 912.51 |
| 32 | 912.838 | 912.33 |
Stratigraphy
| Under | Earth layer | A7K41:002 |
| Over | Wall | A7K41:006 |
| Abuts | Wall | A7K41:004 |
| Abuts | Wall | A7K41:018 |
| Sealed agnst by | Surface | A7K41:011 |
| Under | Wall | A7K41:006 |
| Under | Earth layer | A7K41:007 |
| Wall | A7K41:014 | |
| Sealed agnst by | Surface | A7K41:015 |
| Abutted by | Wall | A7K41:025 |
| Bonded to | Wall | A7K41:004 |
| Bonded to | Wall | A7K41:012 |
| Over | Wall | A7K41:031 |
| Over | Surface | A7K41:032 |
| Sealed agnst by | Earth layer | A7K41:029 |
| Sealed agnst by | Surface | A7K41:028 |
| Sealed agnst by | Earth layer | A7K41:030 |
Pails
| Number | Date | Baskets | Total | Diagnostic | Published |
|---|
Photos
| Date | Photo Number | Subject | Photo |
|---|---|---|---|
| 19 Jul, 1984 | 84A41163 | Progress |
|
| 29 Jun, 1992 | 92A41007 | Progress |
|
| 30 Jun, 1992 | 92A41008 | Progress |
|
| 30 Jun, 1992 | 92A41008 | Progress |
|
| 01 Jul, 1992 | 92A41009 | Progress |
|
| 01 Jul, 1992 | 92A41009 | Progress |
|
| 01 Aug, 1984 | 84A41537 | Progress |
|
| 01 Aug, 1984 | 84A41537 | Progress |
|
| 11 Jul, 1984 | 84A41182 | Progress |
|
| 12 Jul, 1984 | 84A41201 | Progress |
|
| 12 Jul, 1984 | 84A41201 | Progress |
|
| 13 Jul, 1984 | 84A41220 | Progress |
|
| 13 Jul, 1984 | 84A41220 | Progress |
|
| 16 Jul, 1984 | 84A41240 | Progress |
|
| 16 Jul, 1984 | 84A41244 | Rock tumble layer in L8 |
|
| 17 Jul, 1984 | 84A41260 | Progress |
|
| 17 Jul, 1984 | 84A41260 | Progress |
|
| 18 Jul, 1984 | 84A41290 | Progress |
|
| 18 Jul, 1984 | 84A41290 | Progress |
|
| 19 Jul, 1984 | 84A41308 | Progress |
|
| 19 Jul, 1984 | 84A41308 | Progress |
|
| 20 Jul, 1984 | 84A41331 | Progress |
|
| 20 Jul, 1984 | 84A41331 | Progress |
|
| 23 Jul, 1984 | 84A41353 | Progress |
|
| 23 Jul, 1984 | 84A41353 | Progress |
|
| 24 Jul, 1984 | 84A41365 | Progress |
|
| 24 Jul, 1984 | 84A41365 | Progress |
|
| 25 Jul, 1984 | 84A41403 | Progress |
|
| 25 Jul, 1984 | 84A41403 | Progress |
|
| 24 Jul, 1984 | 84A41371 | Pottery in situ |
|
| 26 Jul, 1984 | 84A41423 | Progress |
|
| 26 Jul, 1984 | 84A41423 | Progress |
|
| 26 Jul, 1984 | 84A41430 | Surface 15 |
|
| 26 Jul, 1984 | 84A41430 | Surface 15 |
|

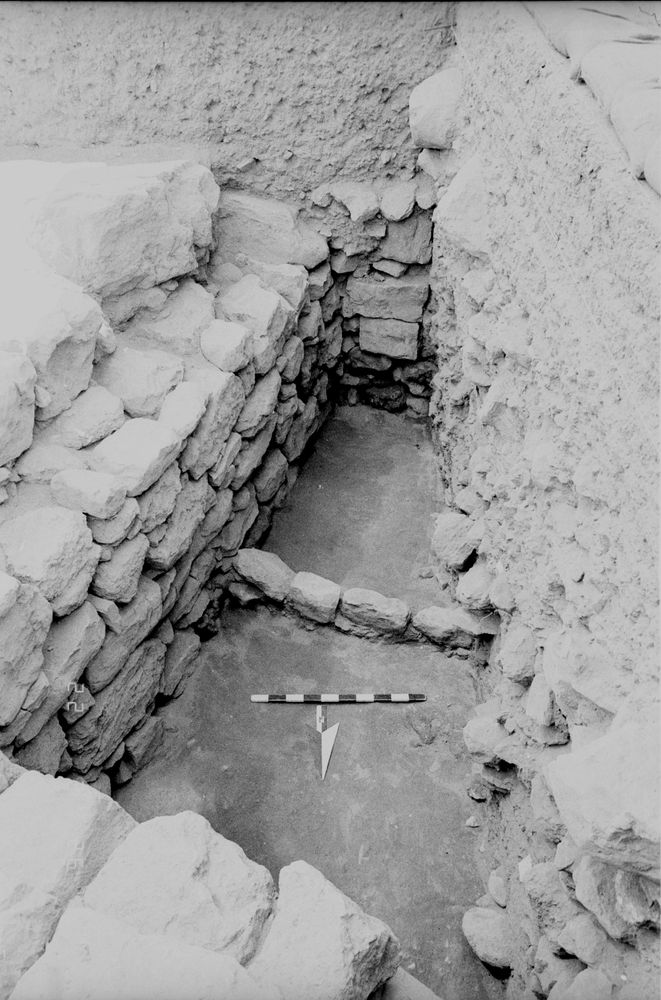

| 26 Jul, 1984 | 84A41431 | Surface 15 |
|
| 26 Jul, 1984 | 84A41431 | Surface 15 |
|
| 26 Jul, 1984 | 84A41432 | Completion of the excavation w W/Balk |
|
| 26 Jul, 1984 | 84A41432 | Completion of the excavation w W/Balk |
|
| 27 Jul, 1984 | 84A41446 | Progress |
|
| 27 Jul, 1984 | 84A41446 | Progress |
|
| 30 Jul, 1984 | 84A41478 | N balk |
|
| 30 Jul, 1984 | 84A41478 | N balk |
|
| 31 Jul, 1984 | 84A41518 | Final of sq |
|
| 31 Jul, 1984 | 84A41518 | Final of sq |
|
| 03 Jul, 1992 | 92A41014 | Progress |
|
| 06 Jul, 1992 | 92A41015 | Progress |
|
| 07 Jul, 1992 | 92A41016 | Progress |
|
| 10 Jul, 1992 | 92A41018 | Progress |
|
| 13 Jul, 1992 | 92A41019 | Progress |
|
| 14 Jul, 1992 | 92A41020 | Wall 31 |
|
| 15 Jul, 1992 | 92A41021 | Progress |
|
| 16 Jul, 1992 | 92A41022 | Progress |
|

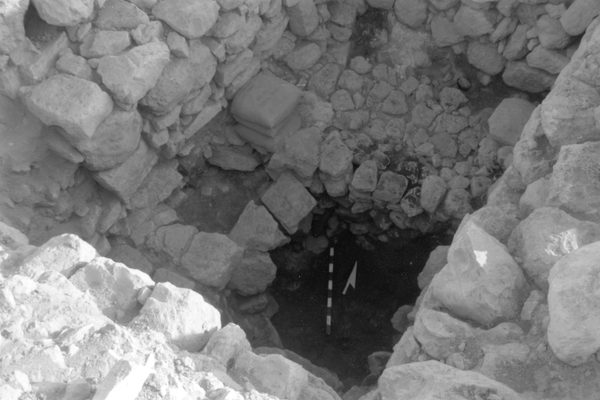

| 17 Jul, 1992 | 92A41023 | Progress |
|
| 20 Jul, 1992 | 92A41024 | Progress |
|
| 02 Jul, 1992 | 92A41010 | Room |
|
| 02 Jul, 1992 | 92A41010 | Room |
|
| 02 Jul, 1992 | 92A41013 | E side of room |
|
| 02 Jul, 1992 | 92A41-07C | Progress |
|
| 02 Jul, 1992 | 92A41012 | S side of room |
|
| 30 Jul, 1984 | 84A51474 | W balk |
|
| 09 Jul, 1984 | 84D86159 | Wall 4 |
|

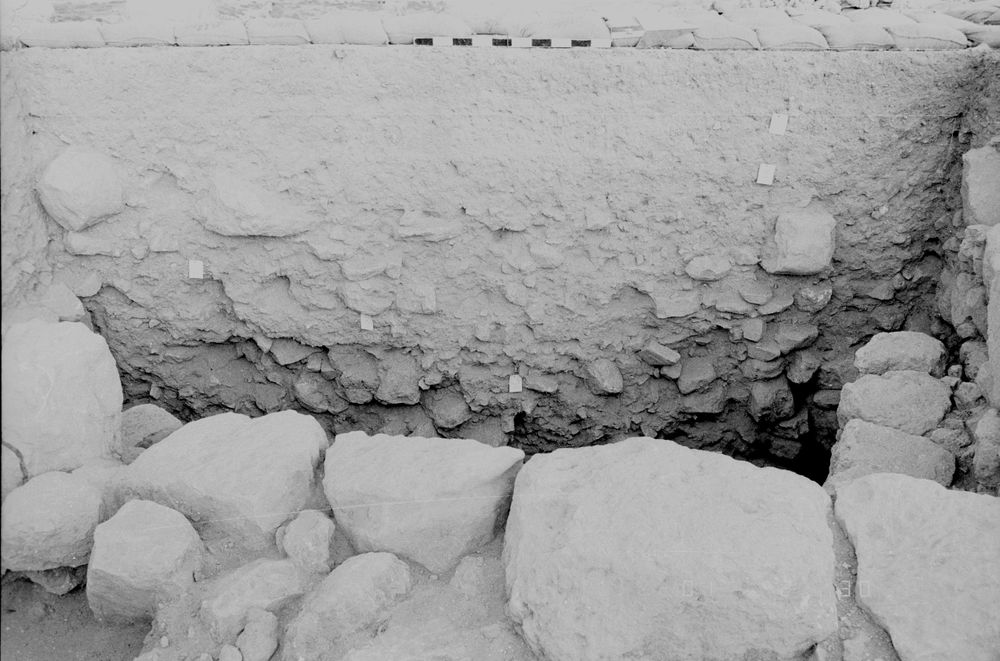

| 30 Jul, 1984 | 84A41470 | W balk |
|
| 02 Aug, 1984 | 84A41558 | Progress |
|
| 02 Aug, 1984 | 84A41558 | Progress |
|

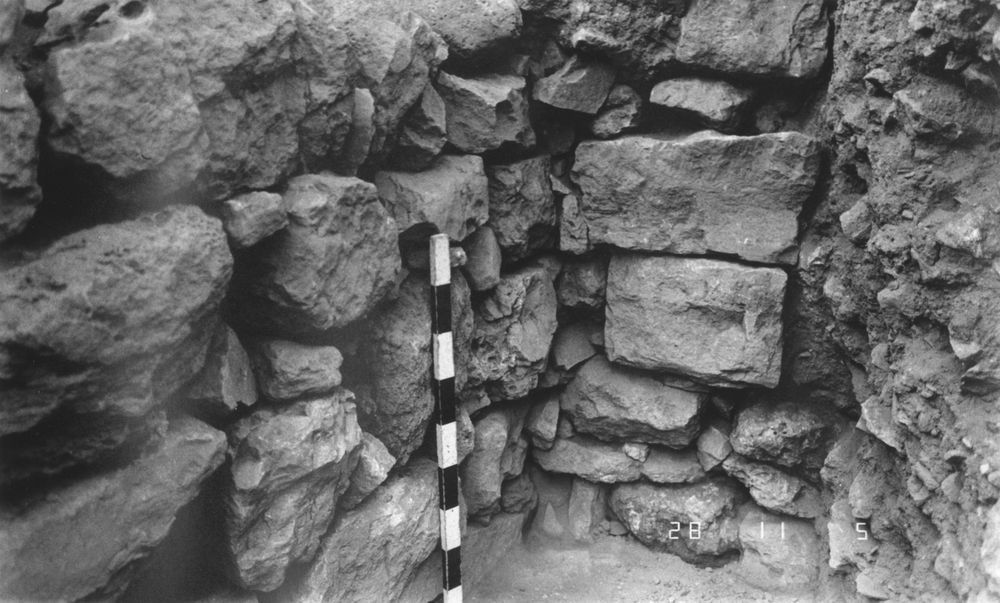

| 05 Aug, 1984 | 84A41670 | Final |
|

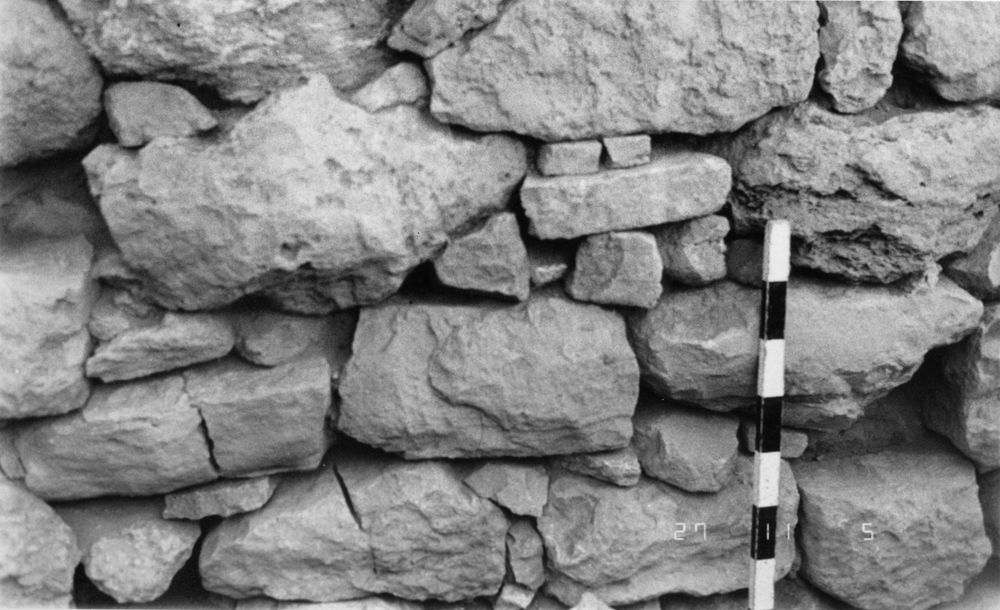

| 05 Aug, 1984 | 84A41669 | Elevation |
|

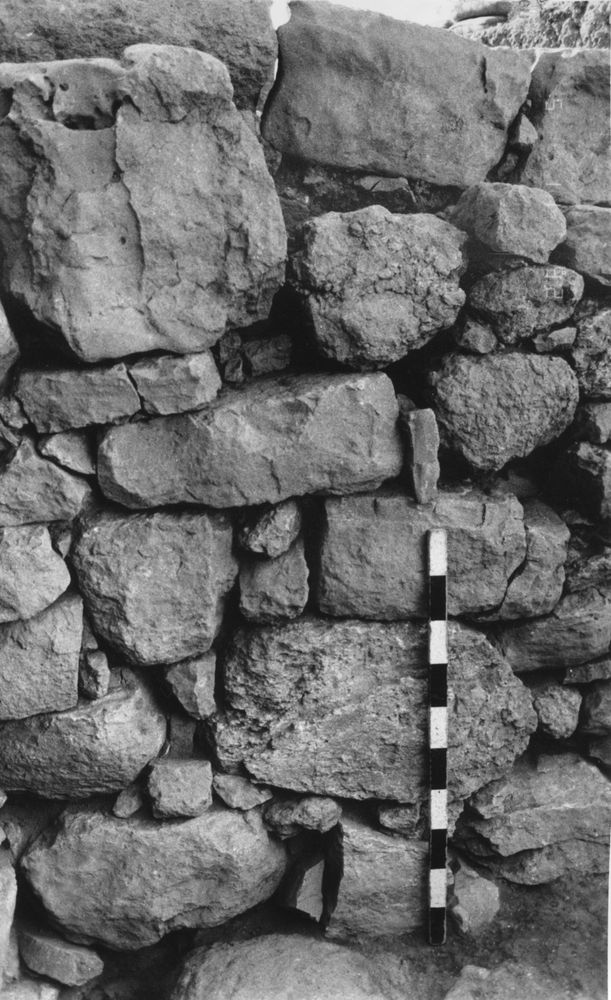

| 05 Aug, 1984 | 84A41668 | Elevation |
|
| 05 Jul, 1984 | 84A41681 | E balk |
|
| 05 Jul, 1984 | 84A41681 | E balk |
|
| 05 Aug, 1984 | 84A41680 | S balk |
|
| 06 Aug, 1984 | 84A41697 | Final |
|

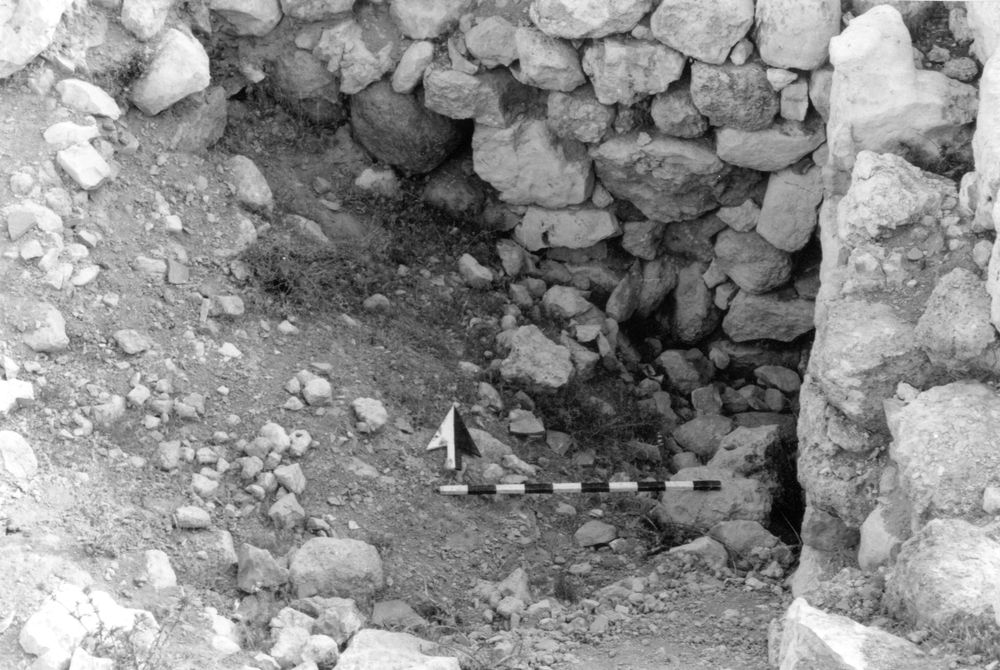

| 18 Jun, 1992 | 92A41001 | Pre-excavation |
|

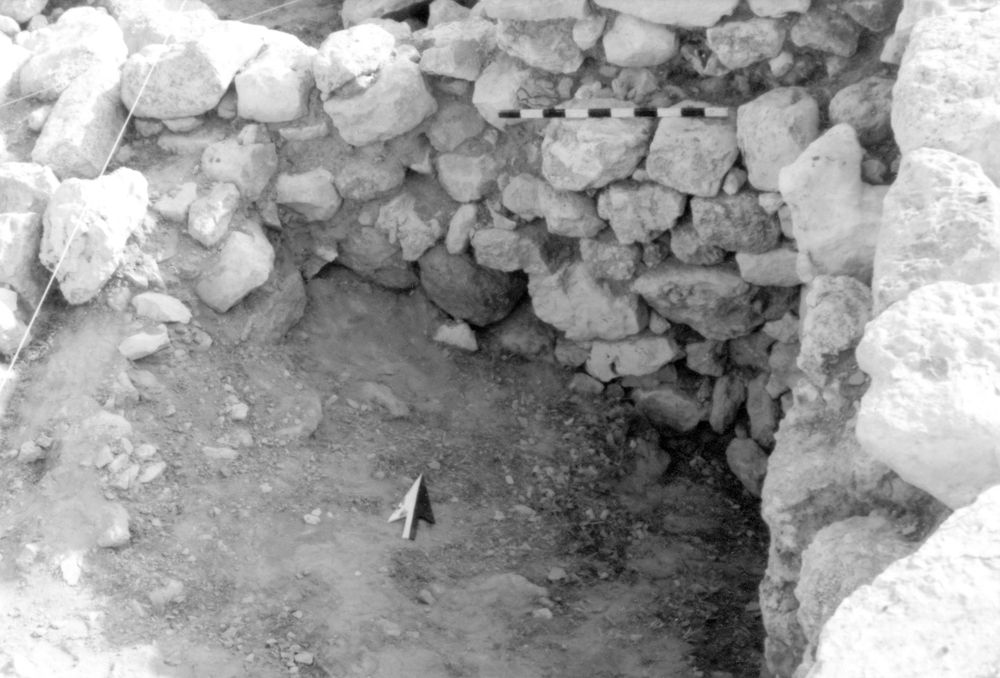

| 19 Jun, 1992 | 92A41002 | Progress |
|
| 22 Jun, 1992 | 92A41003 | Progress |
|
| 23 Jun, 1992 | 92A41004 | Progress |
|
| 24 Jun, 1992 | 92A41005 | Progress |
|
| 24 Jun, 1992 | 92A41005 | Progress |
|
| 06 Aug, 1984 | 84A50701 | Final field |
|
| 06 Aug, 1984 | 84A50701 | Final field |
|
| 06 Aug, 1984 | 84A50702 | Final field |
|
| 06 Aug, 1984 | 84A50702 | Final field |
|
| 06 Aug, 1984 | 84A50703 | Final field |
|
| 06 Aug, 1984 | 84A50703 | Final field |
|
| 06 Aug, 1984 | 84A50704 | Final field |
|
| 06 Aug, 1984 | 84A50704 | Final field |
|
