Locus A.7K40.021
General Information
Locus Type:
Architecture
Supervisor:
B. Adams
Designation:
N-S wall
Reason:
Stones in a line
Top Separation:
Bottom Separation:
Start Date:
24 Jul, 1984
End Date:
17 Jul, 2006
Interpretation
Function:
W wall of room with bin; Wall 8 was E wall
Stratigraphy remarks:
Based on levels, it could belong to the same phase as Walls 14 & 8; this would mean that L 15 in the door gave access to a second room to the W; the rubble in L 19 seems to be lying in line with L 14, poss forming a western continuation and forming a corner to the N as Wall 21
Balk:
Phase:
Stratum :
Architecture Description
Material
chert Qualifier 1:
chert Qualifier 2:
chert Qualifier 3:
chert Percent:
0
Limestone Qualifier 1:
None
Limestone Qualifier 2:
Limesotne Qualifier 3:
Limestone Percent:
100
basalt Qualifier 1:
basalt Qualifier 2:
basalt Qualifier 3:
basalt Percent:
0
nari Qualifier 1:
nari Qualifier 2:
nari Qualifier 3:
nari Percent:
0
mudbrick Qualifier 1:
mudbrick Qualifier 2:
mudbrick Qualifier 3:
mudbrick Percent:
Arch Frags:
0
Fragment Type:
Quarry:
Wall Stones
Cobble (6-25 cm) %:
5
Small Boulder (25-50cm) %:
Medium Boulder (50-75cm) %:
25
Large Boulder (75-100cm) %:
50
Very Large Boulder (>1 m) %:
0
Chinkstones
Pebble (.2-6 cm) %:
0
Cobble (6-25 cm) %:
0
Fillstones: (in Rubble-filled Construction)
Cobble (6-25 cm) %:
100
Small Boulder (25-50cm) %:
0
Medium Boulder (50-75cm) %:
0
Large Boulder (75-100cm) %:
0
Very Large Boulder (>1 m) %:
0
Brick
Length (upper):
0.0
Length (lower):
0.0
Width (upper):
0.0
Width (lower):
0.0
Depth (upper):
0.0
Depth (lower):
0.0
Dressing: (Stone Only)
Unhewn %:
5
Semi-hewn %:
Dressed %:
0
Ashlar %:
0
Bossed %:
0
Tooling (Stone Only)
Upper Width:
0.0
Lower Width:
0.0
Upper Length:
0.0
Lower Length:
0.0
Sketch:
false
Photo:
false
Mortar
Dry-laid %:
100
Clay %:
0
Mud %:
0
Cement %:
0
Plaster %:
0
Average Thickness:
0.0
Facing
Facing:
Unfaced
Color:
Construction
Style:
Boulder & Chink
Support:
Free-standing
Tendencies:
Courses
Highest Count:
0
Lowest Count:
1
Random:
false
Rows
Highest Count:
0
Lowest Count:
1
Two with Rubble:
Random:
false
Measurements
Greatest Length in meters:
3.75
Greatest width in meters:
0.84
Smallest width in meters:
0.47
Greatest Height in meters:
0.5
Lowest Height in meters:
0.15
Orientation (degrees):
6
Dip (degrees):
14
Preservation
Preservation:
Partial Superstructure: Little
Lean Direction (degrees):
0
Lean Degrees:
0
Top Foundation Level:
Remarks
Remarks:
Only top was cleared in U84; one row and course are visible; more cleared in U04
Levels
| Location | Top Level | Bottom Level |
|---|---|---|
| 8 | 912.1 | 0 |
| 14 | 911.92 | 0 |
| 19 | 911.79 | 0 |
Stratigraphy
| Abutted by | Wall | A7K40:061 |
| Sealed agnst by | Earth layer | A7K40:053 |
| Sealed agnst by | Earth layer | A7K40:054 |
| Sealed agnst by | Surface | A7K40:055 |
| Sealed agnst by | Earth layer | A7K40:056 |
| Sealed agnst by | Earth layer | A7K40:057 |
| Sealed agnst by | Earth layer | A7K40:058 |
| Sealed agnst by | Earth layer | A7K40:059 |
| Under | Earth layer | A7K40:010 |
| Under | Surface | A7K40:019 |
| Sealed agnst by | Earth layer | A7K40:020 |
| Over | Earth layer | A7K40:034 |
| Sealed agnst by | Earth layer | A7K40:034 |
| Sealed agnst by | Earth layer | A7K40:037 |
| Sealed agnst by | Earth layer | A7K40:050 |
Pails
| Number | Date | Baskets | Total | Diagnostic | Published |
|---|
Photos
| Date | Photo Number | Subject | Photo |
|---|---|---|---|
| 30 Jul, 1984 | 8414-0230 | Progress |
|

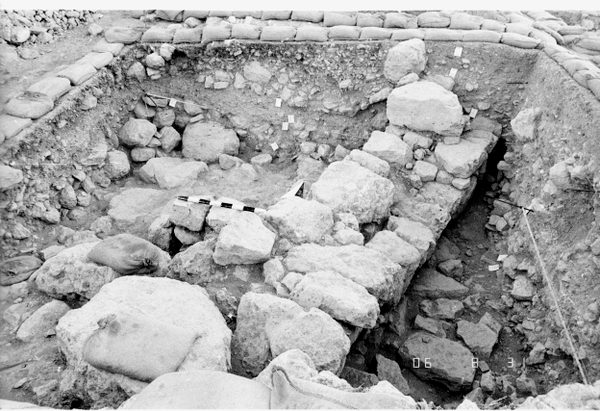

| 31 Jul, 1984 | 84A40520 | Progress |
|

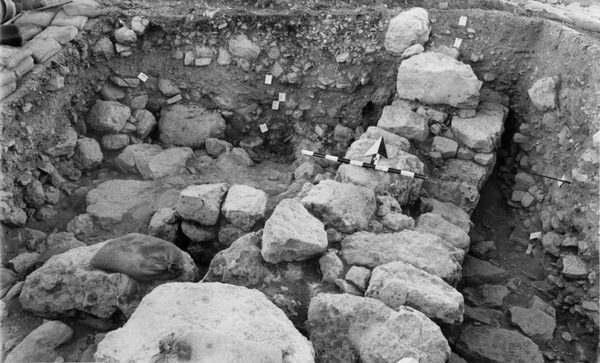

| 01 Aug, 1984 | 84A40540 | Progress, N balk |
|
| 12 Jul, 2004 | 04A40149 | Progress |
|
| 12 Jul, 2004 | 04A40155 | Surf 35 |
|
| 13 Jul, 2004 | 04A40163 | Progress |
|
| 14 Jul, 2004 | 04A40174 | Progress |
|
| 15 Jul, 2004 | 04A40185 | Progress |
|
| 05 Jul, 2004 | 04A40080 | Progress |
|
| 06 Jul, 2004 | 04A40094 | Progress |
|
| 06 Jul, 2004 | 04A40094 | Progress |
|
| 07 Jul, 2004 | 04A40109 | Progress |
|
| 08 Jul, 2004 | 04A40122 | Progress |
|
| 09 Jul, 2004 | 04A40135 | Progress |
|
| 16 Jul, 2004 | 04A40198 | Progress |
|

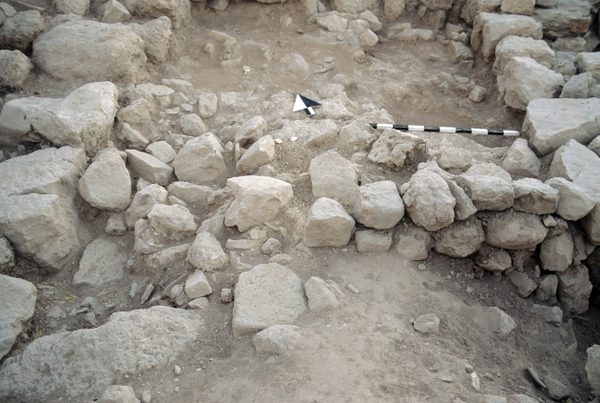

| 19 Jul, 2004 | 04A40211 | Progress |
|
| 20 Jul, 2004 | 04A40223 | Progress |
|

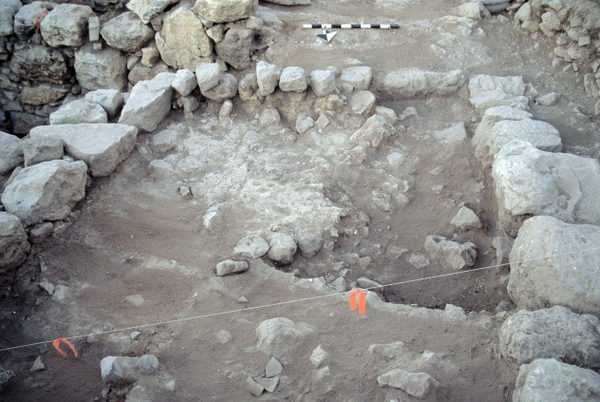

| 21 Jul, 2004 | 04A40238 | Progress |
|

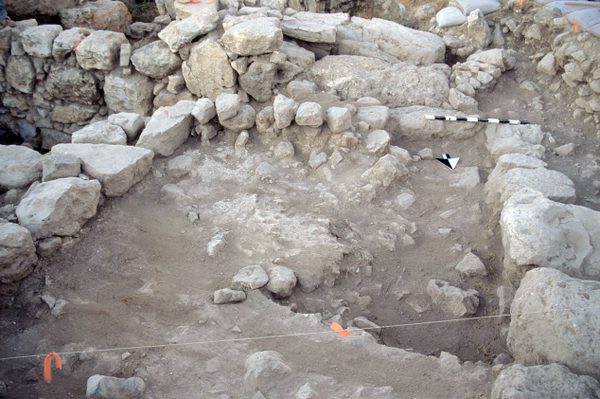

| 22 Jul, 2004 | 04A40255 | Progress |
|

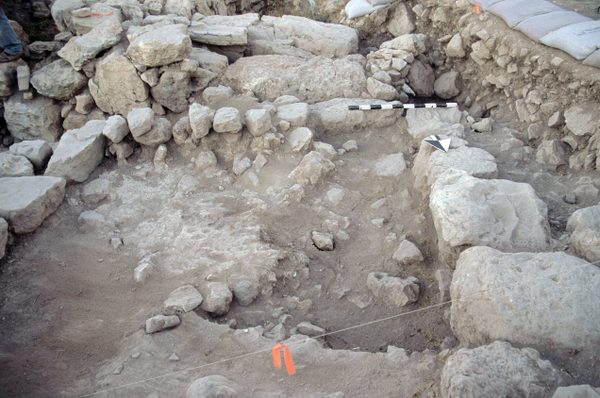

| 23 Jul, 2004 | 04A40274 | Progress |
|
| 26 Jul, 2004 | 04A40291 | Progress |
|
| 30 Jul, 2004 | 04A40360 | Final |
|
| 30 Jun, 2006 | 04A40008 | Progress |
|
| 03 Jul, 2006 | 04A40019 | Progress |
|
| 04 Jul, 2006 | 04A40036 | Progress |
|
| 05 Jul, 2006 | 04A40054 | Progress |
|
| 06 Jul, 2006 | 04A40073 | Progress |
|
| 10 Jul, 2006 | 04A40112 | Progress |
|
| 10 Jul, 2006 | 04A40131 | Progress |
|
| 11 Jul, 2006 | 04A40132 | Progress |
|
| 12 Jul, 2006 | 04A40152 | Progress |
|
| 13 Jul, 2006 | 04A40170 | Progress |
|
| 13 Jul, 2006 | 04A40171 | Progress |
|
| 17 Jul, 2006 | 04A40207 | Progress |
|

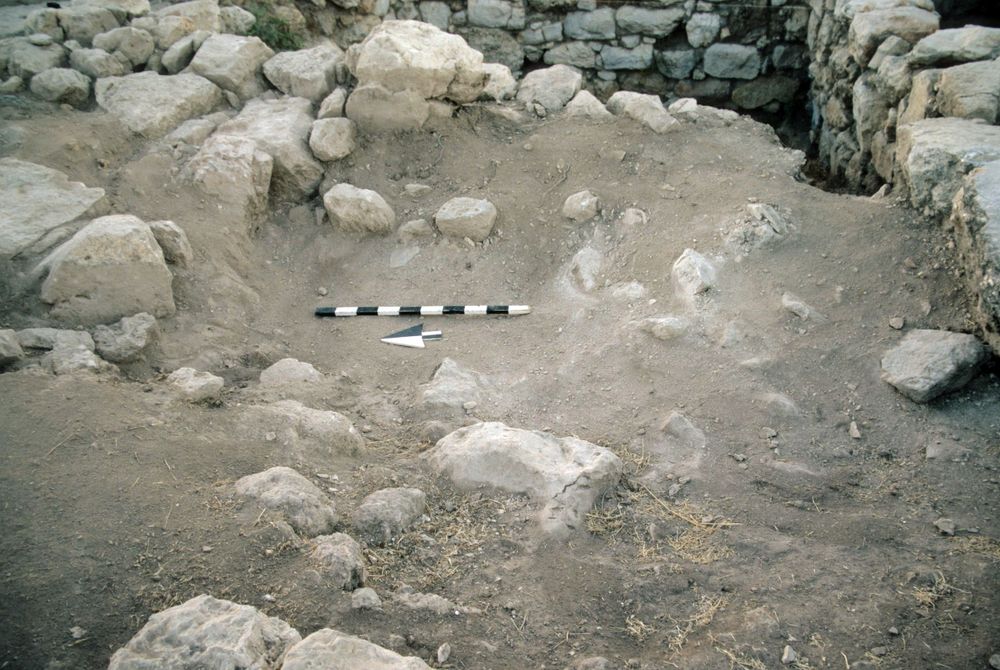

| 02 Jul, 2004 | 04A40059 | Progress |
|

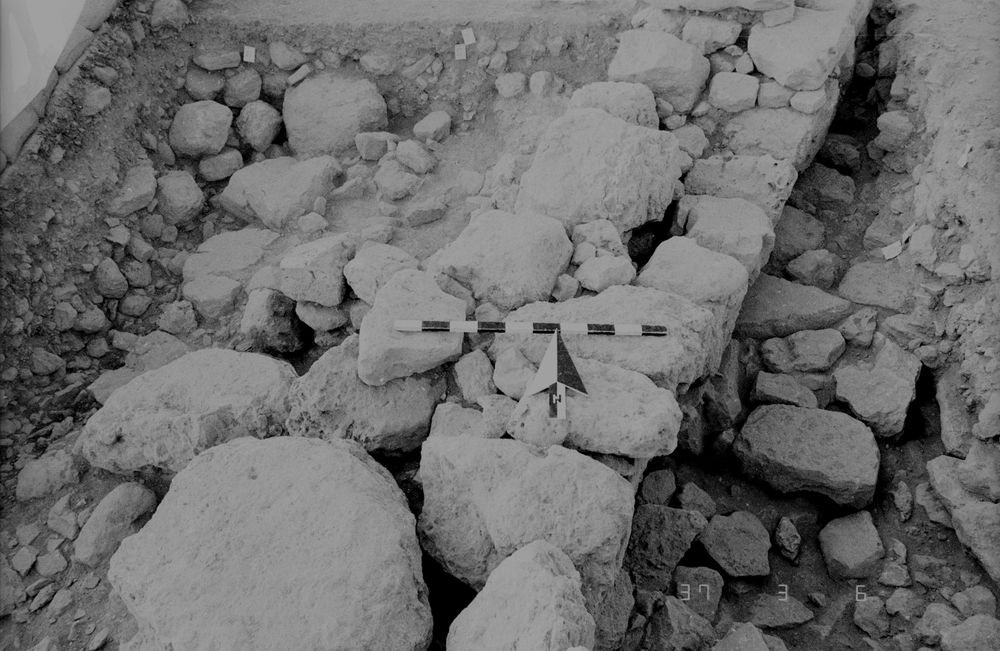

| 06 Aug, 1984 | 84A40698 | Final |
|
