Locus A.7K40.005

Architecture · N-S wall

General Information

Locus Type Architecture
Supervisor B. Adams
Designation N-S wall
Reason Visible wall-line
Top Separation Clear
Bottom Separation Very Clear
Start Date 3 August, 1984
End Date 14 July, 2004

Interpretation

Function Massive wall, forming part of a room; function of room not known butr may have been part of administrative complex
Stratigraphy remarks Partly founded on top of L 8, 14, 15, using these loci probably as foundation; against the W-face of wall 5 small Wall 17 was built; the sediment W of Wall 5 seems to be mostly rubble (L 3 & 9,); Wall 5 continues as Wall 4a in 7K51
Balk N
Phase —
Stratum —

Architecture Description

Material

chert Qualifier 1:

chert Qualifier 2:

chert Qualifier 3:

chert Percent:

0

Limestone Qualifier 1:

None

Limestone Qualifier 2:

Limesotne Qualifier 3:

Limestone Percent:

100

basalt Qualifier 1:

basalt Qualifier 2:

basalt Qualifier 3:

basalt Percent:

0

nari Qualifier 1:

nari Qualifier 2:

nari Qualifier 3:

nari Percent:

0

mudbrick Qualifier 1:

mudbrick Qualifier 2:

mudbrick Qualifier 3:

mudbrick Percent:

Arch Frags:

0

Fragment Type:

Quarry:

Wall Stones

Cobble (6-25 cm) %:

0

Small Boulder (25-50cm) %:

Medium Boulder (50-75cm) %:

40

Large Boulder (75-100cm) %:

50

Very Large Boulder (>1 m) %:

0

Chinkstones

Pebble (.2-6 cm) %:

0

Cobble (6-25 cm) %:

100

Fillstones: (in Rubble-filled Construction)

Cobble (6-25 cm) %:

0

Small Boulder (25-50cm) %:

0

Medium Boulder (50-75cm) %:

0

Large Boulder (75-100cm) %:

0

Very Large Boulder (>1 m) %:

0

Brick

Length (upper):

0.0

Length (lower):

0.0

Width (upper):

0.0

Width (lower):

0.0

Depth (upper):

0.0

Depth (lower):

0.0

Dressing: (Stone Only)

Unhewn %:

0

Semi-hewn %:

Dressed %:

0

Ashlar %:

0

Bossed %:

0

Tooling (Stone Only)

Upper Width:

0.0

Lower Width:

0.0

Upper Length:

0.0

Lower Length:

0.0

Sketch:

false

Photo:

false

Mortar

Dry-laid %:

100

Clay %:

0

Mud %:

0

Cement %:

0

Plaster %:

0

Average Thickness:

0.0

Facing

Facing:

Unfaced

Color:

Construction

Style:

Boulder & Chink

Support:

Free-standing

Tendencies:

heavy, monumental, care for stability.

Courses

Highest Count:

4

Lowest Count:

2

Random:

false

Rows

Highest Count:

0

Lowest Count:

2

Two with Rubble:

Random:

false

Measurements

Greatest Length in meters:

5.2

Greatest width in meters:

1.26

Smallest width in meters:

1.1

Greatest Height in meters:

1.4

Lowest Height in meters:

0.46

Orientation (degrees):

20

Dip (degrees):

0

Preservation

Preservation:

Partial Superstructure: Little

Lean Direction (degrees):

320

Lean Degrees:

8

Top Foundation Level:

912.05

Remarks

Remarks:

Top contained soft limestones (cobble-sized); slightly decayed; Lean measured in Loca 34 & 28 (see sketch), stones in this part seem to be tilted on one edge instead of horizontal; only the E face has been completely uncovered down to foundation level; bottom of W face not reached in U84; under NE-stubbalk the end of Wall 5 was a small part of cornerstones (uncovered in 7K50)

Levels

Location Top Level Bottom Level
10 913.42 912.2
11 912.97 912.14
17 0 912.08
21 912.71 911.84
23 912.71 912.02
28 0 911.97
33 912.91 912.29
34 913 912.18

Stratigraphy

Relationship Related to Related locus
Under Earth layer A7K40:004
Under Earth layer A7K40:003
Sealed agnst by Surface A7K40:006
Over Wall A7K40:014
Over Surface A7K40:015
Equals Wall A7K41:004
Sealed agnst by Surface A7K40:006
Sealed agnst by Surface A7K40:007
Sealed agnst by Earth layer A7K40:009
Sealed agnst by Surface A7K40:011
Sealed agnst by Earth layer A7K40:012
Sealed agnst by Earth layer A7K40:013
Sealed agnst by Surface A7K40:018
Sealed agnst by Earth layer A7K40:020
Sealed agnst by Surface A7K40:019
Over Wall A7K40:008
Over Installation A7K40:031
Over Earth layer A7K40:034
Over Earth layer A7K40:036
Over Earth layer A7K40:027

Pails

Number Date Baskets Total Diagnostic Published
33 10 July, 1984 33 32 0 0

Pottery Readings

Count Quantity modifier Form Period Period modifier Question
0 Iron
126 29 June, 2004 8 28 3 0

Pottery Readings

Count Quantity modifier Form Period Period modifier Question
1 Jar Late Iron 2/Persian
2 Cooking pot Late Iron 2/Persian
127 30 June, 2004 36 143 18 0

Pottery Readings

Count Quantity modifier Form Period Period modifier Question
1 Jar Late Iron 2/Persian
1 hy Late Iron 2/Persian
10 Bowl Late Iron 2/Persian
1 Lamp Late Iron 2/Persian
2 Bowl Early Iron 2
128 1 July, 2004 12 113 17 0

Pottery Readings

Count Quantity modifier Form Period Period modifier Question
1 Jar Late Iron 2/Persian
5 Krater Late Iron 2/Persian
3 Bowl Late Iron 2/Persian
1 Plate Late Iron 2/Persian
1 Cooking pot Late Iron 2/Persian
1 Jar Iron 1
129 4 July, 2004 2 20 3 2

Pottery Readings

Count Quantity modifier Form Period Period modifier Question
1 Krater Late Iron 2/Persian
1 Cooking pot Late Iron 2/Persian
131 2 July, 2004 29 121 10 6

Pottery Readings

Count Quantity modifier Form Period Period modifier Question
1 Jug Late Iron 2/Persian
1 Krater Late Iron 2/Persian
6 Bowl Late Iron 2/Persian
132 2 July, 2004 29 88 9 1

Pottery Readings

Count Quantity modifier Form Period Period modifier Question
1 Jar Late Iron 2/Persian
1 Jug Late Iron 2/Persian
3 Bowl Late Iron 2/Persian
1 Cooking pot Late Iron 2/Persian
1 Lamp Late Iron 2/Persian
133 2 July, 2004 11 33 5 4

Pottery Readings

Count Quantity modifier Form Period Period modifier Question
2 Bowl Late Iron 2/Persian
1 Cooking pot Late Iron 2/Persian
1 Lamp Late Iron 2/Persian
154 14 July, 2004 21 68 6 0

Pottery Readings

Count Quantity modifier Form Period Period modifier Question
1 Jar Late Iron 2/Persian
1 Juglet Late Iron 2/Persian
2 Bowl Late Iron 2/Persian
0 Late Bronze 1 bod

Photos

Date Photo Number Subject Photo
11 July, 1984 84A40183 Progress
12 July, 1984 84A40202 Progress
13 July, 1984 84A40221 Progress
16 July, 1984 84A40241 Progress
20 July, 1984 84A40334 Progress
2 August, 1984 84A40559 Progress
17 July, 1984 84A40259 Progress
24 July, 1984 84A40366 Progress
24 July, 1984 84A40369 Detail Wall 17
18 July, 1984 84A40291 Progress
19 July, 1984 84A40309 Progress
20 July, 1984 84A40424 Progress
23 July, 1984 84A40354 Progress
27 July, 1984 84A40447 Progress
30 July, 1984 8414-0230 Progress
31 July, 1984 84A40520 Progress
1 August, 1984 84A40540 Progress, N balk
3 August, 1984 84A40608 Progress, N-bulk removal)
24 July, 1984 84A40402 Progress
30 July, 1984 84A40479 N balk

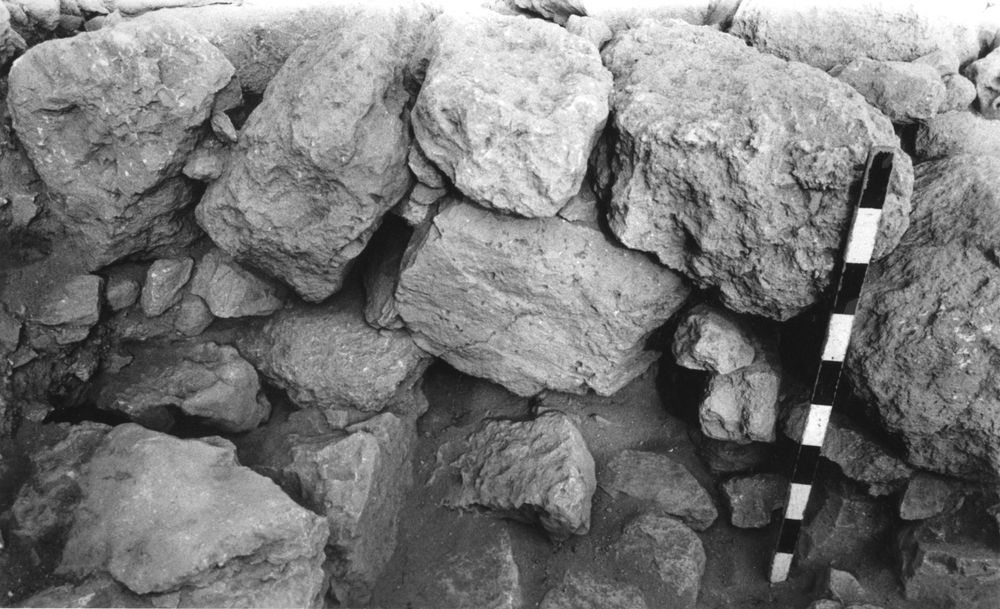

5 August, 1984 84A40672 Wall 5 elevation

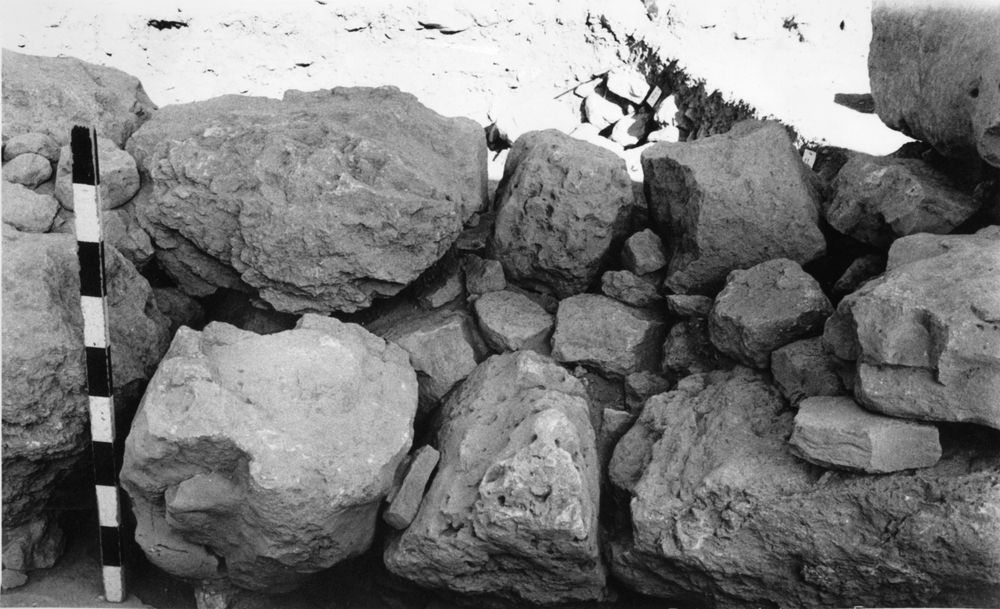

5 August, 1984 84A40673 Wall 5 elevation

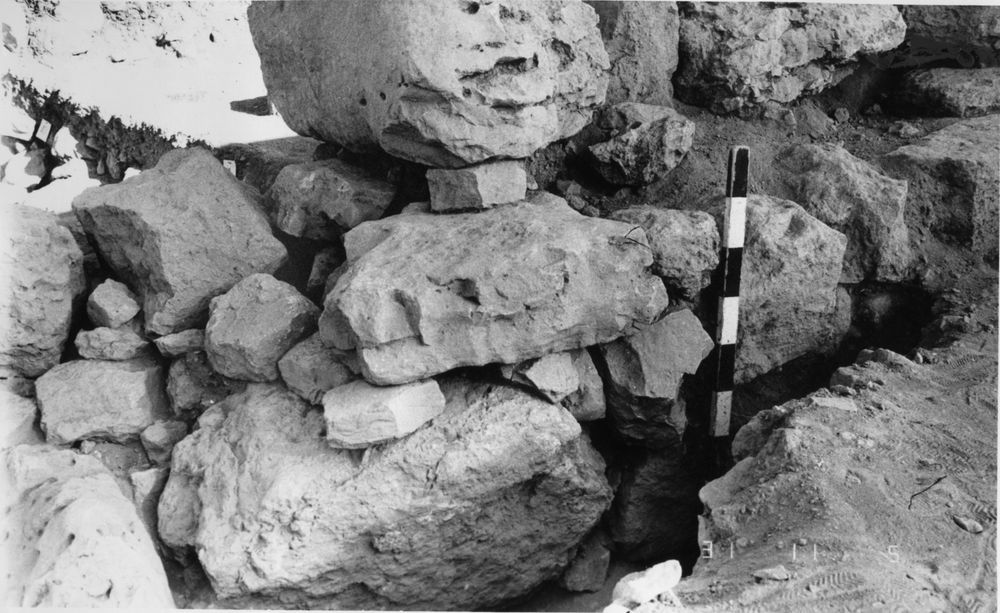

5 August, 1984 84A40674 Wall 5 elevation

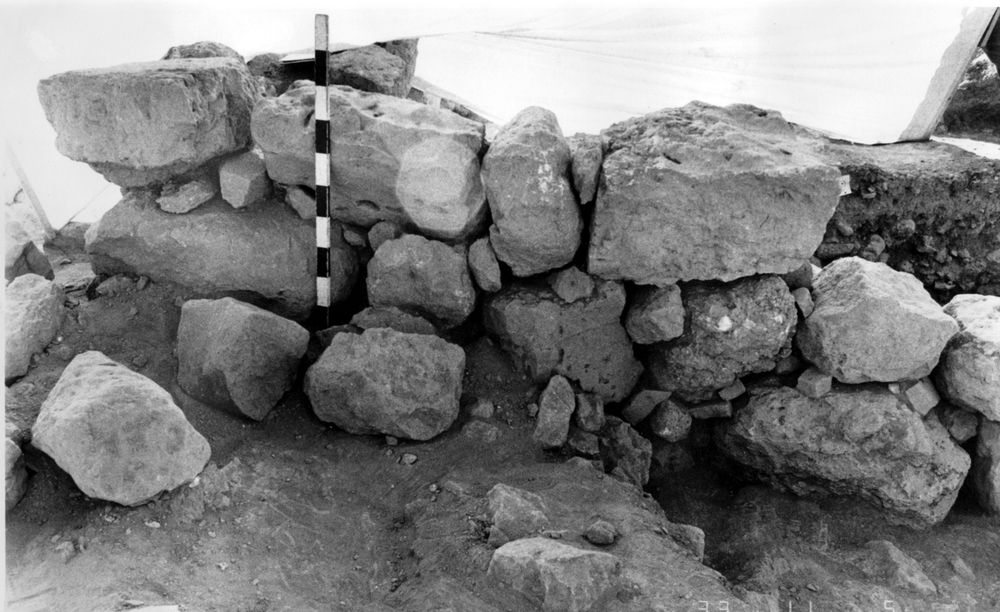

5 August, 1984 84A40675 Wall 5 elevation

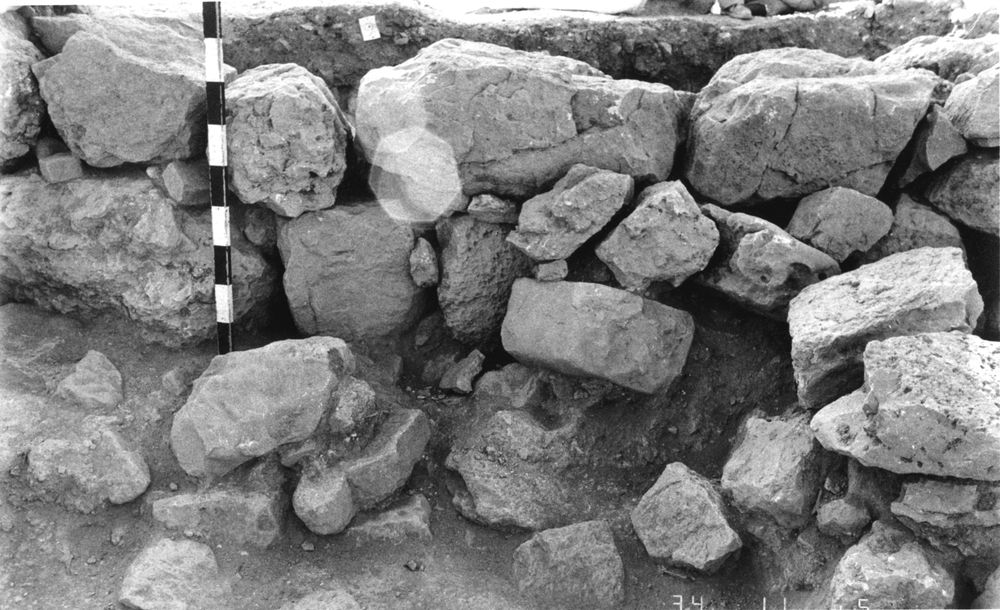

5 August, 1984 84A40676 Elevation Wall 5

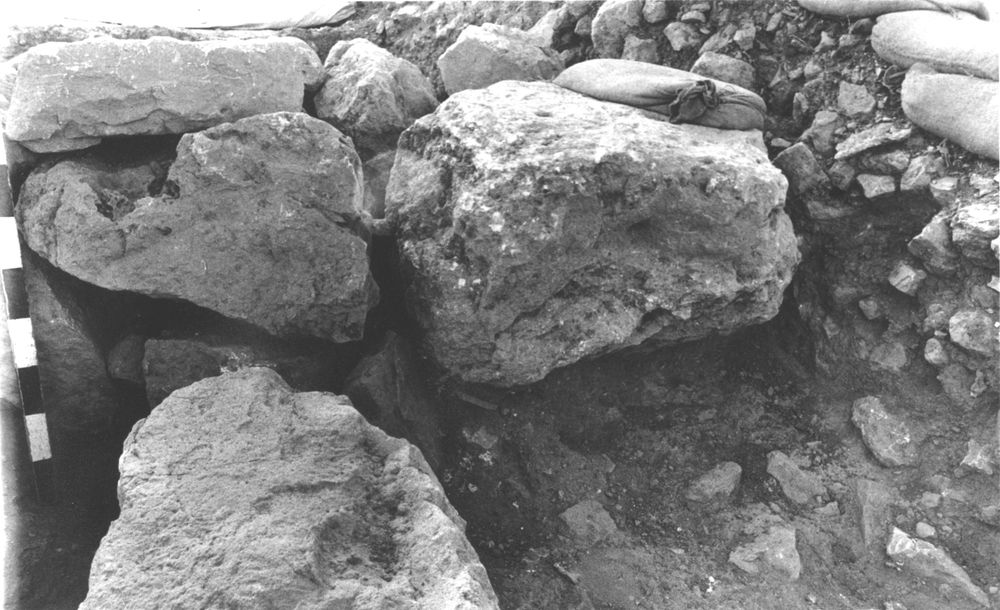

5 August, 1984 84A40677 Elevation Wall 5
12 July, 2004 04A40149 Progress
12 July, 2004 04A40155 Surf 35
13 July, 2004 04A40163 Progress
14 July, 2004 04A40174 Progress
5 July, 2004 04A40080 Progress
6 July, 2004 04A40094 Progress
7 July, 2004 04A40109 Progress
9 July, 2004 04A40135 Progress
2 July, 2004 04A40059 Progress

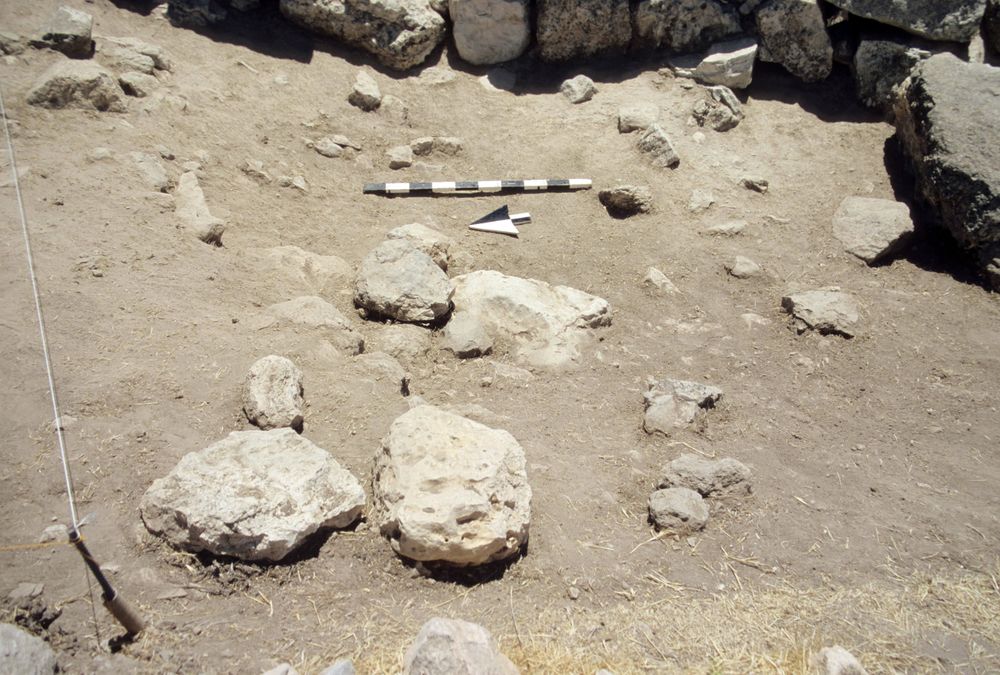

28 June, 2004 04A40010 Pre-ex

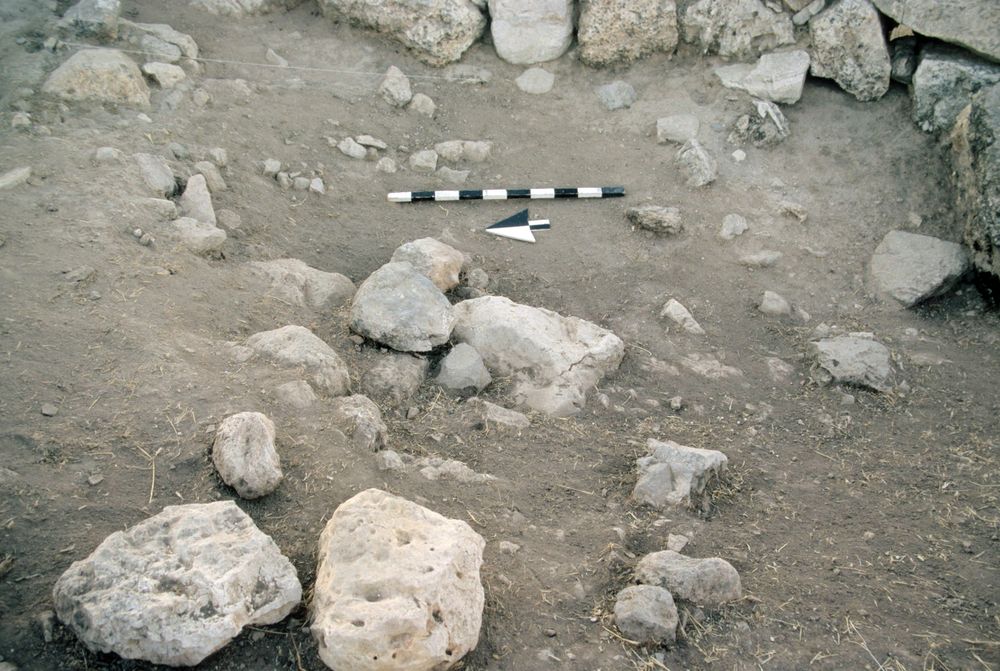

29 June, 2004 04A40016 Progress

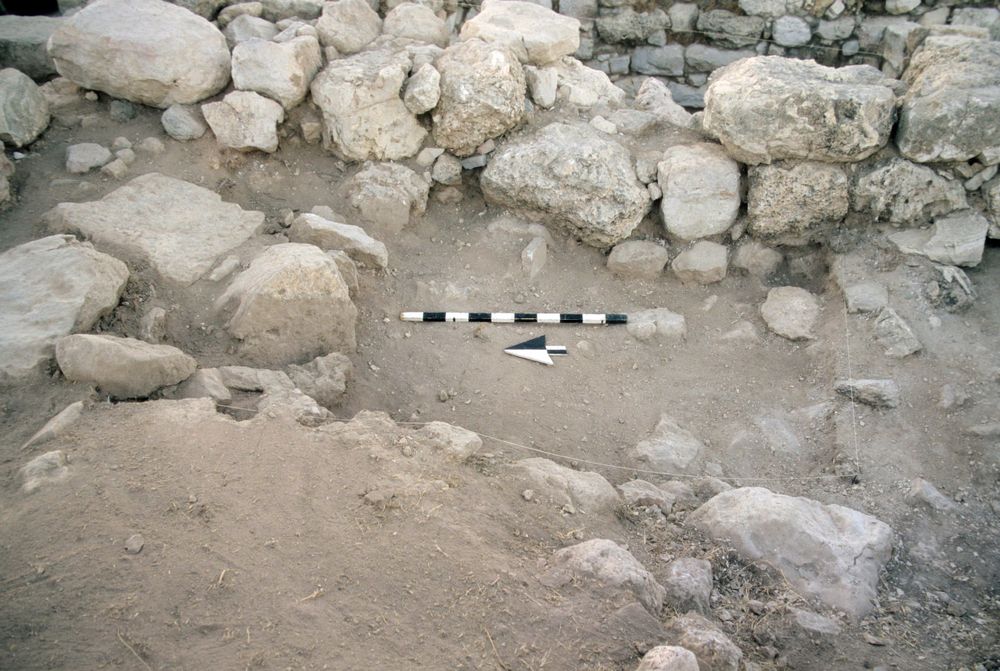

30 June, 2004 04A40028 Progress

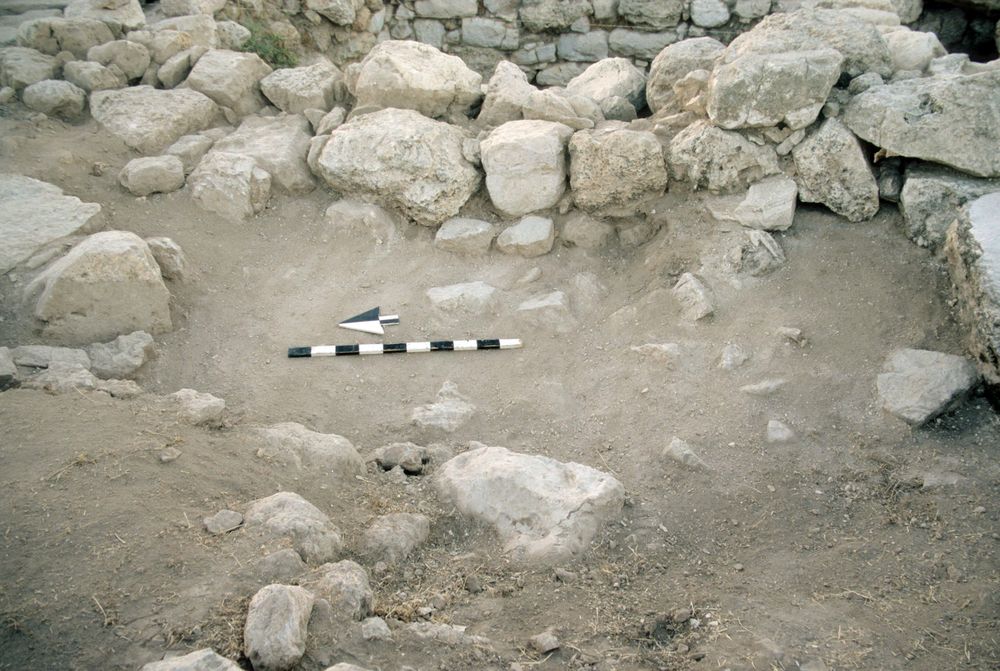

1 July, 2004 04A40045 Progress
6 August, 1984 84A40698 Final
6 August, 1984 84A50701 Final field
6 August, 1984 84A50702 Final field
6 August, 1984 84A50703 Final field
6 August, 1984 84A50704 Final field
