Locus A.7J69.015

Architecture · E-W wall

General Information

Locus Type Architecture
Supervisor C. Holloway
Designation E-W wall
Reason Several stones in a row
Top Separation Very Clear
Bottom Separation Very Clear
Start Date 19 July, 1996
End Date 5 August, 1998

Interpretation

Function Rebuild of N wall of pillared room
Stratigraphy remarks Contemp with other walls of the room: 3, 8, 13; but built a bit later
Balk
Phase
Stratum

Architecture Description

Material

chert Qualifier 1:

chert Qualifier 2:

chert Qualifier 3:

chert Percent:

0

Limestone Qualifier 1:

Hard

Limestone Qualifier 2:

Limesotne Qualifier 3:

Limestone Percent:

100

basalt Qualifier 1:

basalt Qualifier 2:

basalt Qualifier 3:

basalt Percent:

0

nari Qualifier 1:

nari Qualifier 2:

nari Qualifier 3:

nari Percent:

0

mudbrick Qualifier 1:

mudbrick Qualifier 2:

mudbrick Qualifier 3:

mudbrick Percent:

Arch Frags:

0

Fragment Type:

Quarry:

Wall Stones

Cobble (6-25 cm) %:

30

Small Boulder (25-50cm) %:

Medium Boulder (50-75cm) %:

10

Large Boulder (75-100cm) %:

0

Very Large Boulder (>1 m) %:

0

Chinkstones

Pebble (.2-6 cm) %:

0

Cobble (6-25 cm) %:

100

Fillstones: (in Rubble-filled Construction)

Cobble (6-25 cm) %:

0

Small Boulder (25-50cm) %:

0

Medium Boulder (50-75cm) %:

0

Large Boulder (75-100cm) %:

0

Very Large Boulder (>1 m) %:

0

Brick

Length (upper):

0.0

Length (lower):

0.0

Width (upper):

0.0

Width (lower):

0.0

Depth (upper):

0.0

Depth (lower):

0.0

Dressing: (Stone Only)

Unhewn %:

100

Semi-hewn %:

Dressed %:

0

Ashlar %:

0

Bossed %:

0

Tooling (Stone Only)

Upper Width:

0.0

Lower Width:

0.0

Upper Length:

0.0

Lower Length:

0.0

Sketch:

false

Photo:

false

Mortar

Dry-laid %:

100

Clay %:

0

Mud %:

0

Cement %:

0

Plaster %:

0

Average Thickness:

0.0

Facing

Facing:

Unfaced

Color:

Construction

Style:

Boulder & Chink

Support:

Buttressed

Tendencies:

Courses

Highest Count:

0

Lowest Count:

5

Random:

false

Rows

Highest Count:

0

Lowest Count:

2

Two with Rubble:

Random:

false

Measurements

Greatest Length in meters:

4.2

Greatest width in meters:

0.8

Smallest width in meters:

0.55

Greatest Height in meters:

1.3

Lowest Height in meters:

1

Orientation (degrees):

92

Dip (degrees):

0

Preservation

Preservation:

Partial Superstructure: Half

Lean Direction (degrees):

0

Lean Degrees:

0

Top Foundation Level:

Remarks

Remarks:

Levels

Location Top Level Bottom Level
2 913.98 0
2 914.13 0
3 913.98 0
4 914.16 0

Stratigraphy

Relationship Related to Related locus
Over Wall A7J69:022
Sealed agnst by Earth layer A7J69:018
Sealed agnst by Earth layer A7J69:021
Under Earth layer A7J69:001
Under Earth layer A7J69:005
Sealed agnst by Earth layer A7J69:016
Sealed agnst by Earth layer A7J69:010
Bonded to Wall A7J69:003

Pails

Number Date Baskets Total Diagnostic Published

Photos

Date Photo Number Subject Photo

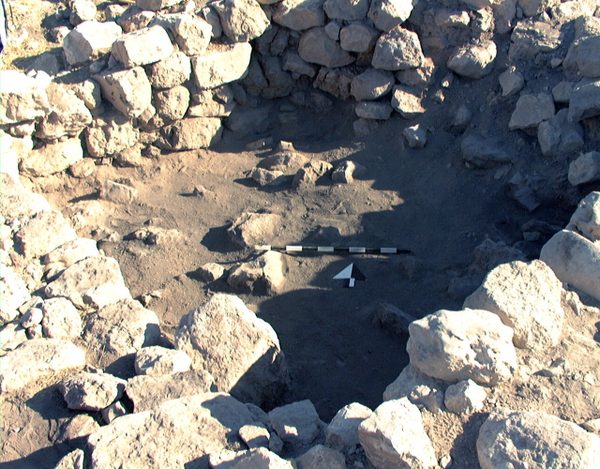

29 June, 1998 98A69021 Pre-excavation

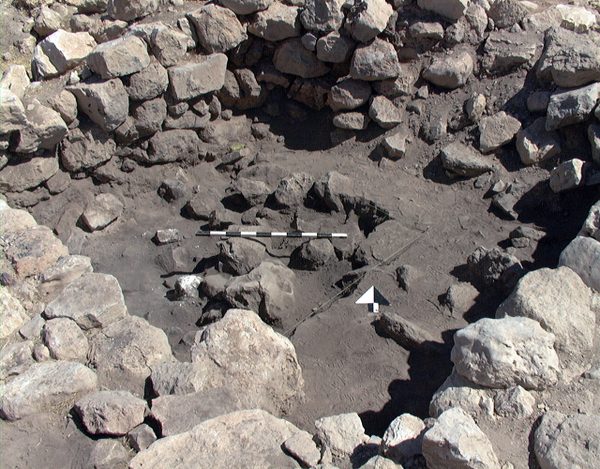

30 June, 1998 98A69028 Progress
1 July, 1998 98A69053 Progress
2 July, 1998 98A69070 Progress
9 July, 1998 98A69146 Progress

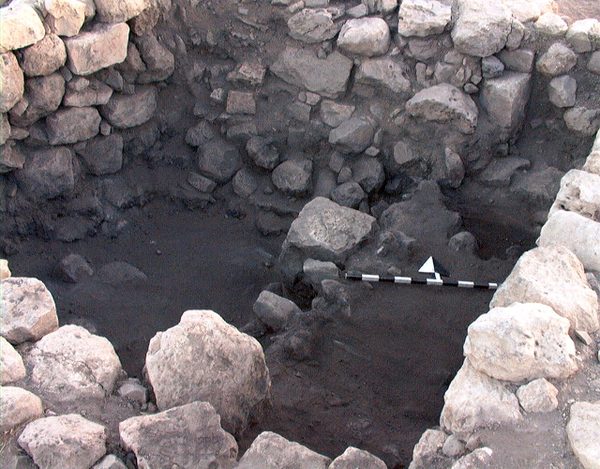

10 July, 1998 98A69165 Progress

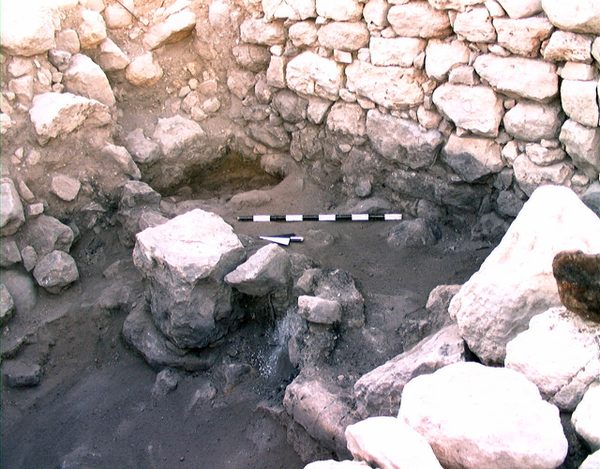

13 July, 1998 98A69184 Progress

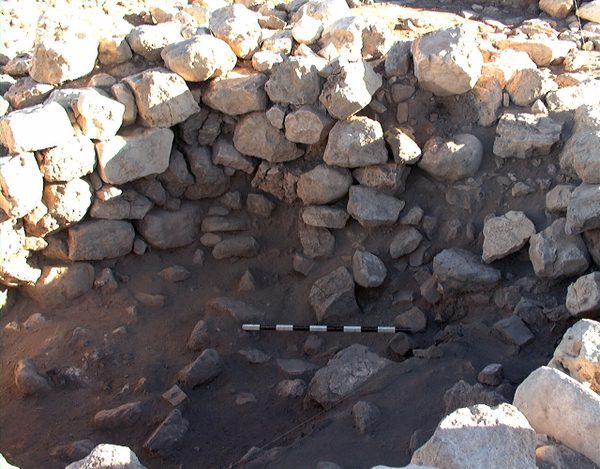

2 July, 1998 98A69063 Wall 15

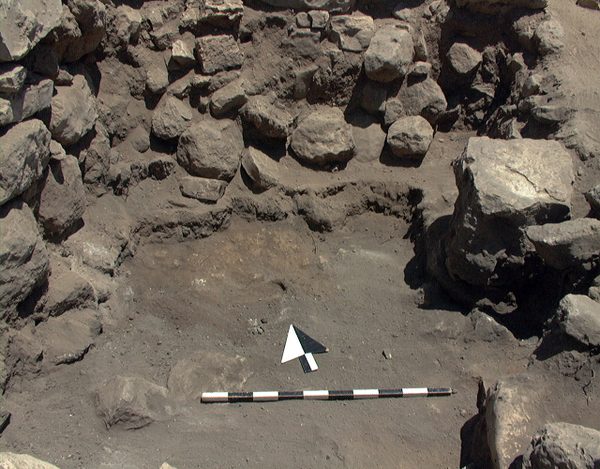

8 July, 1998 98A69132 Progress
16 July, 1998 98A69227 Progress
17 July, 1996 96A69052 Progress

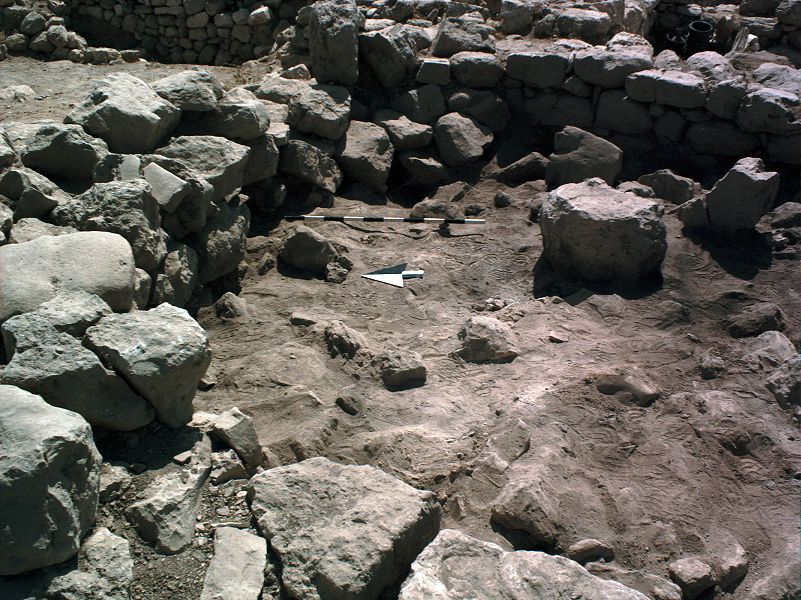

19 July, 1996 96A69054 Progress
23 July, 1996 96A69055 Progress
24 July, 1996 96A69056 Progress
26 July, 1996 96A69057 Progress
30 July, 1996 96A69061 Final
29 July, 1996 96A69059 Progress
30 July, 1996 96A69062 Final

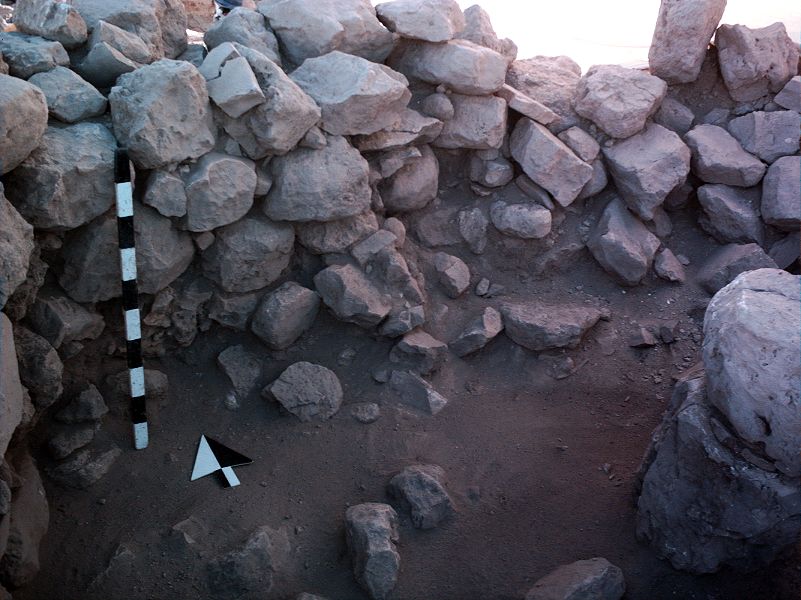

30 July, 1996 96A69063 Final
