Locus A.7J68.002
General Information
Locus Type:
Architecture
Supervisor:
D. Britten
Designation:
N-S Wall
Reason:
Stones in a line
Top Separation:
Very Clear
Bottom Separation:
Very Clear
Start Date:
28 Jun, 1996
End Date:
26 Jul, 1996
Interpretation
Function:
Top course of IR1 perimeter wall
Stratigraphy remarks:
Balk:
Phase:
Stratum :
Architecture Description
Material
chert Qualifier 1:
chert Qualifier 2:
chert Qualifier 3:
chert Percent:
0
Limestone Qualifier 1:
Hard
Limestone Qualifier 2:
Limesotne Qualifier 3:
Limestone Percent:
100
basalt Qualifier 1:
basalt Qualifier 2:
basalt Qualifier 3:
basalt Percent:
0
nari Qualifier 1:
nari Qualifier 2:
nari Qualifier 3:
nari Percent:
0
mudbrick Qualifier 1:
mudbrick Qualifier 2:
mudbrick Qualifier 3:
mudbrick Percent:
Arch Frags:
0
Fragment Type:
Quarry:
Wall Stones
Cobble (6-25 cm) %:
0
Small Boulder (25-50cm) %:
Medium Boulder (50-75cm) %:
0
Large Boulder (75-100cm) %:
0
Very Large Boulder (>1 m) %:
95
Chinkstones
Pebble (.2-6 cm) %:
0
Cobble (6-25 cm) %:
0
Fillstones: (in Rubble-filled Construction)
Cobble (6-25 cm) %:
0
Small Boulder (25-50cm) %:
0
Medium Boulder (50-75cm) %:
0
Large Boulder (75-100cm) %:
0
Very Large Boulder (>1 m) %:
0
Brick
Length (upper):
0.0
Length (lower):
0.0
Width (upper):
0.0
Width (lower):
0.0
Depth (upper):
0.0
Depth (lower):
0.0
Dressing: (Stone Only)
Unhewn %:
100
Semi-hewn %:
Dressed %:
0
Ashlar %:
0
Bossed %:
0
Tooling (Stone Only)
Upper Width:
0.0
Lower Width:
0.0
Upper Length:
0.0
Lower Length:
0.0
Sketch:
false
Photo:
false
Mortar
Dry-laid %:
100
Clay %:
0
Mud %:
0
Cement %:
0
Plaster %:
0
Average Thickness:
0.0
Facing
Facing:
Unfaced
Color:
Construction
Style:
Boulder & Chink
Support:
Tendencies:
Courses
Highest Count:
3
Lowest Count:
2
Random:
false
Rows
Highest Count:
0
Lowest Count:
0
Two with Rubble:
Random:
false
Measurements
Greatest Length in meters:
5.6
Greatest width in meters:
0
Smallest width in meters:
1.8
Greatest Height in meters:
2.07
Lowest Height in meters:
1.6
Orientation (degrees):
324
Dip (degrees):
12
Preservation
Preservation:
Partial Superstructure: Most
Lean Direction (degrees):
0
Lean Degrees:
0
Top Foundation Level:
Remarks
Remarks:
Slopes 15 degrees to WSW (240 degrees)
Levels
| Location | Top Level | Bottom Level |
|---|---|---|
| 8 | 912.28 | 911.25 |
| 9 | 912.46 | 910.86 |
| 15 | 912.61 | 911.2 |
| 20 | 911.89 | 0 |
| 21 | 912.69 | 911.2 |
| 28 | 912.13 | 911.08 |
| 29 | 912.89 | 911.29 |
Stratigraphy
| Under | Earth layer | A7J68:001 |
| Sealed agnst by | Earth layer | A7J68:001 |
| Sealed agnst by | Earth layer | A7J68:003 |
| Over | Earth layer | A7J68:003 |
| Sealed agnst by | Earth layer | A7J68:006 |
| Sealed agnst by | Earth layer | 7J68:008 |
| Abutted by | Wall | a7j68:007 |
Pails
| Number | Date | Baskets | Total | Diagnostic | Published |
|---|
Photos
| Date | Photo Number | Subject | Photo |
|---|---|---|---|
| 09 Jul, 1996 | 96A68013 | Progress |
|
| 10 Jul, 1996 | 96A68014 | Progress |
|

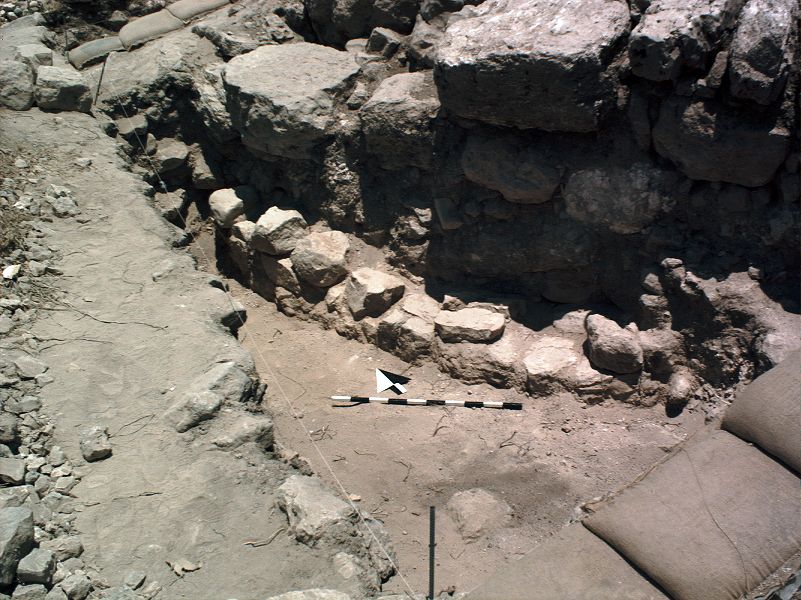

| 10 Jul, 1996 | 96A68015 | Progress |
|
| 11 Jul, 1996 | 06071108 | Progress |
|
| 15 Jul, 1996 | 96A68017 | Progress |
|
| 17 Jul, 1996 | 96A68020 | Progress |
|
| 16 Jul, 1996 | 96A68018 | Progress |
|

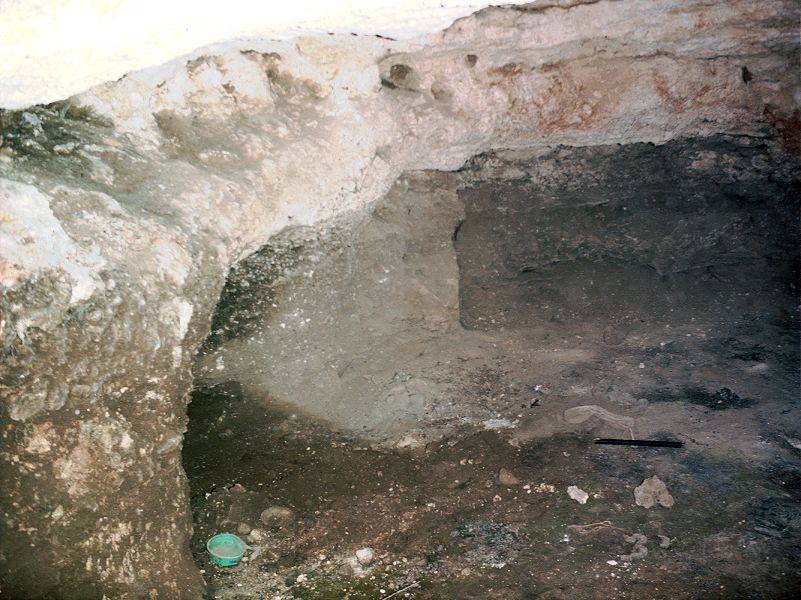

| 26 Jun, 1996 | 96K02453 | Progress |
|
| 27 Jun, 1996 | 96A68005 | Progress |
|
| 28 Jun, 1996 | 96A68006 | Progress |
|
| 01 Jul, 1996 | 96A68007 | Progress |
|
| 02 Jul, 1996 | 96A68008 | Progress |
|

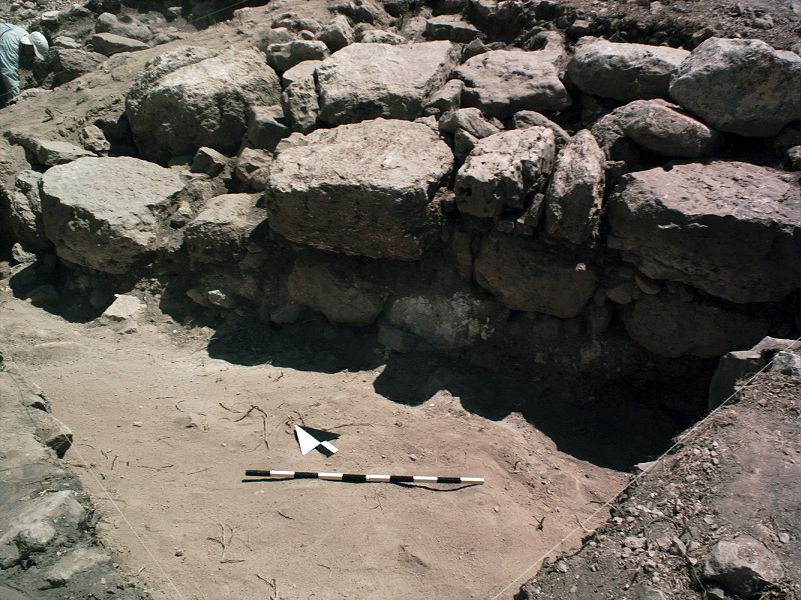

| 03 Jul, 1996 | 96A68009 | Progress |
|

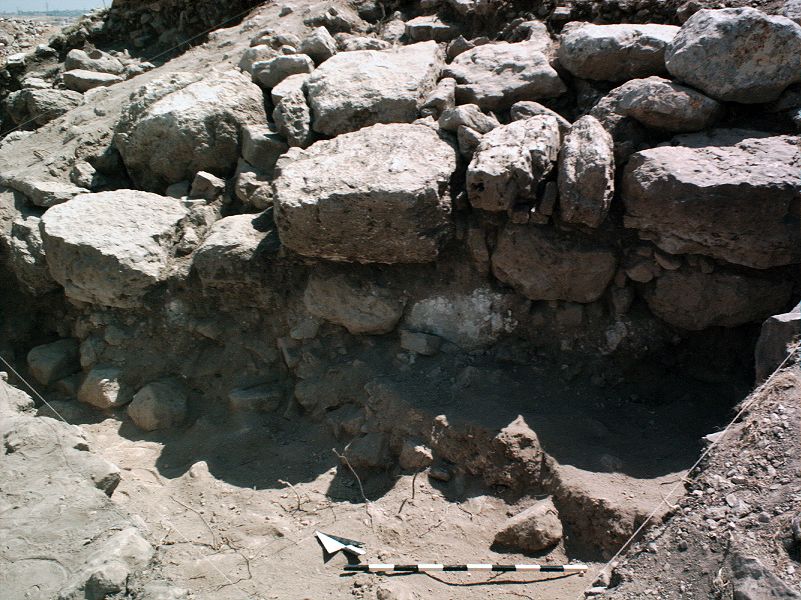

| 04 Jul, 1996 | 96A68010 | Progress |
|

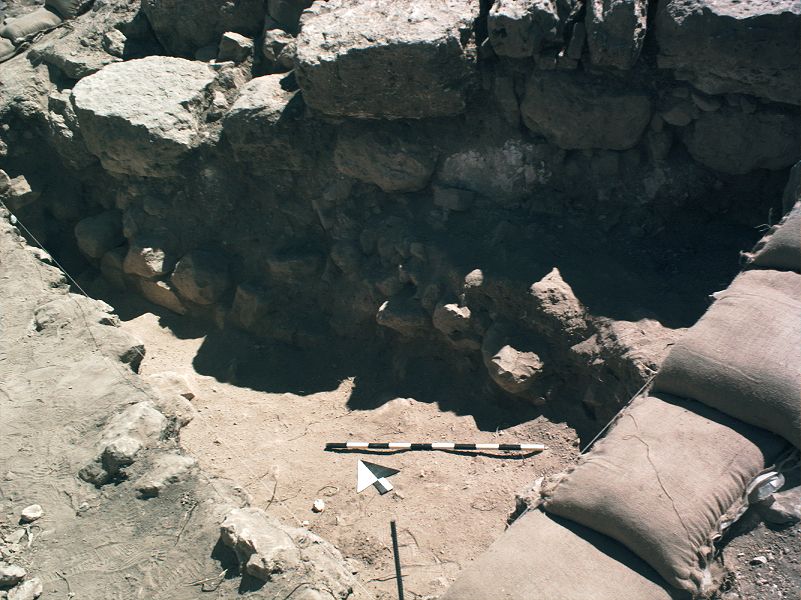

| 05 Jul, 1996 | 96A68011 | Progress |
|

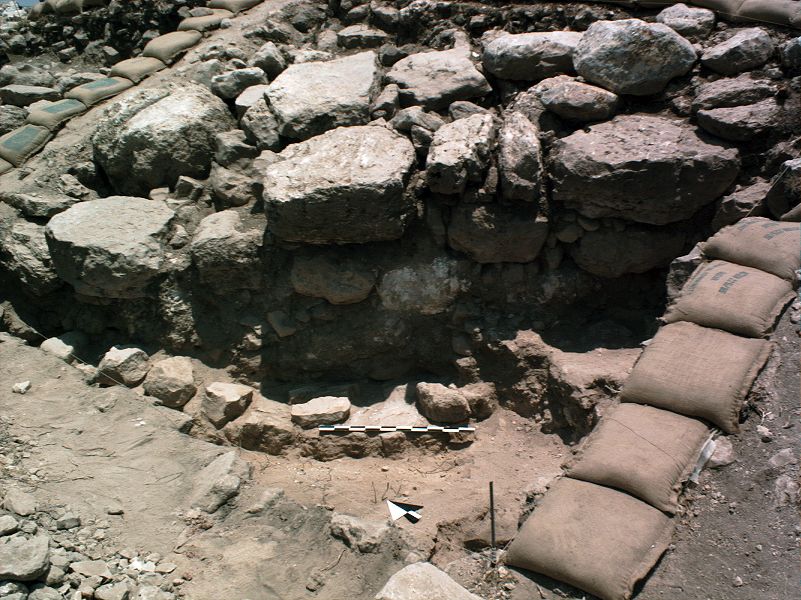

| 08 Jul, 1996 | 96A68012 | Progress |
|

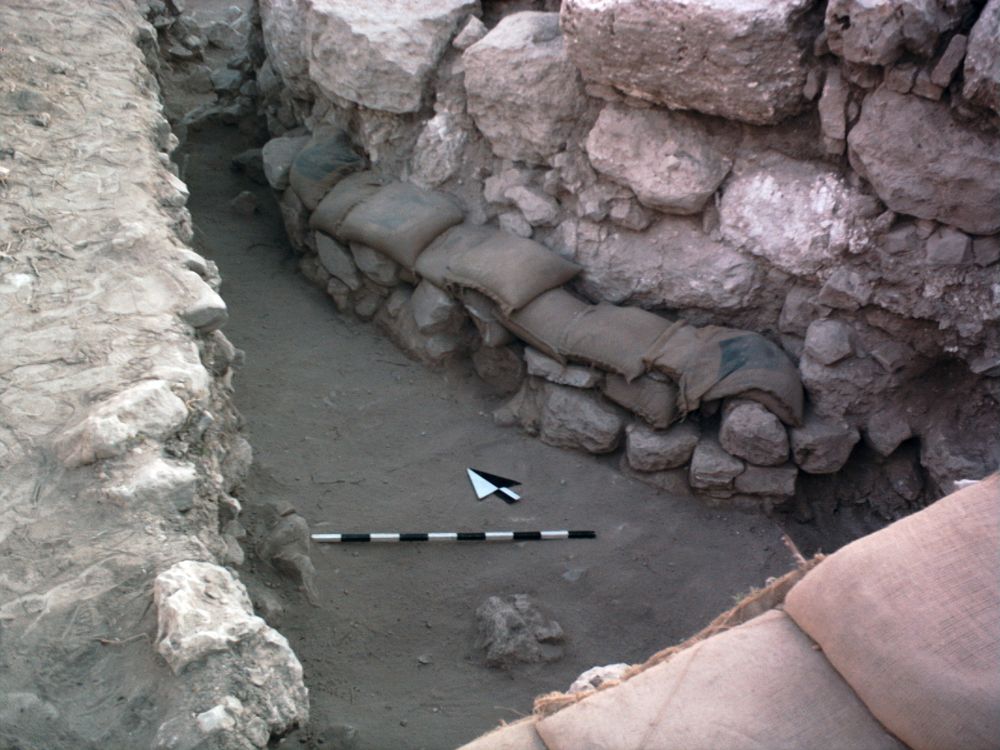

| 26 Jul, 1996 | 96A68028 | Progress |
|
| 29 Jul, 1996 | 96A68029 | Final |
|
| 29 Jul, 1996 | 96A68030 | Final |
|
| 30 Jul, 1996 | 96A68031 | Final |
|
| 30 Jul, 1996 | 96A68032 | Final |
|
| 09 Jul, 2012 | 12A68011 | BEGINNING OF SEASON |
|
| 11 Jul, 2012 | 12A68030 | PROGRESS |
|
| 12 Jul, 2012 | 12A68043 | PROGRESS |
|
| 13 Jul, 2012 | 12A68056 | PROGRESS |
|
| 13 Jul, 2012 | 12A68061 | WALL 7J68:009 |
|
| 17 Jul, 2012 | 12A68069 | PROGRESS |
|
| 18 Jul, 2012 | 12A68081 | PROGRESS |
|
| 19 Jul, 2012 | 12A68117 | PROGRESS |
|
| 20 Jul, 2012 | 12A68130 | PROGRESS |
|

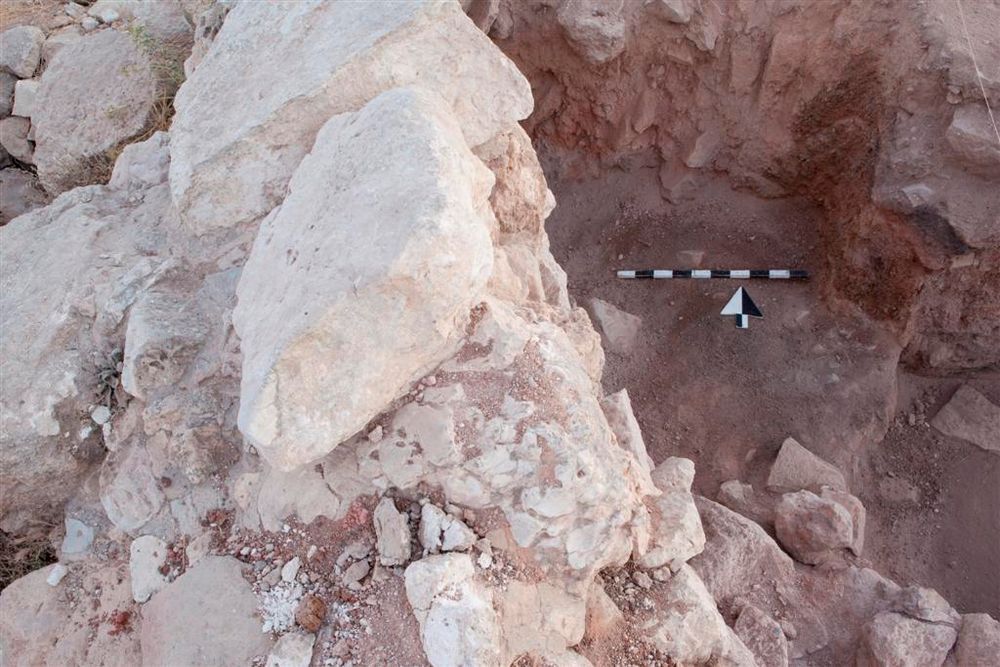

| 23 Jul, 2012 | 12A68142 | PROGRESS |
|
| 25 Jul, 2012 | 12A68174 | PROGRESS |
|
